DS18B20 Waterproof Digital Thermometer Sensor Probe
DS18B20 Waterproof Digital Thermometer Sensor Probe
Shipping calculated at checkout.
Looking to buy DS18B20 Waterproof Digital Thermometer Sensor Probe at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.

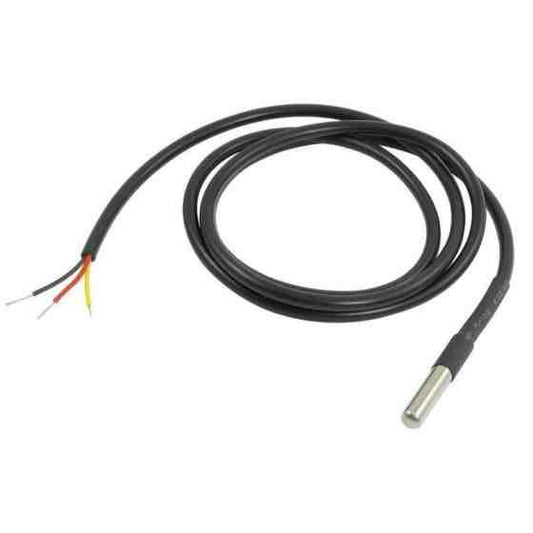

Accurately measure temperatures in wet, harsh, or submerged environments with this waterproof DS18B20 digital temperature sensor probe. Featuring a stainless-steel housing and factory-sealed cable, it delivers precise 12-bit readings over a single data wire-ideal for aquariums, hydroponics, weather stations, and industrial monitoring.
Specifications
| Sensor Chip | Dallas DS18B20 (genuine Maxim/Analog Devices) |
| Temperature Range | 55 degreesC to +125 degreesC (67 degreesF to +257 degreesF) |
| Accuracy | +/-0.5 degreesC over 10 degreesC to +85 degreesC range |
| Resolution | Programmable 9-bit to 12-bit (default 12-bit, 0.0625 degreesC) |
| Interface | 1-Wire digital protocol (single data pin + GND) |
| Operating Voltage | 3.0 V - 5.5 V DC (parasitic or external power) |
| Probe Housing | 6 mm x 50 mm stainless-steel tube, fully waterproof (IP68) |
| Cable Length | Approximately 1 meter (PVC-jacketed, 3-wire) |
| Wire Colors | Red (VCC), Yellow/White (Data), Black (GND) |
| Conversion Time | <=750 ms at 12-bit resolution |
| Unique 64-bit Address | Yes - supports multiple sensors on one bus |
| Compatibility | Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and more |
| Origin | Original / Authentic DS18B20 IC |
Why Choose DS18B20 Waterproof Digital Thermometer Sensor Probe?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of DS18B20 Waterproof Digital Thermometer Sensor Probe
- Truly Waterproof: Sealed stainless-steel probe rated IP68-safe for full submersion in water, soil, or chemical tanks.
- High Precision: +/-0.5 degreesC accuracy with 12-bit resolution gives you laboratory-grade readings without expensive equipment.
- Simple 1-Wire Interface: Only one GPIO pin (plus a 4.7 kOhm pull-up resistor) needed; chain dozens of sensors on a single bus using unique ROM addresses.
- Wide Voltage Range: Runs on 3.3 V or 5 V logic, compatible with virtually every popular microcontroller platform.
- Parasitic Power Mode: Can operate with just two wires (data + GND), simplifying long cable runs.
- Digital output-no ADC or analog calibration required
- Each sensor has a unique 64-bit serial code for multi-sensor networks
- Programmable alarm/threshold registers stored in on-chip EEPROM
- Stainless-steel probe resists corrosion in water, soil, and mild chemicals
- PVC-jacketed cable withstands bending and moderate abrasion
- Ready-to-use Arduino libraries (DallasTemperature, OneWire) and MicroPython drivers
Perfect For
- Aquarium & Fish Tank Monitor: Submerge the probe to continuously track water temperature and trigger heater/cooler relays automatically.
- Hydroponics & Smart Agriculture: Monitor nutrient solution or soil temperature to optimize plant growth conditions.
- Home Weather Station: Combine with a DHT22 humidity sensor and BMP
How to Connect (Typical Arduino Wiring)
| Red Wire (VCC) | -> 5 V (or 3.3 V) |
| Black Wire (GND) | -> GND |
| Yellow/White Wire (Data) | -> Digital Pin (e.g., D2) with a 4.7 kOhm pull-up resistor to VCC |
Install the OneWire and DallasTemperature libraries in the Arduino IDE, upload the example sketch, and you'll see temperature readings on the Serial Monitor within seconds.
Frequently Asked Questions
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your DS18B20 Waterproof Digital Thermometer Sensor Probe today and start building your next project.
