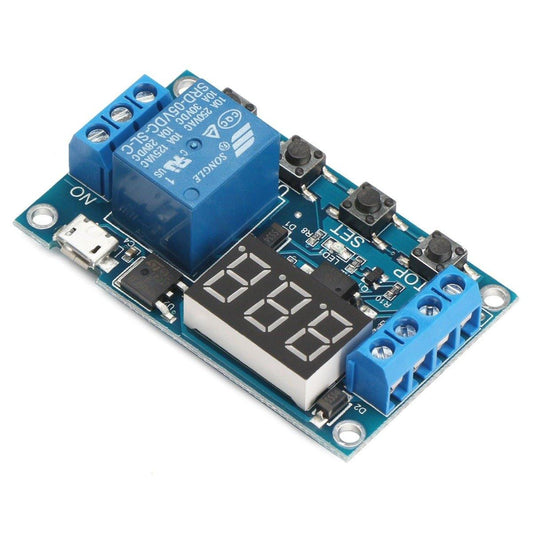

DC 6V To 30V One Way Relay Module
DC 6V To 30V One Way Relay Module
DC 6V To 30V One Way Relay Module
Control high-power devices safely and reliably with this versatile one-way relay module from The Tech Depot, Bengaluru. Designed to operate across a wide input voltage range of 6V to 30V DC, this module is ideal for switching appliances, motors, lights, and other loads in automation, IoT, and DIY projects. Features optocoupler isolation for enhanced circuit protection and screw terminals for secure, tool-friendly wiring. Fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support included.
Specifications
| Module Type | One Channel Relay Module |
| Trigger Voltage Range | DC 6V to 30V |
| Number of Channels | 1 (Single Relay) |
| Relay Contact Rating | 10A @ 250V AC / 10A @ 30V DC (typical) |
| Contact Configuration | NO (Normally Open), NC (Normally Closed), COM (Common) |
| Isolation | Optocoupler Isolated Input |
| Trigger Type | High/Low Level Trigger (configurable via jumper) |
| Indicator LEDs | Power LED + Relay Status LED |
| Connector Type | Screw Terminals for Load Side; Header Pins for Control Side |
| Board Dimensions | Approx. 50mm x 26mm x 18mm |
| Mounting | PCB mounting holes included |
| Operating Temperature | -25 degreesC to 70 degreesC |
| Origin | Original/Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Wide Input Voltage Range: Accepts 6V to 30V DC trigger/power supply, making it compatible with a broad range of battery packs, power adapters, and microcontroller systems.
- Optocoupler Isolation: Electrically isolates the control signal from the relay coil and load circuit, protecting sensitive microcontrollers like Arduino, ESP32, and Raspberry Pi from voltage spikes and back-EMF.
- High-Current Switching: Rated to switch loads up to 10A at 250V AC or 10A at 30V DC, suitable for controlling motors, solenoids, heaters, pumps, lighting, and household appliances.
- Three-Terminal Output (NO/NC/COM): Provides both Normally Open and Normally Closed contacts for maximum wiring flexibility in different switching scenarios.
- Configurable Trigger Level: Supports both high-level and low-level triggering via onboard jumper, ensuring compatibility with virtually any microcontroller logic.
- Dual Status LEDs: Onboard power indicator and relay activation LED give clear visual feedback for easy debugging and monitoring.
- The Tech Depot Screw Terminals: Heavy-duty screw terminals on the load side ensure secure, vibration-resistant connections for high-current wiring without soldering.
- Compact & Mountable: Small PCB footprint with mounting holes for easy integration into enclosures, panels, and project housings.
- Flyback Diode Protection: Built-in freewheeling diode across the relay coil suppresses inductive voltage spikes during switching, extending relay and circuit lifespan.
Why Choose This?
- 100% authentic from trusted suppliers - no clones or substandard components
- 1-5 day shipping, 7-8 day delivery from Bengaluru warehouse to most of India
- Expert technical support included for wiring guidance and project integration
- Wide 6V-30V operating range eliminates the need for dedicated voltage regulators in many setups
- Optocoupler isolation safeguards your expensive development boards and microcontrollers
- Battle-tested relay design trusted in thousands of automation and IoT deployments
Project Ideas
- Home Automation: Switch lights, fans, or appliances on and off remotely using Arduino, ESP8266, ESP32, or Raspberry Pi over Wi-Fi, Bluetooth, or a smartphone app.
- IoT Smart Plug: Build a connected smart plug that can be controlled via MQTT, Blynk, or Home Assistant for scheduling and voice-assistant integration.
- Motor Control: Toggle DC motors, water pumps, or solenoid valves in irrigation systems, aquaponics setups, or robotic mechanisms.
- Security Systems: Activate sirens, door locks, or emergency lighting when triggered by PIR motion sensors, magnetic reed switches, or alarm controllers.
- Solar & Battery Projects: Use with 12V or 24V solar panel systems to control charge routing, load switching, or battery disconnect circuits.
- Automotive Applications: Switch auxiliary lights, horns, or accessories in 12V/24V vehicle electrical systems with microcontroller-based control.
- Industrial Prototyping: Prototype PLC-style relay logic for conve
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Buy DC 6V To 30V One Way Relay Module Online in India
Purchase the DC 6V To 30V One Way Relay Module online at The Tech Depot - India's most trusted electronics components store. We deliver across all major cities including Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat. Get the best price on DC 6V To 30V One Way Relay Module with fast 1-5 day shipping from our Bengaluru warehouse. All products are 100% authentic, sourced from authorized distributors with 7-day warranty on manufacturing defects.
Looking to buy DC 6V To 30V One Way Relay Module at the best price in India? The Tech Depot offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
