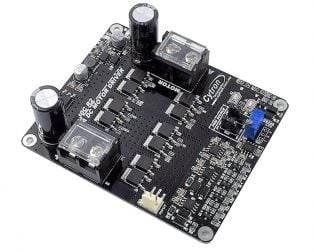

Cytron 30Amp DC Motor Driver (Peak 80Amp) MD30C R2
Cytron 30Amp DC Motor Driver (Peak 80Amp) MD30C R2
Shipping calculated at checkout.
Our team in Bengaluru is available reliable to support your journey from product selection to project completion.
The Cytron MD30C R2 is a high-performance DC motor driver capable of continuous 30-ampere operation with peak current handling of 80 amperes, designed for demanding robotics and industrial automation applications. Professional engineers and hobbyists rely on this driver for precise motor control in autonomous vehicles, robotic arms, and heavy-duty machinery where reliable bidirectional motor operation is critical. This driver solves the challenge of controlling high-current DC motors with smooth acceleration, dynamic braking, and overcurrent protection in compact form factors.
Specifications
| Specification | Details |
| Product Type | DC Motor Driver with PWM Control |
| Brand | Cytron Technologies |
| Origin | Original and Authentic |
| Continuous Current Rating | 30 Amperes |
| Peak Current Rating | 80 Amperes |
| Input Voltage Range | 6V to 30V DC |
| PWM Frequency | 20 kHz |
| Control Interface | TTL/CMOS compatible logic signals |
| Dimensions | 85mm x 72mm x 25mm |
Why Choose Cytron 30Amp DC Motor Driver (Peak 80Amp) MD30C R2?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Cytron 30Amp DC Motor Driver (Peak 80Amp) MD30C R2
- Continuous 30A Current Rating with 80A Peak Capacity: Handles sustained high-current motor loads while managing transient overcurrent conditions through intelligent current limiting protection
- Bidirectional Motor Control: Independent PWM inputs enable forward, reverse, and variable speed operation with smooth acceleration and dynamic braking capabilities
- Wide Input Voltage Range (6V-30V DC): Compatible with multiple power sources including lithium batteries, lead-acid batteries, and regulated DC power supplies used in industrial applications
- Integrated Protection Circuits: Thermal shutdown at 150 degrees Celsius, short-circuit detection, and reverse polarity protection prevent catastrophic failures in harsh operating environments
- Compact Form Factor with Efficient Heat Dissipation: 85x72mm footprint with heavy copper PCB design and optional heatsink mounting ensures reliable operation in space-constrained robotic platforms
- TTL/CMOS Compatible Control Inputs: Direct interface with Arduino, Raspberry Pi, STM32, and other microcontroller platforms without additional signal conditioning circuits
Perfect For
- Autonomous Mobile Robots and Wheeled Platforms: Drive multiple high-current DC motors for locomotion systems requiring precise speed control and bidirectional operation in competition robotics and research applications
- Robotic Arm Actuators and Manipulators: Control heavy-duty DC motors in industrial robotic arms where smooth acceleration, dynamic braking, and current limiting prevent mechanical shock and component damage
- Electric Vehicle Propulsion Systems: Manage high-current motor drives in electric scooters, go-karts, and small electric vehicles requiring reliable bidirectional control and thermal protection
- Industrial Automation and Machinery: Power conveyor belt motors, pump drives, and automated machinery requiring continuous high-current operation with integrated overcurrent and thermal protection
- Drone and Aerial Platform Motors: Control brushed DC motors in custom drone platforms and aerial systems where compact size and reliable current limiting are essential for safe operation
How to Use
Connect the motor power supply (6V-30V DC) to the input terminals, ensuring proper polarity to avoid reverse polarity damage. The driver accepts PWM control signals from your microcontroller on dedicated direction and speed pins. For Arduino implementation, configure digital pins as outputs and use analogWrite() for PWM speed control (0-255 range) while digital pins control forward/reverse direction. Connect the motor leads to the output terminals using appropriately rated wiring to handle continuous 30-ampere current draw.
For optimal performance, mount the driver on a heatsink if operating continuously above 20 amperes or in ambient temperatures exceeding 35 degrees Celsius. Implement current-limiting logic in your firmware to prevent sustained operation above 30 amperes during normal conditions, reserving the 80-ampere peak capacity for brief acceleration transients. Use separate power supplies for the driver and microcontroller logic circuits to minimize noise coupling and ensure reliable signal integrity. Always include fused protection on the main power input rated for 40-50 amperes to protect against catastrophic short-circuit conditions.
Product Overview
The Cytron MD30C R2 operates on the principle of PWM (Pulse Width Modulation) to deliver variable voltage to DC motors while maintaining efficient power delivery and thermal management. The driver features a robust H-bridge topology with integrated MOSFETs rated for continuous 30A operation, allowing bidirectional motor control with independent speed regulation. The design incorporates advanced current sensing and protection circuits that monitor real-time motor current, automatically limiting peak draw to 80 amperes during transient conditions. This intelligent current limiting prevents damage to the motor and power supply while maintaining optimal performance during startup acceleration and heavy load scenarios.
What sets the MD30C R2 apart is its integrated safety features including thermal shutdown protection, short-circuit detection, and reverse polarity protection that safeguard both the driver and connected motor. The driver accepts PWM signals from microcontrollers (Arduino, Raspberry Pi, STM32) with input voltage range of 6V to 30V DC, making it compatible with standard battery packs and industrial power supplies. The compact 85mm x 72mm form factor integrates easily into space-constrained robotic platforms while the heavy-duty screw terminals ensure secure connections for high-current applications. Built-in heat dissipation through a large copper PCB area and optional heatsink mounting capability enables reliable operation even in continuous high-load scenarios.
Frequently Asked Questions
What is the difference between continuous 30A and peak 80A ratings?
The 30-ampere continuous rating represents the maximum sustained current the driver can safely handle indefinitely without thermal shutdown. The 80-ampere peak rating indicates the maximum current the driver can handle for brief durations during motor startup or acceleration transients. Operating continuously above 30 amperes will trigger thermal protection and reduce driver lifespan. Peak current is automatically limited by the driver's internal current sensing circuits.
Can I use this driver with AC motors or only DC motors?
The Cytron MD30C R2 is designed exclusively for brushed DC motors. It cannot be used with AC motors, stepper motors, or servo motors as the H-bridge topology and PWM control scheme are specific to DC motor operation. For AC motor control, you will need an AC motor driver or VFD (Variable Frequency Drive). For stepper motors, use dedicated stepper drivers with microstepping capability.
What happens if I exceed the 30A continuous current limit?
The driver incorporates thermal shutdown protection that activates when internal junction temperature exceeds 150 degrees Celsius, typically occurring within 30-60 seconds of sustained operation above 30 amperes. When thermal shutdown activates, the driver stops supplying power to the motor and requires cooling before resuming operation. To avoid this, ensure your motor current draw remains below 30 amperes during normal operation and implement firmware-based current limiting to prevent sustained overcurrent conditions.
Is this driver suitable for PWM frequencies above 20 kHz?
The MD30C R2 is optimized for 20 kHz PWM frequency, which provides optimal balance between motor smoothness and switching losses. Operating at significantly higher frequencies (above 30 kHz) may reduce efficiency and increase heat generation due to higher MOSFET switching losses. Lower frequencies (below 10 kHz) may cause audible motor whine. For most applications, maintaining PWM frequency between 15-25 kHz provides best performance and minimal acoustic noise.
When will I receive my order?
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
