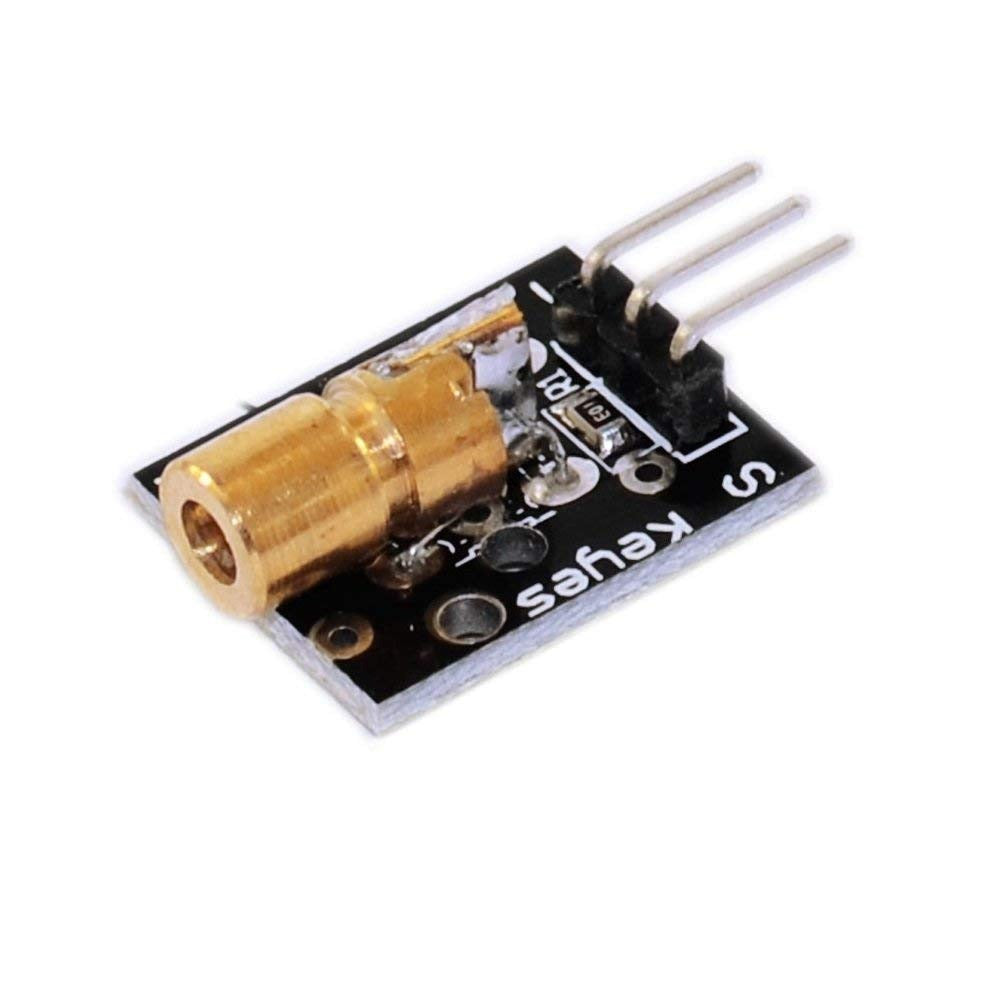

CPVKLCIE Laser Module Sensor
CPVKLCIE Laser Module Sensor
CPVKLCIE Laser Module Sensor
Premium Laser Module for Precision Detection & DIY Projects
The CPVKLCIE Laser Module Sensor is a compact, high-performance laser emitter module designed for precise line projection, object detection, and alignment applications. Emitting a focused, bright red laser dot, this module is ideal for robotics, security systems, distance measurement triggers, and educational experiments. Its simple interface and low power consumption make it a go-to component for both beginners and professionals.
Specifications
| Parameter | Detail |
| Brand | CPVKLCIE |
| Module Type | Laser Emitter / Transmitter Sensor |
| Laser Wavelength | 650 nm (Red) |
| Output Power | ~5 mW (Class IIIA) |
| Operating Voltage | 5V DC |
| Operating Current | < 40 mA |
| Beam Pattern | Focused Dot |
| Interface | 3-Pin (VCC, GND, Signal/Enable) |
| Compatibility | Arduino, Raspberry Pi, ESP32, ESP8266, STM32 |
| Dimensions | Compact cylindrical module (~15 mm x 6 mm head) |
| Mounting | PCB breakout with through-hole pins |
| Operating Temperature | -10 degreesC to +40 degreesC |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Focused Red Laser Beam - Produces a sharp, visible 650 nm red dot for precise targeting and alignment
- Low Power Consumption - Draws under 40 mA, suitable for battery-powered and portable projects
- Simple 3-Pin Interface - Direct connection to any microcontroller with VCC, GND, and Signal pins
- Digital ON/OFF Control - Enable or disable the laser programmatically via the signal pin
- Broad Microcontroller Compatibility - Works seamlessly with Arduino Uno/Nano/Mega, Raspberry Pi, ESP32, ESP8266, and more
- Compact & Lightweight - Small form factor fits easily into enclosures, robotic arms, and custom PCB assemblies
- Stable Output - Consistent beam intensity for reliable detection and triggering applications
- Pairs with LDR/Photodiode Receivers - Create laser tripwire, beam-break, and object detection systems
Why Choose This?
- 100% authentic from trusted, authorized suppliers
- 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse
- Same-day delivery available within Bengaluru
- Expert technical support included with every purchase
- Tested & verified before dispatch for quality assurance
- Beginner-friendly with extensive online tutorials and community resources
Project Ideas
Laser Tripwire / Security Alarm
Pair the laser module with an LDR or photodiode sensor on the opposite side of a doorway. When the beam is interrupted, trigger a buzzer, LED alert, or send a notification via Wi-Fi using an ESP32.
Robotics Line Guidance & Alignment
Mount the laser on a robotic arm or chassis to project a reference point for precision alignment, pick-and-place positioning, or path visualization during navigation.
Non-Contact Distance Trigger
Use the laser as a reference beam in combination with a camera or light sensor to create simple distance-estimation or object-presence detection systems for conveyor belts and automation.
Laser Target Practice Game
Build an interactive target game using multiple LDR sensors as targets. The laser module acts as the "gun," and an Arduino keeps score based on which target is hit.
Laser Communication (Li-Fi Experiment)
Modulate the laser beam at high frequency to transmit data optically to a photodiode receiver. A fascinating educational project demonstrating the principles of optical communication.
Physics & Optics Education
Demonstrate laser properties such as reflection, refraction, diffraction, and interference patterns in classroom or lab settings. Perfect for STEM learning kits.
Industrial Object Counting
Position the laser across a conveyor path with a receiver sensor to count objects passing through the beam - a simple, cost-effective industrial automation solution.
How to Connect (Arduino Example)
| Laser Module Pin | Arduino Pin |
| VCC | 5V |
| GND | GND |
| Signal (S) | Digital Pin 7 |
Sample Arduino Code
```cpp// CPVKLCIE Laser Module - Basic ON/OFF Control
const int laserPin = 7; void setup() { pinMode(laserPin, OUTPUT); Serial.begin(9600);Serial.println("Laser Module Ready");
} void loop() {digitalWrite(laserPin, HIGH); // Laser ON
Serial.println("Laser ON"); delay(2000);digitalWrite(laserPin, LOW); // Laser OFF
Serial.println("Laser OFF"); delay(1000); } ```Laser Tripwire Example (with LDR)
```cpp// Laser Tripwire with LDR Sensor
const int laserPin = 7; const int ldrPin = A0; const int buzzerPin = 8; int threshold = 500; void setup() { pinMode(laserPin, OUTPUT); pinMode(buzzerPin, OUTPUT);digitalWrite(laserPin, HIGH); // Keep laser ON
Serial.begin(9600);Serial.println("Laser Tripwire Active");
} void loop() {int ldrValue = analogRead(ldrPin);
Serial.print("LDR Value: "); Serial.println(ldrValue); if (ldrValue < threshold) {// Beam broken - intruder detected
digitalWrite(buzzerPin, HIGH); SerialFrequently Asked Questions
