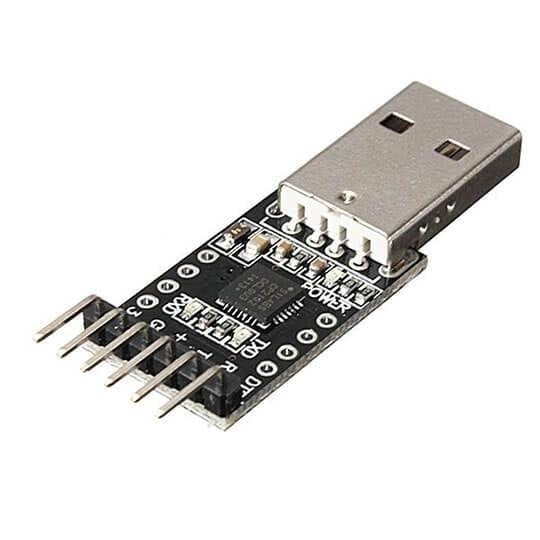

CP2102 USB to TTL
CP2102 USB to TTL
Shipping calculated at checkout.
Looking to buy CP2102 USB to TTL at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
Specifications
| Chipset | Silicon Labs CP2102 |
| Interface | USB 2.0 Full Speed to UART TTL |
| Baud Rate | 300 bps to 1 Mbps |
| Output Pins | 3.3V, 5V, TXD, RXD, GND, DTR, CTS, RTS |
| Logic Level Output | 3.3V TTL (5V tolerant input) |
| Operating Voltage | 5V (USB powered) |
| Onboard Regulator | 3.3V output available on breakout pin |
| USB Connector | Micro-USB / Mini-USB (varies by version) |
| Driver Support | Windows, macOS, Linux (Silicon Labs CP210x drivers) |
| Board Dimensions | Approx. 25 x 15 mm (compact breakout form) |
| LED Indicators | TX and RX activity LEDs |
| Type | USB to Serial Converter Module |
| Origin | Original/Authentic Silicon Labs CP2102 IC |
Why Choose CP2102 USB to TTL?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of CP2102 USB to TTL
- Genuine CP2102 Chip: Silicon Labs CP2102 ensures stable, error-free serial communication with wide OS driver support.
- Dual Voltage Output: Provides both 3.3V and 5V on breakout pins, compatible with ESP8266, ESP32, Arduino Pro Mini, STM32, and other 3.3V/5V logic boards.
- Full UART Signal Breakout: Exposes TXD, RXD, DTR, RTS, CTS, and GND pins for complete handshake and auto-reset functionality.
- DTR Pin for Auto-Programming: DTR output enables one-click firmware upload to Arduino Pro Mini, ESP8266, and similar boards without manual reset.
- Plug-and-Play USB: Recognized instantly on most operating systems - install the CP210x driver once and you're ready to go.
- High Baud Rate Support: Supports baud rates up to 1 Mbps for high-speed serial data transfer and debugging.
- TX/RX LEDs: Onboard activity LEDs give instant visual feedback during data transmission and reception.
- Compact & Breadboard-Friendly: Small form factor with standard 2.54mm pitch header pins fits directly into breadboards and prototyping setups.
- USB Bus Powered: No external power supply needed - draws power directly from the USB port.
- ESD Protection: Built-in electrostatic discharge protection on the USB interface for safer operation.
- 100% authentic Silicon Labs CP2102 IC - no counterfeit clones that cause driver headaches
CP2102 USB to TTL Converter Module
Reliable USB-to-UART bridge module powered by the Silicon Labs CP2102 chip, ideal for serial communication between your PC and microcontrollers.
Common Applications & Project Ideas
- Arduino Pro Mini Programming: Connect TXD, RXD, DTR, VCC, and GND to upload sketches directly from the Arduino IDE - the DTR pin handles auto-reset.
- ESP8266/ESP32 Firmware Flashing: Use with NodeMCU flasher or Arduino IDE to program ESP modules that lack onboard USB - wire DTR to GPIO0 for auto-flash mode entry.
- Serial Debugging & Monitoring: Open a serial monitor (PuTTY, Arduino Serial Monitor, CoolTerm) to read sensor data, debug code, and monitor real-time output from any UART device.
- Raspberry Pi Serial Console: Access the Pi's UART console for headless setup, boot debugging, and kernel log monitoring without a monitor.
- GPS Module Interface: Read NMEA data from GPS modules (NEO-6M, NEO-7M) directly on your PC for testing and data logging.
- GSM/SIM Module Communication: Send AT commands to SIM800L, SIM900A, and similar GSM modules for SMS, call, and GPRS testing.
- Bluetooth Module Configuration: Enter AT command mode on HC-05/HC-06 Bluetooth modules to change name, baud rate, PIN, and master/slave roles.
- STM32 & Bare
Frequently Asked Questions
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your CP2102 USB to TTL today and start building your next project.
