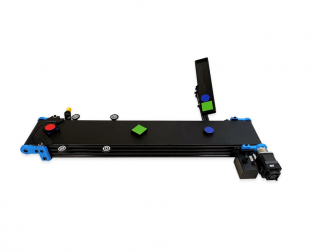

The Conveyor Belt Education Set is a comprehensive hands-on learning module designed to teach students and professionals the principles of mechanical power transmission, belt drive systems, and industrial automation. This educational kit is widely used by engineering students, vocational training centers, and technical institutions to understand real-world conveyor belt mechanics and operational dynamics. It solves the critical need for practical, interactive learning of material handling systems by providing a scaled-down, fully functional model that demonstrates torque transmission, speed ratios, load capacity analysis, and belt tension principles.
Specifications
| Specification | Details |
| Product Type | Conveyor Belt Education Set with Motor and Pulley System |
| Brand | Educational Training Equipment |
| Origin | Original/Authentic |
| Motor Power | 0.5 to 1.5 HP DC/AC Motor with Variable Speed Control |
| Belt Width | 150 to 300 mm |
| Pulley Diameter | 50 to 150 mm (Multiple Pulleys Included) |
| Belt Length | 1000 to 1500 mm |
| Frame Material | Aluminum Alloy or Mild Steel with Powder Coating |
| Maximum Load Capacity | 5 to 25 kg depending on configuration |
Why Choose Conveyor Belt – Education Set?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Conveyor Belt – Education Set
- Variable Speed Motor Control: Adjustable DC motor with 0-100% speed regulation allows students to study the relationship between motor RPM and conveyor belt velocity
- Interchangeable Pulley System: Multiple pulley sizes included to demonstrate gear ratios, mechanical advantage, and speed transmission calculations
- Adjustable Belt Tension Mechanism: Precision tensioning system with measurement scale enables students to understand belt slip, friction coefficients, and optimal tension requirements
- Incline and Decline Capability: Adjustable frame angle from 0 to 45 degrees allows study of gravitational effects on load movement and motor torque requirements
- Load Testing Platform: Integrated weighing platform with graduated scale for measuring load capacity, power consumption, and efficiency calculations
- Transparent Safety Guard: Clear acrylic or polycarbonate enclosure provides visibility while ensuring safe operation during experiments
Perfect For
- Mechanical Engineering Education: Used in polytechnic and degree-level engineering colleges to teach students about power transmission systems, belt drive theory, and industrial machinery design principles
- Vocational Training Programs: Technical institutes use this set to provide hands-on training for material handling equipment operators and maintenance technicians
- Industrial Automation Labs: Educational institutions with automation departments use it to integrate with PLC and sensor systems for teaching automated conveyor control and monitoring
- Research and Development: Engineering students conduct experiments on belt friction, wear analysis, efficiency optimization, and predictive maintenance techniques
- Skill Development Centers: ITI and skill training centers use this equipment to certify students in conveyor system operation, maintenance, and troubleshooting
How to Use
Begin by assembling the conveyor belt education set on a stable, level workbench following the provided assembly manual. Ensure all pulleys are properly aligned using the alignment jigs provided, and install the belt with appropriate tension using the tensioning mechanism. Before powering on, verify that all moving parts are covered by safety guards and that the emergency stop button is functional. Connect the motor to the power supply with proper voltage matching (AC or DC as specified) and start with the speed control at minimum setting.
Conduct experiments by gradually increasing motor speed while observing belt movement and load transportation. Use the measurement scale to record belt tension, motor current draw, and conveyor velocity. Perform load capacity tests by progressively adding weights to the platform and noting when belt slip occurs or motor stalling begins. Document all observations in a lab notebook, calculate efficiency using the formula (Output Power / Input Power x 100), and analyze how changes in pulley size, belt tension, and inclination angle affect system performance. Always allow the motor to cool for 10 minutes between consecutive high-load experiments.
Product Overview
The Conveyor Belt Education Set operates on fundamental mechanical principles where a motorized pulley system drives a continuous belt loop to transport objects from one point to another. The system demonstrates how rotational motion from an electric motor is converted into linear motion through friction-based power transmission between the driving pulley and the belt. The belt tension, pulley diameter ratios, and motor RPM directly influence the conveyor speed and load-carrying capacity. This educational model includes adjustable components that allow students to modify belt tension, change pulley configurations, and measure performance parameters in real-time, making it an invaluable tool for understanding industrial conveyor systems used in manufacturing, logistics, and material handling applications.
This education set features a robust aluminum or steel frame construction with precision-engineered pulleys, a durable rubber or synthetic belt, and an integrated electric motor with speed control capabilities. The modular design allows for multiple configuration experiments, including inclined belt operation, multi-stage pulley systems, and load variation studies. Built-in measurement points enable students to calculate mechanical advantage, efficiency, power consumption, and belt slip percentages. The system is designed for durability in educational environments with easy-to-replace belt components and adjustable mounting brackets for various experimental setups.
Frequently Asked Questions
What is the maximum load this conveyor belt education set can handle?
The maximum load capacity ranges from 5 to 25 kg depending on the motor power rating, pulley configuration, and belt tension settings. Typically, a 1 HP motor with standard pulley setup can safely transport 15-20 kg. Exceeding the rated capacity may cause belt slip, motor overheating, or mechanical damage. Always refer to the manufacturer's specifications and conduct gradual load testing to determine your specific setup's limit.
Can this education set be used for teaching PLC and automation concepts?
Yes, this conveyor belt set is compatible with PLC programming systems when equipped with optional sensors and actuators. You can integrate proximity sensors for object detection, load cells for weight measurement, and speed sensors for RPM monitoring. These inputs can be connected to a PLC controller to teach automation logic, conditional programming, and real-time monitoring of conveyor operations, making it ideal for advanced industrial automation courses.
What maintenance is required to keep the conveyor belt in optimal condition?
Regular maintenance includes weekly inspection of belt alignment and tension, monthly cleaning of pulleys and belt surfaces to remove dust and debris, and quarterly lubrication of motor bearings and pulley shafts using recommended industrial lubricants. Check for belt wear indicators and replace the belt if it shows cracks, fraying, or permanent deformation. Ensure motor brushes (if DC motor) are inspected every 6 months and replaced if worn. Keep all electrical connections dry and secure.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
