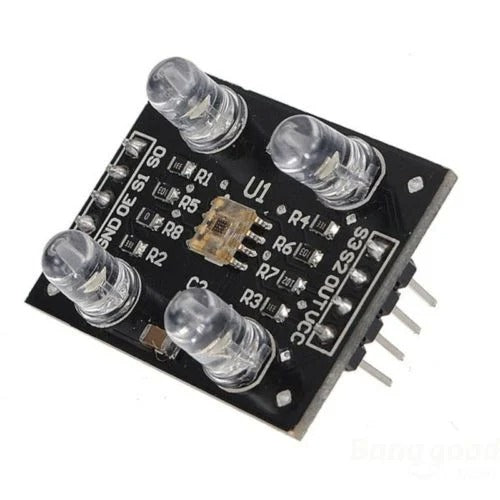

Color Sensor TCS3200 DT CS230 - Programmable RGB Light-to-Frequency Converter Module
Detect and differentiate colors with precision using the TCS3200 DT CS230 Color Sensor Module from The Tech Depot, Bengaluru. This programmable sensor converts light intensity into a frequency output, enabling accurate color recognition for sorting systems, robotics, quality control, and embedded projects. Featuring an 8x8 photodiode array with selectable red, green, blue, and clear filters, it delivers reliable color detection with a simple digital interface. Fast shipping across India with 7-day warranty on manufacturing defects and dedicated technical support.
Specifications
| Sensor IC | TCS3200 (TCS230 compatible) |
| Sensor Type | Programmable Color Light-to-Frequency Converter |
| Photodiode Array | 8 x 8 array (64 photodiodes) with 4 filter types |
| Filter Types | Red, Green, Blue, and Clear (no filter) |
| Output Type | Square wave (50% duty cycle) - frequency proportional to light intensity |
| Operating Voltage | 2.7V - 5.5V DC |
| Supply Current | Typical 2 mA |
| Output Frequency Range | 2 Hz - 500 kHz (depending on light intensity) |
| Frequency Scaling Options | 2%, 20%, 100% via S0 and S1 pins |
| Filter Selection Pins | S2 and S3 (select R, G, B, or Clear) |
| Onboard LEDs | 4 white LEDs for consistent illumination |
| Interface | Digital (TTL-compatible frequency output) |
| Compatible Platforms | Arduino, ESP32, ESP8266, Raspberry Pi, STM32, PIC, and other MCUs |
| Detection Distance | Best results at 10 mm from target surface |
| Non-linearity Error | Typically 0.2% at 50 kHz |
| Operating Temperature | -40 degreesC to +70 degreesC |
| Module Dimensions | Approx. 33 mm x 28 mm |
| Mounting | PCB module with header pin connections |
| Pin Count | 8 pins (VCC, GND, S0, S1, S2, S3, OUT, OE) |
| Origin | Original / Authentic IC |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Pin Configuration
| Pin | Label | Function |
| 1 | VCC | Power supply (2.7V - 5.5V DC) |
| 2 | GND | Ground |
| 3 | S0 | Output frequency scaling select (bit 0) |
| 4 | S1 | Output frequency scaling select (bit 1) |
| 5 | S2 | Photodiode filter type select (bit 0) |
| 6 | S3 | Photodiode filter type select (bit 1) |
| 7 | OUT | Frequency output (square wave) |
| 8 | OE | Output enable (active LOW; tie to GND to enable) |
Filter Selection Truth Table (S2, S3)
| S2 | S3 | Filter Selected |
| LOW | LOW | Red |
| LOW | HIGH | Blue |
| HIGH | LOW | Clear (No filter) |
| HIGH | HIGH | Green |
Frequency Scaling Truth Table (S0, S1)
| S0 | S1 | Output Scaling |
| LOW | LOW | Power down |
| LOW | HIGH | 2% scaling |
| HIGH | LOW | 20% scaling |
