Product Overview

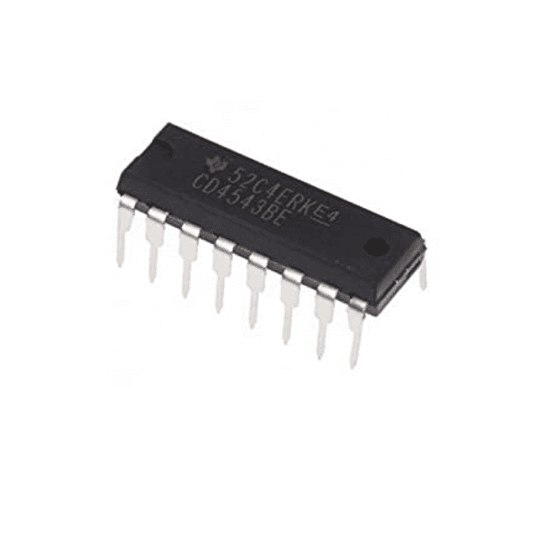

The CD4543 BCD to 7 Segment Decoder IC is a versatile integrated circuit designed to convert Binary Coded Decimal (BCD) input signals into outputs suitable for driving 7-segment display units. This CMOS logic IC is ideal for digital display applications, counters, timers, and measurement instruments.
Key Specifications
| Parameter | Details |
| Type | BCD to 7 Segment Decoder IC |
| Family | CMOS Logic (CD4000 Series) |
| Origin | Original/Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
| Input | 4-bit BCD (Binary Coded Decimal) |
| Output | 7 Segment Display Outputs |
| Operating Voltage | 3V to 15V DC |
| Logic Family | CMOS |
Why Choose This Product?
100% Authentic - Sourced from trusted, authorized distributors with verification
Fast Delivery - 1-5 day shipping, 7-8 day delivery from Bengaluru warehouse
Expert Support - 24/7 technical assistance via email & WhatsApp
Quality Assured - 7-day warranty on manufacturing defects included
Competitive Pricing - Best rates with bulk discounts available
Applications & Project Ideas
DIY & Hobbyist Projects:
- Digital clock displays
- Counter circuits
- Temperature display units
- Frequency meters
- Custom electronics projects
Professional & Industrial:
- Industrial control panels
- Test & measurement equipment
- Digital instrumentation
- Commercial display systems
Education & Learning:
- Electronics coursework
- Microcontroller interfacing projects
- Digital logic experiments
- Engineering student projects
Technical Features
- Low Power Consumption - Ideal for battery-powered applications
- Wide Supply Range - Works with 3V to 15V DC
- High Noise Immunity - Excellent for industrial environments
- Simple Interface - Easy to integrate with microcontrollers and logic circuits
- Reliable Performance - Proven CMOS technology
What's Included
CD4543 IC (1 piece or as ordered)
Technical datasheet & pinout diagram
Application notes and circuit examples
Quick reference guide 24/7 customer support accessPinout Information
- Pin Count: 16 pins (DIP package)
- Inputs: BCD input pins (A, B, C, D)
- Outputs: 7 Segment outputs (a, b, c, d, e, f, g)
- Control: Latch Enable (LE) and Blanking (RBI/RBO) pins
