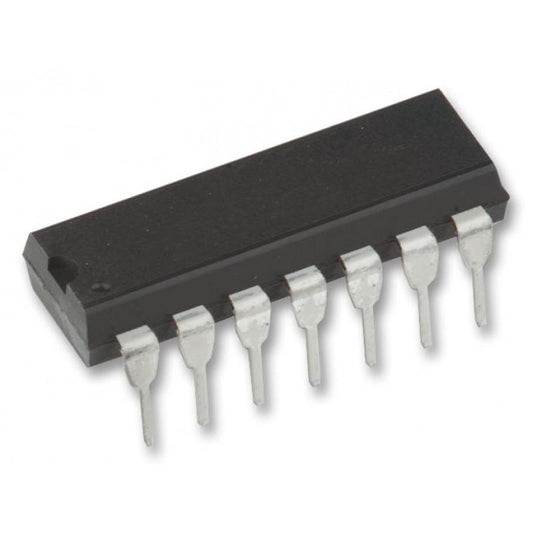

CD4093 - Quad 2-Input NAND Schmitt Trigger IC
CD4093 - Quad 2-Input NAND Schmitt Trigger IC
Shipping calculated at checkout.
Looking to buy CD4093 - Quad 2-Input NAND Schmitt Trigger IC at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
Premium quality electronics from Tech Depot India, Bengaluru.
Specifications
| Parameter | Details |
| IC Type | Quad 2-Input NAND Schmitt Trigger |
| Package | DIP-14 (Dual In-line Package) |
| Logic Family | CMOS |
| Supply Voltage | 3V to 15V |
| Operating Temperature | 0 degreesC to 70 degreesC |
| Number of Gates | 4 Independent NAND Gates |
| Hysteresis | Built-in Schmitt Trigger |
| Origin | Original/Authentic |
Why Choose CD4093 - Quad 2-Input NAND Schmitt Trigger IC?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of CD4093 - Quad 2-Input NAND Schmitt Trigger IC
Superior Noise Immunity - Schmitt trigger inputs reject noise and provide clean outputs
Wide Supply Range - Operates from 3V to 15V for flexible applications
Reliable Performance - Proven CMOS technology with low power consumption
Perfect For
Product Overview
The CD4093 is a versatile CMOS integrated circuit featuring four independent 2-input NAND gates with Schmitt trigger inputs. This component is essential for noise immunity applications, signal conditioning, and digital logic circuits. Perfect for both hobbyists and professional engineers.
Technical Features
- Schmitt Trigger Input - Built-in hysteresis for noise immunity
- CMOS Technology - Low power consumption ideal for battery-powered circuits
- Independent Gates - Four separate 2-input NAND gates in single package
- TTL Compatible - Works seamlessly with TTL logic circuits
- High Noise Margin - Excellent performance in noisy environments
DIY Electronics
- Oscillator and timing circuits
- Signal conditioning and debouncing
- Logic gates for hobby projects
- Experimental breadboard circuits
Professional Applications
- Industrial control systems
- Noise-sensitive signal processing
- Frequency counters and timers
- Alarm and sensor interface circuits
Learning & Education
- Digital electronics lab experiments
- Logic circuit design and testing
- CMOS fundamentals study
- Student engineering projects
What's Included
- 1x CD4093 IC (DIP-14 Package)
- Complete datasheet and technical documentation
- Quick start guide with pinout diagram
- Application notes and circuit examples
- Lifetime technical support access
Pin Configuration
Pin 1: Input A (Gate 1) Pin 2: Input B (Gate 1) Pin 3: Output (Gate 1) Pin 4: Input A (Gate 2) Pin 5: Input B (Gate 2) Pin 6: Output (Gate 2) Pin 7: GND Pin 8: Output (Gate 3) Pin 9: Input B (Gate 3) Pin 10: Input A (Gate 3) Pin 11: Output (Gate 4) Pin 12: Input B (Gate 4) Pin 13: Input A (Gate 4) Pin 14: VCCQuality Assurance
Tested before shipment Genuine CMOS technology RoHS compliant ESD protected packagingFrequently Asked Questions
Is this 100% authentic?
Yes, absolutely. We guarantee genuine products only.
Do you provide technical support?
Yes, we offer reliable technical support via email and WhatsApp. Our engineers can help with circuit design, troubleshooting, and application guidance.
Are bulk discounts available?
Yes! We offer attractive wholesale pricing on orders of 10 or more units. Contact us for custom quotations and volume discounts.
Can this IC work with 5V logic circuits?
Yes, the CD4093 operates perfectly with 5V supply and is fully compatible with standard TTL logic circuits.
What makes Schmitt trigger inputs special?
Schmitt triggers have built-in hysteresis, making them immune to noise and oscillations. They're ideal for signal conditioning and debouncing applications.
Is documentation included?
Yes, complete datasheets, pinout diagrams, truth tables, and application circuits are provided with every order.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your CD4093 - Quad 2-Input NAND Schmitt Trigger IC today and start building your next project.
