BTS7960B Motor Driver 43A H-Bridge Drive PWM
BTS7960B Motor Driver 43A H-Bridge Drive PWM
Shipping calculated at checkout.
Looking to buy BTS7960B Motor Driver 43A H-Bridge Drive PWM at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.

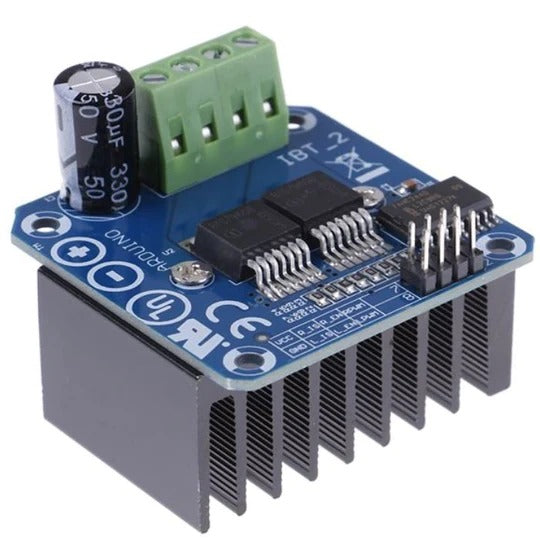

Drive high-current DC motors with confidence using the BTS7960B 43A H-Bridge Motor Driver Module. Built around dual BTS7960 half-bridge ICs from Infineon, this driver delivers up to 43A peak current with full PWM speed and direction control - ideal for robotics, electric vehicles, and heavy-duty automation projects. Available now at Tech Depot India, Bengaluru with fast shipping and expert support.
Specifications
| Driver IC | Dual BTS7960 (Infineon) Half-Bridge |
| Drive Type | Full H-Bridge (Bidirectional) |
| Operating Voltage | 5.5V - 27V DC |
| Peak Current | 43A |
| Continuous Current | 10A (without heatsink) / up to 30A (with adequate cooling) |
| Control Signal Voltage | 3.3V / 5V Logic Compatible |
| PWM Frequency | Up to 25 kHz |
| Control Inputs | RPWM, LPWM, R_EN, L_EN, R_IS, L_IS |
| Current Sense Output | Yes (analog output on R_IS and L_IS pins) |
| Built-in Protections | Over-temperature, over-current, under-voltage lockout |
| Heat Dissipation | Integrated aluminum heatsink on power MOSFETs |
| On-State Resistance (RDS_on) | ~16 mOhm (per half-bridge) |
| Board Dimensions | Approx. 50mm x 50mm x 25mm |
| Connector Type | Screw terminals (motor & power), pin header (logic) |
| Microcontroller Compatibility | Arduino, ESP32, STM32, Raspberry Pi, PIC, and more |
| Origin | Original/Authentic Components |
Why Choose BTS7960B Motor Driver 43A H-Bridge Drive PWM?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of BTS7960B Motor Driver 43A H-Bridge Drive PWM
- 43A Peak Current Handling: Dual BTS7960 ICs provide massive current capacity for driving large DC motors, power wheels, and industrial actuators without external MOSFETs.
- Full H-Bridge Bidirectional Control: Independent RPWM and LPWM inputs allow forward, reverse, braking, and coast modes with smooth PWM speed regulation up to 25 kHz.
- 3.3V & 5V Logic Compatible: Direct connection to Arduino, ESP32, STM32, Raspberry Pi, and other popular microcontrollers without level shifters.
- Integrated Current Sensing: Analog current feedback on R_IS and L_IS pins enables real-time motor current monitoring, stall detection, and closed-loop control.
- Comprehensive Built-in Protections: Over-temperature shutdown, over-current limiting, and under-voltage lockout protect both the driver and your motor from damage.
- Ultra-Low On-Resistance (~16 mOhm): Minimizes heat generation and power loss, allowing efficient high-current operation with less thermal management.
- Integrated Aluminum Heatsink: Pre-mounted heatsink on the power stage provides passive cooling for sustained operation at moderate currents.
- Enable/Disable Control: Separate R_EN and L_EN pins allow independent enabling of each half-bridge, useful for safety interlocks and emergency stops.
- Tech Depot India Screw Terminal Connections: Heavy-duty screw terminals for motor and power wiring ensure secure, low-resistance connections for high-current paths.
- Compact Modular Design: Small footprint board integrates easily into robot chassis, CNC frames, and custom enclosures.
Pin Configuration & Wiring Guide
| Pin | Function | Description |
| VCC | Logic Power | 5V supply for onboard logic circuitry |
| GND | Ground | Common ground (connect to MCU and motor power GND) |
| B+ / B- | Motor Power Input | 5.5V-27V DC battery/power supply (screw terminal) |
| M+ / M- | Motor Output | Connect to DC motor terminals (screw terminal) |
| RPWM | Right PWM Input | PWM signal for forward rotation |
| LPWM | Left PWM Input | PWM signal for reverse rotation |
| R_EN | Right Enable | HIGH to enable right half-bridge (tie HIGH if not |
