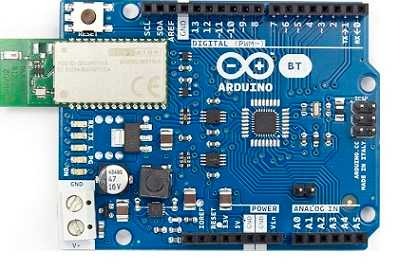

BT (Bluetooth) Module
Enable wireless communication in your electronics projects with this reliable BT (Bluetooth) module from The Tech Depot, Bengaluru. Ideal for establishing short-range wireless data transfer between microcontrollers, smartphones, and other Bluetooth-enabled devices. Fast shipping across India with full technical support and a 7-day warranty on manufacturing defects.
Specifications
| Type | Bluetooth Wireless Communication Module |
| Bluetooth Version | Bluetooth 2.0/2.1+EDR (Classic) |
| Frequency Band | 2.4 GHz ISM Band |
| Communication Range | Up to 10 meters (Class 2) |
| Interface | UART Serial (TX/RX) |
| Default Baud Rate | 9600 bps (configurable via AT commands) |
| Operating Voltage | 3.3V - 5V DC |
| Operating Current | ~30-40 mA (active pairing/transmitting) |
| Supported Profiles | SPP (Serial Port Profile) |
| Modulation | GFSK (Gaussian Frequency Shift Keying) |
| Antenna | Onboard PCB trace antenna |
| Configurable Parameters | Device name, PIN, baud rate, role (master/slave) |
| Pin Count | 4-6 pins (VCC, GND, TX, RX, STATE, EN) |
| Dimensions | Compact breakout board form factor |
| Operating Temperature | -20 degreesC to +75 degreesC |
| Compatibility | Arduino, ESP32, Raspberry Pi, STM32, PIC, and most UART-capable MCUs |
| Origin | Original / Authentic Component |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Simple UART Interface: Connect using just TX and RX pins for seamless serial communication with any microcontroller
- AT Command Configuration: Easily configure device name, pairing PIN, baud rate, and master/slave role using standard AT commands
- Transparent Data Mode: Once paired, the module acts as a wireless serial cable, transparently passing data between devices
- Stable 2.4 GHz Wireless Link: Reliable short-range communication up to 10 meters with automatic reconnection support
- Low Power Consumption: Draws minimal current, making it suitable for battery-powered portable projects
- Smartphone Compatible: Pairs with Android devices and Bluetooth serial terminal apps for wireless control and monitoring
- Onboard LED Indicator: Visual feedback for pairing status - fast blink when searching, steady/slow blink when connected
- Breadboard Friendly: Compact breakout board with standard pin headers for easy prototyping
- Wide Voltage Tolerance: Operates on both 3.3V and 5V logic systems without requiring additional level shifting on most boards
Why Choose This Bluetooth Module?
- 100% authentic module sourced directly from trusted and authorized distributors
- 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse to most locations across India
- Expert technical support included - get help with wiring, AT commands, and integration
- Proven reliability across thousands of hobbyist and professional projects
- Comprehensive online resources, tutorials, and community support available
- Perfect balance of simplicity, cost-effectiveness, and wireless performance
How It Works
The BT (Bluetooth) module functions as a wireless UART bridge. It replaces a physical serial cable between two devices with a Bluetooth wireless link. The module receives serial data on its RX pin from your microcontroller, transmits it wirelessly over Bluetooth to a paired device, and vice versa. When powered on, the module enters discoverable mode, allowing smartphones or other Bluetooth devices to find and pair with it using a default PIN (typically 1234 or 0000). Once paired, the connection is transparent - any data sent to the module's serial input appears at the paired device's serial output, enabling real-time bidirectional communication. Configuration is done by entering AT command mode, where you can change the device name, PIN code, baud rate, and operational role.
Pin Configuration
| Pin | Label | Function |
| 1 | VCC | Power supply input (3.3V - 5V DC) |
| 2 | GND | Ground connection |
| 3 | TX | Serial data transmit (connect to MCU RX) |
| 4 | RX |
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
