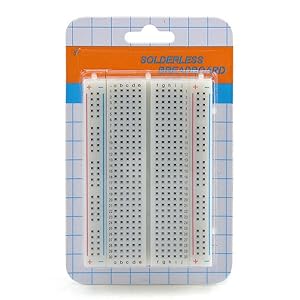

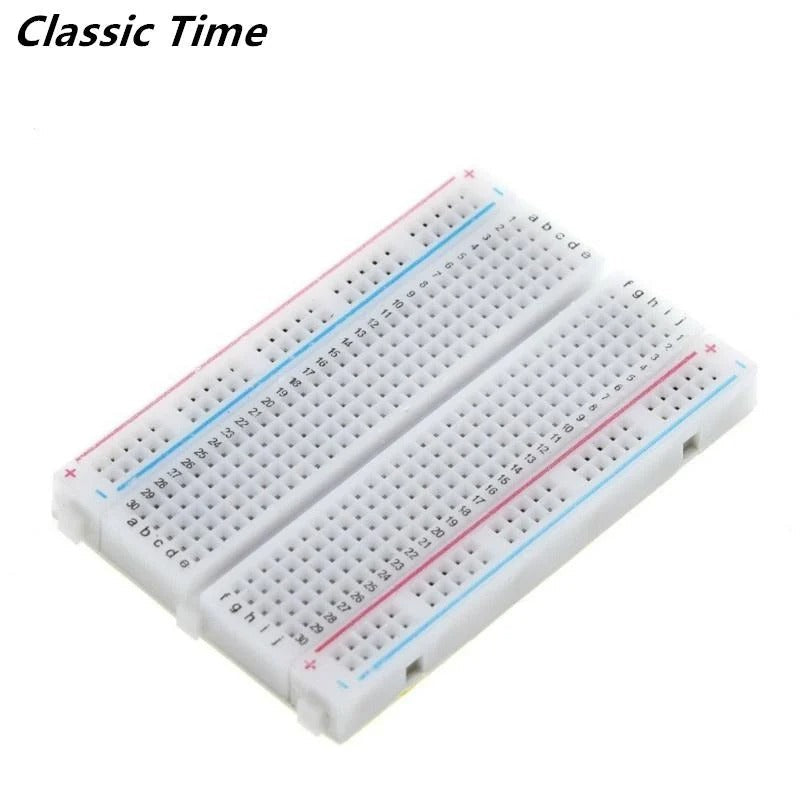

Bread board (400 point)
Bread board (400 point)
Shipping calculated at checkout.
Looking to buy Bread board (400 point) at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
Specifications
| Type | Solderless Breadboard |
| Tie Points | 400 (half-size) |
| Dimensions (approx.) | 83 x 55 x 10 mm |
| Hole Spacing | 2.54 mm (standard 0.1 pitch) |
| Distribution Buses | 2 power rails (+ and ) |
| Terminal Strips | 30 rows x 5 columns x 2 sides (300 tie points) |
| Compatible Wire Gauge | 20-29 AWG solid-core jumper wire |
| Contact Material | Phosphor bronze / nickel-plated spring clips |
| Base Material | ABS plastic with adhesive backing |
| Interlocking | Dovetail slots on all four sides for multi-board expansion |
| Rated Voltage | <= 36 V DC |
| Contact Resistance | <= 20 mOhm per contact point |
| Insertion Life | ~50,000 cycles per hole |
| Operating Temperature | 20 degreesC to +80 degreesC |
| Weight | ~30 g |
| Colour | White (translucent ABS) |
| Origin | Original / Authentic |
Why Choose Bread board (400 point)?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Bread board (400 point)
- 400 Tie Points: 300 terminal points plus 100 power-rail points - enough space for small-to-medium circuits while keeping your desk compact.
- Solderless Prototyping: Simply push in components and jumper wires; no soldering iron, flux, or desoldering needed. Reuse the board endlessly.
- Standard 2.54 mm Pitch: Accepts DIP ICs, resistors, capacitors, LEDs, transistors, sensors, and virtually all through-hole components.
- Interlocking Dovetail Design: Snap multiple 400-point boards together side-by-side or top-to-bottom for larger projects.
- Self-Adhesive Backing: Peel-and-stick pad lets you mount the breadboard onto an acrylic base, robot chassis, or enclosure.
- Colour-Coded Power Rails: Red (+) and blue () markings for quick, error-free power bus wiring.
- Durable Spring Contacts: Phosphor bronze clips provide low contact resistance and reliable grip across thousands of insertion cycles.
- Lightweight & Portable: At just ~30 g, toss it into a laptop bag or tool kit for on-the-go prototyping.
- 100% authentic from trusted component suppliers - no flimsy knock-offs with loose contacts.
- Perfect half-size form factor when a full 830-point board is overkill.
- Expandable: connect two 400-point boards to create an 800-point workspace.
Perfect For
- LED Blink with Arduino / ESP32: Wire an LED and resistor on the breadboard, connect to a microcontroller, and write your first "Hello World" of electronics.
- 555 Timer Circuits: Build astable and monostable multivibrators for blinking lights, tone generators, or PWM motor control.
- Sensor Prototyping: Test temperature (LM35, DHT11), light (LDR), or motion (PIR) sensors before committing to a PCB.
- Op-Amp Signal Conditioning: Prototype amplifier, comparator, or filter stages with standard DIP op-amps like LM358 or LM741.
- Voltage Regulator Circuits: Quickly verify 7805 / AMS1117 regulator setups with decoupling capacitors before powering a project.
- I2C / SPI Module Testing: Hook up OLED displays, EEPROM chips, or ADC modules to verify communication before final assembly.
- Classroom Demonstrations: Teachers can set up Ohm's law, Kirchhoff's law, or logic-gate experiments in minutes.
How to Use
Breadboard - 400 Tie Points
Build, test, and prototype circuits without soldering using this compact 400-point breadboard. A must-have foundation tool from Tech Depot India, Bengaluru - ideal for students, hobbyists, and engineers.
