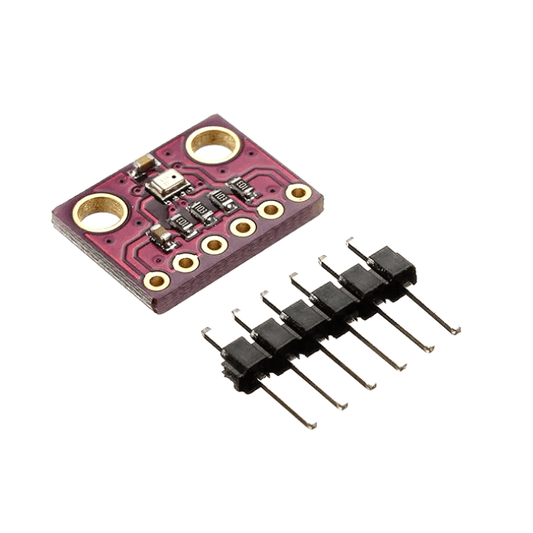

BMP280 Sensor Module
BMP280 Sensor Module
Shipping calculated at checkout.
Looking to buy BMP280 Sensor Module at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
Specifications
| Sensor Chip | Bosch BMP280 |
| Measurement Parameters | Barometric Pressure & Temperature |
| Pressure Range | 300 - 1100 hPa |
| Pressure Accuracy | +/-1 hPa (typical) |
| Pressure Resolution | 0.01 hPa |
| Temperature Range | -40 degreesC to +85 degreesC |
| Temperature Accuracy | +/-1 degreesC (typical) |
| Temperature Resolution | 0.01 degreesC |
| Altitude Resolution | ~0.25 m (derived from pressure) |
| Communication Interface | I2C (default) & SPI |
| I2C Address | 0x76 (default) / 0x77 (configurable) |
| Operating Voltage | 1.8V - 3.6V (onboard 3.3V regulator; 5V tolerant via module) |
| Current Consumption | 2.7 uA @ 1 Hz (ultra-low power mode) |
| Module Dimensions | ~15 mm x 12 mm |
| Pin Count | 6 pins (VCC, GND, SCL, SDA, CSB, SDO) |
| Compatibility | Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and more |
| Origin | Original Bosch BMP280 chip / Authentic module |
Why Choose BMP280 Sensor Module?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of BMP280 Sensor Module
- High-Precision Barometric Pressure Sensing: Measures pressure from 300 to 1100 hPa with +/-1 hPa accuracy - suitable for weather forecasting and altitude estimation.
- Accurate Temperature Measurement: Built-in temperature sensor with +/-1 degreesC accuracy across a wide -40 degreesC to +85 degreesC range.
- Altitude Calculation: Derive altitude from pressure readings with approximately 0.25 m resolution - perfect for drone flight controllers and hiking altimeters.
- Dual Interface Support: Communicate via I2C or SPI, giving you flexibility to integrate with virtually any microcontroller platform.
- Ultra-Low Power Consumption: Draws only 2.7 uA at 1 Hz sampling rate, making it ideal for battery-powered and solar-powered applications.
- Onboard Voltage Regulator: Module includes a 3.3V regulator and level shifting, allowing safe direct connection to 5V Arduino boards.
- Compact Breakout Design: Breadboard-friendly header pins with clearly labeled pinout for quick prototyping.
- Excellent Library Support: Works seamlessly with Adafruit BMP280 library, SparkFun library, and native ESP-IDF drivers.
- Pre-soldered header pins for instant breadboard use (or unsoldered option available on request)
BMP280 Barometric Pressure & Temperature Sensor Module
Measure atmospheric pressure and temperature with exceptional accuracy using the BMP280 sensor module from Bosch Sensortec. Ideal for weather stations, altimeters, and IoT environmental monitoring projects.
Pin Configuration
| Pin | Label | Function |
| 1 | VCC | Power supply (3.3V or 5V via onboard regulator) |
| 2 | GND | Ground |
| 3 | SCL | I2C Clock / SPI Clock (SCK) |
| 4 | SDA | I2C Data / SPI MOSI |
| 5 | CSB | Chip Select for SPI (pull HIGH for I2C mode) |
| 6 | SDO | SPI MISO / I2C address select ( |
Frequently Asked Questions
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your BMP280 Sensor Module today and start building your next project.
