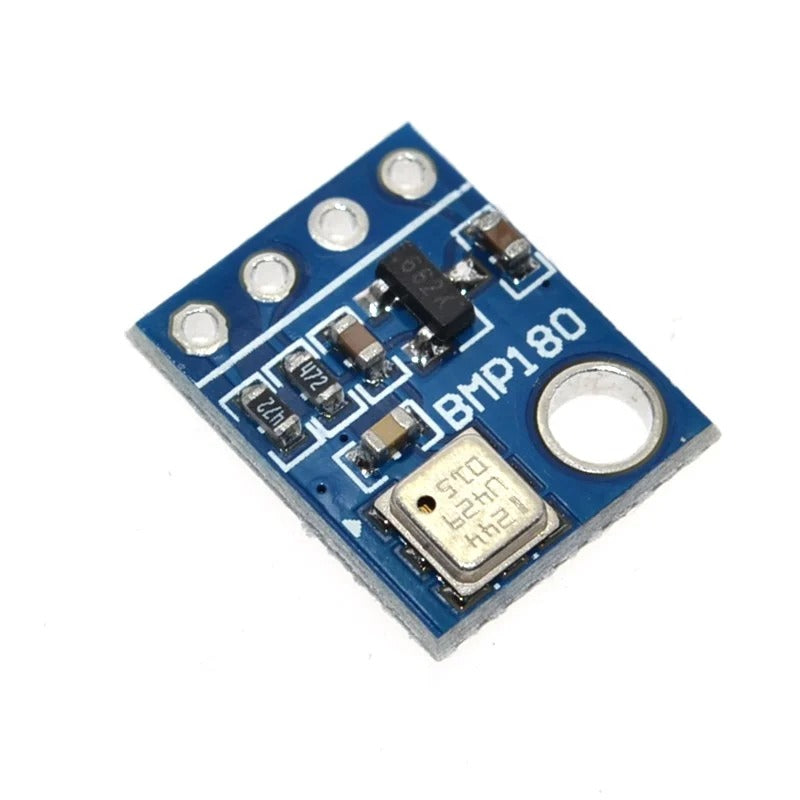

BMP180 Pressure Sensor Module
BMP180 Pressure Sensor Module
Shipping calculated at checkout.
Looking to buy BMP180 Pressure Sensor Module at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
Measure barometric pressure and altitude with precision using the BMP180 digital pressure sensor module.
Specifications
| Sensor Chip | Bosch BMP180 |
| Measurement Range | 300 to 1100 hPa (hectopascals) |
| Altitude Resolution | Approx. 0.25 m (with oversampling) |
| Pressure Accuracy | +/-1.0 hPa (typical) |
| Operating Voltage | 1.8V to 3.6V (module includes 3.3V regulator for 5V systems) |
| Communication Interface | I2C (SCL, SDA) |
| I2C Address | 0x77 |
| Temperature Measurement | -40 degreesC to +85 degreesC (+/-1 degreesC accuracy) |
| Resolution | 0.01 hPa / 0.1 degreesC |
| Response Time | 7.5 ms (standard mode) |
| Current Consumption | 5 uA at 1 sample/sec (ultra-low power) |
| Module Dimensions | Approx. 13 mm x 10 mm |
| Pin Count | 4 pins - VCC, GND, SCL, SDA |
| Compatibility | Arduino, ESP8266, ESP32, Raspberry Pi, STM32, and other microcontrollers |
| Type | Digital Barometric Pressure & Temperature Sensor Module |
| Origin | Original / Authentic Bosch BMP180 |
Why Choose BMP180 Pressure Sensor Module?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of BMP180 Pressure Sensor Module
- High-Precision Barometric Pressure Sensing: Measures atmospheric pressure from 300 to 1100 hPa with +/-1.0 hPa accuracy, enabling reliable weather monitoring and altitude estimation.
- Built-In Temperature Sensor: Integrated temperature measurement from -40 degreesC to +85 degreesC provides automatic thermal compensation and standalone temperature readings.
- Altitude Calculation Capability: Derives altitude from pressure readings with approximately 0.25 m resolution when using oversampling - ideal for drones, hiking gadgets, and elevation tracking.
- Ultra-Low Power Consumption: Draws only 5 uA at one sample per second, making it perfect for battery-powered and portable IoT applications.
- Simple I2C Interface: Communicates over a standard two-wire I2C bus (SCL and SDA), requiring minimal wiring and freeing up GPIO pins for other peripherals.
- Onboard Voltage Regulator: Module-level regulator allows direct connection to 5V microcontrollers like Arduino Uno without external level shifting.
- Compact Breakout Design: Tiny PCB with clearly labelled header pins for quick breadboard prototyping or permanent soldering into custom circuits.
- Wide Platform Compatibility: Works seamlessly with Arduino, ESP8266, ESP32, Raspberry Pi, STM32, and virtually any microcontroller supporting I2C communication.
- Extensive Library Support: Supported by Adafruit BMP085/BMP180 library, SparkFun library, and numerous community resources for fast development.
- Factory-Calibrated: Each BMP180 chip contains individual calibration coefficients stored in on-chip EEPROM - no manual calibration required out of the box.
How It Works
The BMP180 module uses a piezoresistive MEMS sensor element manufactured by Bosch Sensortec. When atmospheric pressure acts on the sensor's micro-machined silicon diaphragm, it causes a measurable change in electrical resistance. The on-chip analog-to-digital converter digitizes this signal, and the internal signal-conditioning circuitry applies factory-stored calibration coefficients to produce accurate pressure and temperature values.
Communication happens over the I2C protocol at address 0x77. Your microcontroller sends a command to initiate a measurement, waits for the conversion time (which varies by oversampling setting from approximately 4.5 ms to 25.5 ms), and then reads back the raw data registers. A software library (such as the Adafruit BMP085 library) handles the calibration
Frequently Asked Questions
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your BMP180 Pressure Sensor Module today and start building your next project.
