Arduino UNO Sensor Shield Expansion board V5
Arduino UNO Sensor Shield Expansion board V5
Shipping calculated at checkout.
The Arduino UNO Sensor Shield Expansion board V5 is a arduino + microcontroller component used by makers, students and engineers for electronics and embedded-systems projects.

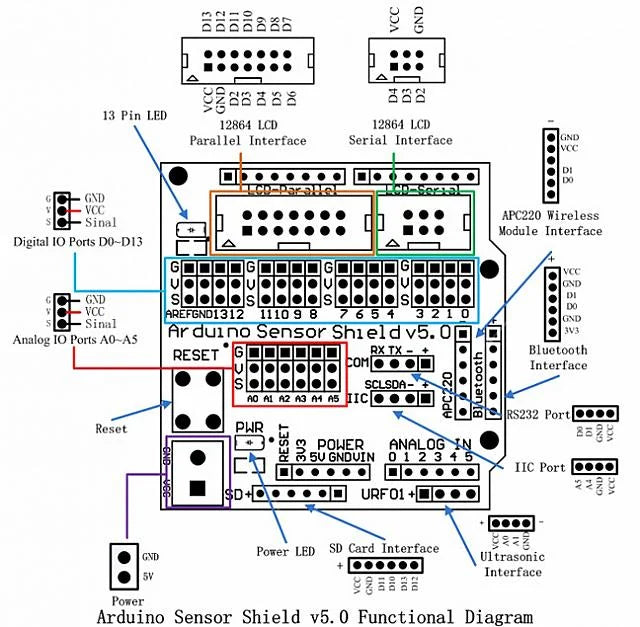

Simplify your Arduino UNO projects with the Sensor Shield V5 - a versatile expansion board that breaks out all UNO pins into convenient 3-pin (Signal, VCC, GND) headers for effortless sensor and module connections. From Tech Depot India, Bengaluru.
Specifications
| Compatibility | Arduino UNO R3 (and compatible boards) |
| Digital I/O Headers | D0-D13 broken out to 3-pin servo-style headers (Signal/VCC/GND) |
| Analog Input Headers | A0-A5 broken out to 3-pin headers (Signal/VCC/GND) |
| Communication Interfaces | UART (RX/TX), I2C (SDA/SCL), SPI (MOSI/MISO/SCK/SS) dedicated headers |
| Servo Connections | Dedicated 3-pin headers on digital pins for direct servo motor hookup |
| Additional Features | SD card module slot, APC220 wireless module interface, Bluetooth/XBee socket, reset button |
| Operating Voltage | 5V (powered via Arduino UNO) |
| Board Dimensions | Matches Arduino UNO form factor for direct stacking |
| Connector Type | Standard 2.54mm pitch pin headers |
| Type | Expansion/Shield Board |
| Origin | Original/Authentic |
- Compatibility: Arduino UNO R3 (and compatible boards)
- Digital I/O Headers: D0-D13 broken out to 3-pin servo-style headers (Signal/VCC/GND)
- Analog Input Headers: A0-A5 broken out to 3-pin headers (Signal/VCC/GND)
- Communication Interfaces: UART (RX/TX), I2C (SDA/SCL), SPI (MOSI/MISO/SCK/SS) dedicated headers
- Servo Connections: Dedicated 3-pin headers on digital pins for direct servo motor hookup
- Additional Features: SD card module slot, APC220 wireless module interface, Bluetooth/XBee socket, reset button
- Operating Voltage: 5V (powered via Arduino UNO)
- Board Dimensions: Matches Arduino UNO form factor for direct stacking
- Connector Type: Standard 2.54mm pitch pin headers
- Type: Expansion/Shield Board
Why Choose Arduino UNO Sensor Shield Expansion board V5?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Arduino UNO Sensor Shield Expansion board V5
- Plug-and-Play Sensor Connections: Every digital and analog pin is broken out to a 3-pin header (Signal, VCC, GND), eliminating messy breadboard wiring and loose jumper cables.
- Multiple Communication Ports: Dedicated headers for I2C, SPI, UART, and serial communication allow simultaneous connection of displays, sensors, and wireless modules.
- Direct Servo Support: Connect up to 14 servo motors directly to the digital pin headers without external power distribution boards.
- Wireless Module Ready: Built-in socket for APC220, Bluetooth (HC-05/HC-06), XBee, and similar wireless communication modules for IoT and remote-control projects.
- SD Card Interface: Onboard SD card module connection for data logging applications without additional wiring.
- Stackable Design: Standard Arduino UNO shield form factor - simply plug it on top of your UNO and start connecting sensors immediately.

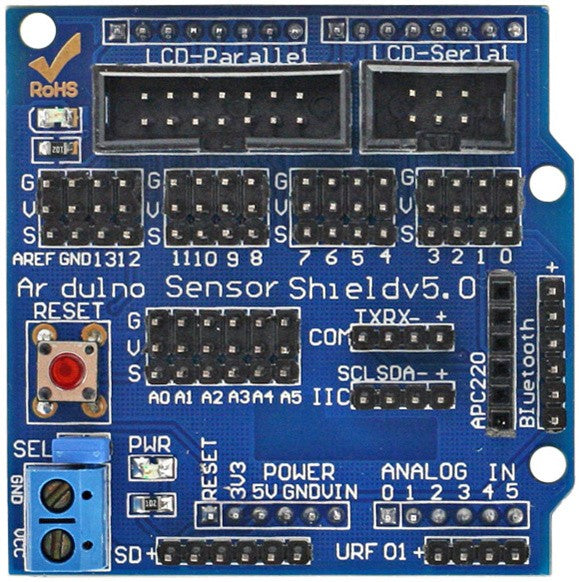

- Clearly Labeled Pins: All headers are silk-screened with pin numbers and functions for quick, error-free wiring.
- 100% authentic from trusted suppliers
- Eliminates breadboard clutter - connect sensors, servos, and modules directly with 3-pin cables
- Saves hours of wiring time on multi-sensor projects
Perfect For
- Weather Station: Connect temperature, humidity, barometric pressure, and rain sensors simultaneously using the organized pin headers, with SD card logging for long-term data collection.
- Robotic Arm Controller: Drive multiple servo motors directly from the shield's digital headers to build a fully articulated robotic arm with smooth, coordinated movement.
- Home Automation Hub: Pair with a Bluetooth or XBee module via the onboard wireless socket and connect relay modules, PIR sensors, and LDRs for a complete smart home controller.
- IoT Environmental Monitor: Use I2C sensors (air quality, CO2, light) alongside a wireless module to transmit real-time environmental data to a cloud dashboard.
- Educational Sensor Lab: Perfect for classrooms - students can quickly swap and test dozens of different sensors without rewiring, accelerating hands-on learning.
What's in the Box
- 1 x Arduino UNO Sensor Shield Expansion Board V5 (fully assembled with pre-soldered headers)
- Documentation and support materials
Frequently Asked Questions
Is this compatible with Arduino UNO clones and R3 boards?
Yes, the Sensor Shield V5 is compatible with all Arduino UNO R3 boards and UNO-compatible clones that share the standard UNO header layout. It plugs directly onto the pin headers.
Can I stack another shield on top of this sensor shield?
The V5 sensor shield uses the UNO's pin headers, so stacking depends on whether the pins pass through. Some versions have stackable headers - check that the top-side pins are accessible if you plan to add another shield above it.
Do I need to solder anything?
No, the board comes fully assembled with all pin headers
