Arduino UNO Prototyping Shield
Arduino UNO Prototyping Shield
Shipping calculated at checkout.

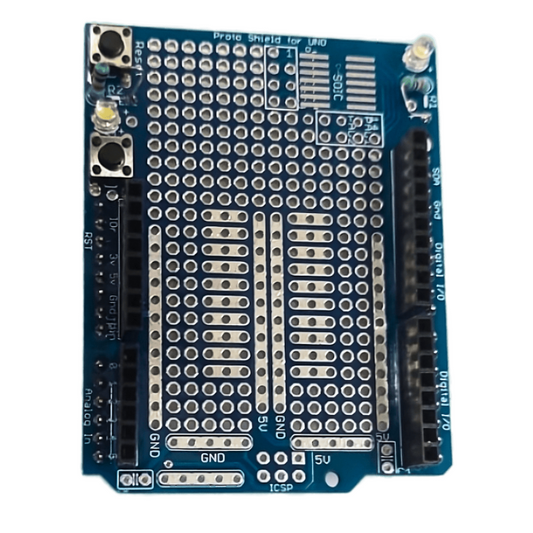

The Arduino UNO Prototyping Shield is a arduino + microcontroller component used by makers, students and engineers for electronics and embedded-systems projects.
Build, test, and iterate your Arduino circuits with ease using the Arduino UNO Prototyping Shield. Designed to sit directly on top of your Arduino UNO, this shield provides a generous breadboard-style prototyping area, dedicated power rails, and convenient breakout access to all UNO pins - making it the ideal platform for custom circuit development. Available now from Tech Depot India, Bengaluru, with fast shipping and full technical support.
Specifications
| Type | Prototyping Shield / PCB Shield |
| Compatible Board | Arduino UNO R3 (and R3-compatible clones) |
| PCB Prototyping Area | Breadboard-style through-hole grid (2.54 mm pitch) |
| Onboard Components | Reset button, LED indicators (power & user-configurable), ICSP header breakout |
| Pin Breakout | All digital (D0-D13), analog (A0-A5), power (5 V, 3.3 V, GND, Vin) pins broken out |
| Mini Breadboard Slot | Yes - includes mounting area for a standard 170-point mini breadboard |
| Board Dimensions | ~68.6 x 53.4 mm (standard UNO shield footprint) |
| Connector Type | Stackable female headers (allows stacking additional shields) |
| PCB Layers | 2-layer FR4, lead-free HASL finish |
| Operating Voltage | 5 V (powered via Arduino UNO) |
| Weight | ~20 g (without mini breadboard) |
| Origin | Original / Authentic quality-checked component |
- Type: Prototyping Shield / PCB Shield
- Compatible Board: Arduino UNO R3 (and R3-compatible clones)
- PCB Prototyping Area: Breadboard-style through-hole grid (2.54 mm pitch)
- Onboard Components: Reset button, LED indicators (power & user-configurable), ICSP header breakout
- Pin Breakout: All digital (D0-D13), analog (A0-A5), power (5 V, 3.3 V, GND, Vin) pins broken out
- Mini Breadboard Slot: Yes - includes mounting area for a standard 170-point mini breadboard
- Board Dimensions: ~68.6 x 53.4 mm (standard UNO shield footprint)
- Connector Type: Stackable female headers (allows stacking additional shields)
- PCB Layers: 2-layer FR4, lead-free HASL finish
- Operating Voltage: 5 V (powered via Arduino UNO)
Why Choose Arduino UNO Prototyping Shield?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Arduino UNO Prototyping Shield
- Dedicated Prototyping Grid: Generous through-hole solder area with standard 2.54 mm spacing lets you solder ICs, resistors, capacitors, transistors, and other components directly onto the shield for permanent or semi-permanent circuits.
- Stackable Headers: Equipped with long-pin stackable female headers so you can access every Arduino UNO pin while still stacking additional shields on top.
- Mini Breadboard Compatible: Includes a mounting area (and often a removable 170-point mini breadboard) for solderless prototyping - perfect for quick tests before committing to solder.
- Power Rail Access: Clearly labeled 5 V, 3.3 V, GND, and Vin rails distributed across the board for convenient power distribution to your components.
- Onboard Reset Button: Dedicated reset button on the shield so you can restart your Arduino sketch without reaching underneath.
- User LED: At least one configurable LED (typically connected to D13) for quick visual debugging and status indication.
- ICSP Header Breakout: Passes through the ICSP header for SPI communication and bootloader programming access.
- Compact & Tech Depot India: Standard UNO form factor ensures a snug, secure fit with no overhang. Quality FR4 PCB withstands repeated soldering and desoldering.
- Eliminates messy jumper-wire tangles by letting you build clean, organized circuits on a dedicated PCB
- Ideal bridge between breadboard prototyping and custom PCB manufacturing
Perfect For
- Custom Sensor Hub: Solder temperature, humidity, gas, and motion sensors directly onto the shield to create a compact, all-in-one environmental monitoring station.
- Motor Driver Shield: Build your own H-bridge motor driver circuit on the prototyping area to control DC motors, stepper motors, or servos for robotics projects.
- Signal Conditioning Circuit: Design amplifier, filter, or voltage divider circuits on-board for analog sensor interfacing - no separate breakout board needed.
- IoT Gateway Prototype: Solder an ESP8266 or nRF24L01 module onto the shield along with supporting components to prototype wireless IoT communication.
- Audio Projects: Build a simple audio amplifier, tone generator, or audio filter circuit directly on the shield for interactive sound projects.
- LED Matrix / Display Driver: Wire up shift registers (74HC595) and LED matrices on the prototyping area for custom display projects.
- Learning & Education: Perfect for electronics students learning to solder, build circuits from schematics, and understand PCB layout fundamentals hands-on.
- Rapid Product Prototyping: Validate your product concept with a clean, semi-permanent prototype before investing in custom PCB fabrication.
How to Use
Frequently Asked Questions
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your Arduino UNO Prototyping Shield today and start building your next project.
Buy Arduino UNO Prototyping Shield Online in India
Related: Browse more from our Arduino collection, or see all products at Tech Depot India.
