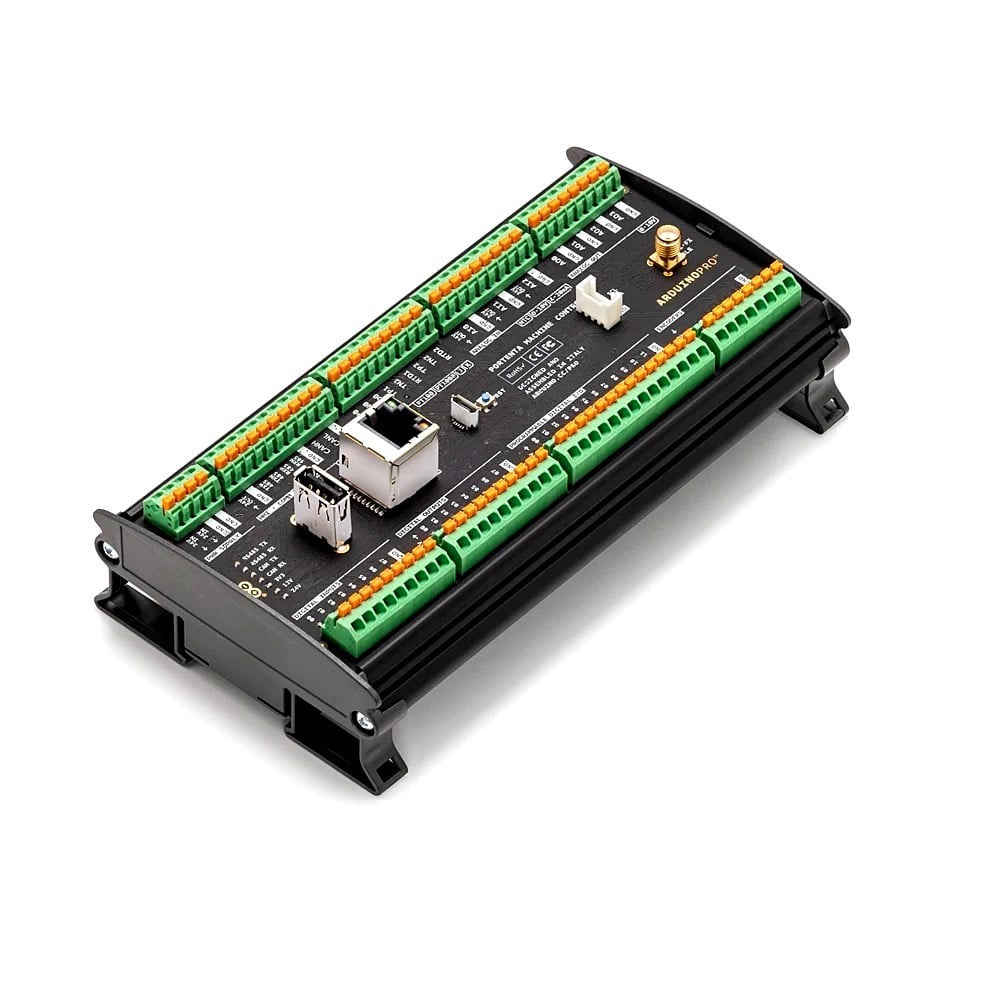

Arduino Portenta Machine Control Unit
Arduino Portenta Machine Control Unit
Shipping calculated at checkout.
The Arduino Portenta Machine Control Unit is a arduino + microcontroller component used by makers, students and engineers for electronics and embedded-systems projects.
Transform your industrial automation with the Arduino Portenta Machine Control Unit - a production-ready, all-in-one industrial control board built around the powerful Portenta H7 microcontroller. Available now at Tech Depot India, Bengaluru
Specifications
| Manufacturer | Arduino S.r.l. (Italy) |
| Part Number | AKX00032 |
| Core Module | Arduino Portenta H7 (STM32H747XI) |
| Main Processor | Dual-Core ARM Cortex-M7 (480 MHz) + Cortex-M4 (240 MHz) |
| Flash Memory | 2 MB internal + 16 MB external QSPI NOR Flash |
| RAM | 1 MB internal + 8 MB external SDRAM |
| Digital Inputs | 8 channels, 24V rated, sink/source |
| Digital Outputs | 8 channels, 24V/0.5A high-side switches |
| Analog Inputs | 3 channels, 0-10V / 4-20mA, 16-bit ADC |
| Analog Outputs | 4 channels, 0-10V, 12-bit DAC |
| Temperature Inputs | 3 channels (Thermocouple K/J/T, RTD PT100/PT1000) |
| Encoder Inputs | 2 quadrature encoder channels |
| Programmable I/O | 12 channels, configurable digital |
| Serial Communication | RS-232 (1x), RS-485 (1x, half-duplex), CAN Bus (1x) |
| Ethernet | 10/100 Mbps RJ45 |
| Wireless | Wi-Fi 802.11b/g/n + Bluetooth 4.2 / BLE |
| USB | USB-C (programming & debug) |
- Manufacturer: Arduino S.r.l. (Italy)
- Part Number: AKX00032
- Core Module: Arduino Portenta H7 (STM32H747XI)
- Main Processor: Dual-Core ARM Cortex-M7 (480 MHz) + Cortex-M4 (240 MHz)
- Flash Memory: 2 MB internal + 16 MB external QSPI NOR Flash
- RAM: 1 MB internal + 8 MB external SDRAM
- Digital Inputs: 8 channels, 24V rated, sink/source
- Digital Outputs: 8 channels, 24V/0.5A high-side switches
- Analog Inputs: 3 channels, 0-10V / 4-20mA, 16-bit ADC
- Analog Outputs: 4 channels, 0-10V, 12-bit DAC
Why Choose Arduino Portenta Machine Control Unit?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Arduino Portenta Machine Control Unit
- Dual-Core STM32H747 Processor: Cortex-M7 at 480 MHz + Cortex-M4 at 240 MHz for simultaneous real-time control and high-level processing
- 8 Digital Input Channels: 24V compatible, sink/source configurable for industrial sensor interfacing
- 8 Digital Output Channels: High-side switches rated at 24V/0.5A per channel for driving relays, solenoids, and indicators
- 3 Analog Input Channels: 0-10V / 4-20mA configurable inputs with 16-bit resolution for precision measurement
- 4 Analog Output Channels: 0-10V output channels for proportional valve control and setpoint signals
- 12 Programmable Digital I/O Channels: Flexible GPIO for custom signal routing
- 3 Temperature Probe Inputs: Direct thermocouple (K, J, T types) and RTD (PT100/PT1000) support with onboard conditioning
- 2 Encoder Inputs: Quadrature encoder channels for motor position and speed feedback
- RS-232 / RS-485 / CAN Bus: Industrial serial communication protocols for Modbus, CANopen, and custom protocols
- Ethernet Connectivity: 10/100 Mbps Ethernet for MQTT, OPC-UA, HTTP, and cloud integration
- Wi-Fi & Bluetooth Low Energy: Murata 1DX module for wireless monitoring, configuration, and IoT connectivity
- USB-C Programming Port: Easy firmware upload and debugging
- RTC with Battery Backup: Real-time clock for time-stamped data logging and scheduled operations
- DIN-Rail Mountable Enclosure: Industrial-grade housing for panel installation in control cabinets
- 24V DC Power Input: Standard industrial power supply compatibility with reverse polarity protection
- Arduino IDE & PLC IDE Compatible: Program using familiar Arduino sketches or IEC 61131-3 ladder logic, FBD, and structured text
Perfect For
- General-purpose microcontroller prototyping and sensor interfacing
- IoT, robotics and home-automation builds
- Educational and hobbyist embedded-systems projects
Product Overview
The Arduino Portenta Machine Control is designed for real-world industrial environments. It bridges the gap between rapid prototyping and full-scale industrial deployment, offering professional-grade I/O, robust connectivity, and seamless integration with PLCs, sensors, actuators, and cloud platforms. Whether you're retrofitting legacy machinery or building next-generation smart factory systems, this unit delivers enterprise-level reliability in a compact, DIN-rail-mountable form factor.
Frequently Asked Questions
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your Arduino Portenta Machine Control Unit today and start building your next project.
