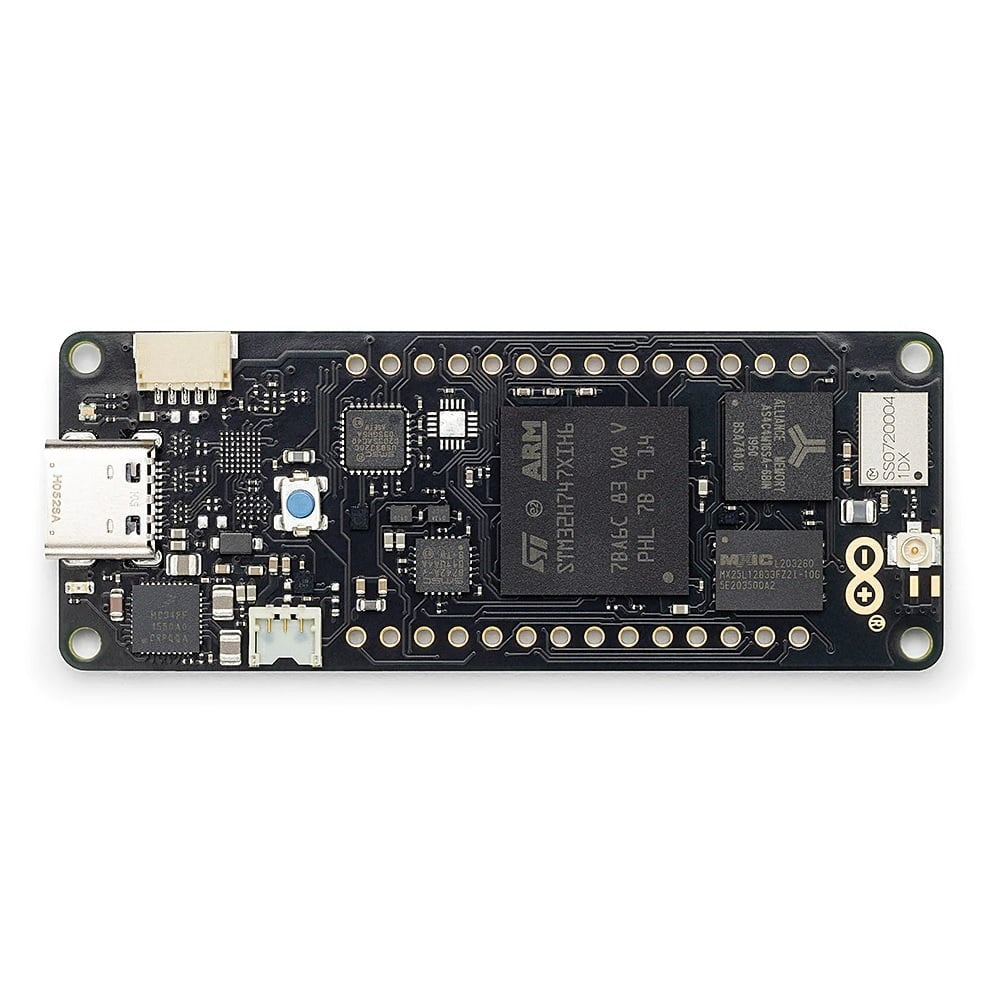

Arduino Portenta H7 Lite Connected
Arduino Portenta H7 Lite Connected
Shipping calculated at checkout.
The Arduino Portenta H7 Lite Connected is a arduino + microcontroller component used by makers, students and engineers for electronics and embedded-systems projects.
Unleash industrial-grade performance with the Arduino Portenta H7 Lite Connected - featuring an STM32H747 dual-core processor (Cortex-M7 + M4), onboard Wi-Fi and Bluetooth via the Murata 1DX module, and a compact 66.04 x 25.4 mm form factor designed for professional IoT, edge computing, and real-time applications. Available now from Tech Depot India, Bengaluru, with fast shipping and full technical support.
Specifications
| Board | Arduino Portenta H7 Lite Connected (ABX00046) |
| Microcontroller | STM32H747XI - Dual-Core Arm Cortex-M7 (480 MHz) + Cortex-M4 (240 MHz) |
| Flash Memory | 2 MB onboard (STM32H747) |
| SRAM | 1 MB onboard |
| Wireless Connectivity | Wi-Fi 802.11b/g/n + Bluetooth 4.2/BLE via Murata 1DX module |
| Secure Element | NXP SE050C2 crypto chip for hardware-level security |
| Operating Voltage | 3.3 V (5 V via USB-C input) |
| USB Connector | USB-C (programming, power, data) |
| Digital I/O Pins | Available via high-density connectors (MKR-compatible headers) |
| Communication Protocols | SPI, I2C, UART, CAN, I2S, SAI, SDMMC |
| Board Dimensions | 66.04 x 25.4 mm |
| Compatible Carriers | Portenta Breakout Board, Portenta Vision Shield, Portenta Max Carrier |
| Programming Environments | Arduino IDE, Arduino CLI, MicroPython, JavaScript (Necto) |
| Operating Temperature | -40 degreesC to +85 degreesC (industrial range) |
| Type | Professional Development Board / System-on-Module |
| Origin | 100% Original Arduino - Authorized Distribution |
- Board: Arduino Portenta H7 Lite Connected (ABX00046)
- Microcontroller: STM32H747XI - Dual-Core Arm Cortex-M7 (480 MHz) + Cortex-M4 (240 MHz)
- Flash Memory: 2 MB onboard (STM32H747)
- SRAM: 1 MB onboard
- Wireless Connectivity: Wi-Fi 802.11b/g/n + Bluetooth 4.2/BLE via Murata 1DX module
- Secure Element: NXP SE050C2 crypto chip for hardware-level security
- Operating Voltage: 3.3 V (5 V via USB-C input)
- USB Connector: USB-C (programming, power, data)
- Digital I/O Pins: Available via high-density connectors (MKR-compatible headers)
- Communication Protocols: SPI, I2C, UART, CAN, I2S, SAI, SDMMC
Why Choose Arduino Portenta H7 Lite Connected?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Arduino Portenta H7 Lite Connected
- Dual-Core Powerhouse: Run high-level application code on the Cortex-M7 at 480 MHz while offloading real-time tasks to the Cortex-M4 at 240 MHz - true simultaneous processing on a single board.
- Built-In Wi-Fi & Bluetooth: The Murata 1DX module provides reliable 2.4 GHz Wi-Fi and BLE connectivity out of the box - ideal for IoT gateways, remote monitoring, and cloud-connected devices.
- Hardware-Level Security: The NXP SE050C2 secure element handles cryptographic operations, certificate storage, and secure boot - essential for commercial and industrial deployments.
- Industrial Temperature Range: Rated from -40 degreesC to +85 degreesC, this board is engineered for demanding environments beyond typical hobbyist conditions.
- Compact System
Perfect For
- General-purpose microcontroller prototyping and sensor interfacing
- IoT, robotics and home-automation builds
- Educational and hobbyist embedded-systems projects
Key Differences: Portenta H7 Lite Connected vs. Full H7 vs. H7 Lite
| Feature | Portenta H7 | H7 Lite Connected | H7 Lite |
| Dual-Core STM32H747 | Yes | Yes | Yes |
| Wi-Fi / Bluetooth | Yes | Yes | No |
| External SDRAM (8 MB) | Yes | No | No |
| External QSPI Flash (16 MB) | Yes | No | No |
| Video Output (DisplayPort) | Yes | No | No |
| Ethernet PHY | Yes | No | No |
| NXP SE050 Secure Element | Yes | Yes | No |
| USB-C | Yes | Yes | Yes |
| Price Point | Highest | Mid | Lowest |
The Portenta H7 Lite Connected delivers the sweet spot - you get wireless connectivity and hardware security without paying for the external memory and display features you may not need.
Frequently Asked Questions
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your Arduino Portenta H7 Lite Connected today and start building your next project.
