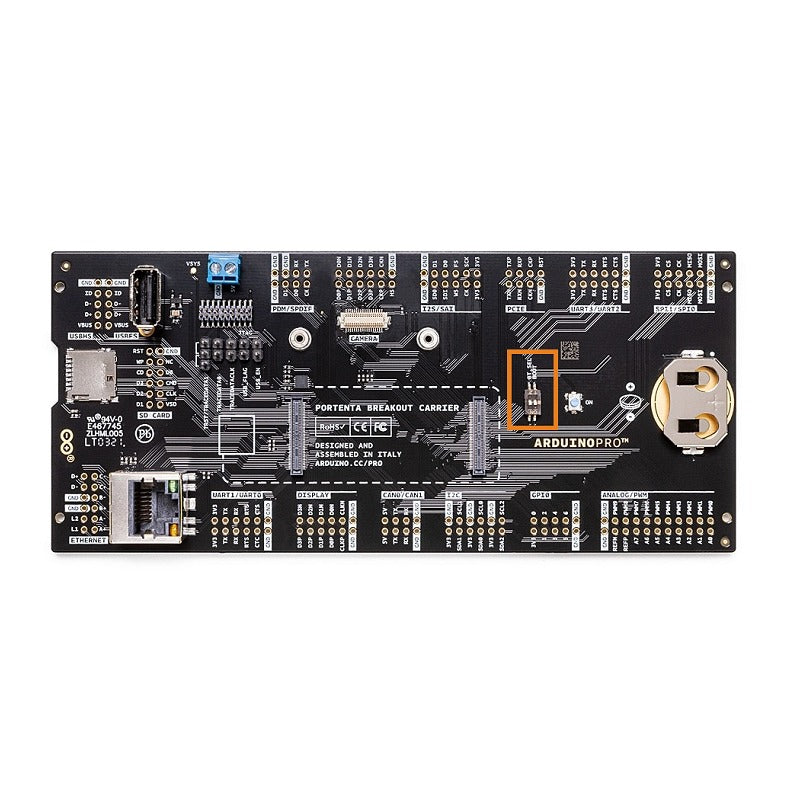

Arduino Portenta Breakout

The Arduino Portenta Breakout is a arduino + microcontroller component used by makers, students and engineers for electronics and embedded-systems projects.

Unlock the full potential of your Arduino Portenta H7 or Portenta X8 with the official Arduino Portenta Breakout board. Designed for rapid prototyping and industrial development, this breakout exposes every high-density connector pin to accessible headers, screw terminals, and standard interfaces - making it effortless to connect sensors, actuators, displays, and communication modules. Available now at Tech Depot India, Bengaluru, with fast shipping and expert support.

Specifications

• Board Type: Breakout / Carrier Board for Portenta Family
• Compatible Modules: Arduino Portenta H7, Portenta X8, Portenta C33
• Connector Type: Two 80-pin high-density connectors (mates with Portenta)
• Exposed Interfaces: GPIO, UART, SPI, I2C, I2S, CAN, SAI, PDM, USB, Ethernet, JTAG, ADC, DAC, PWM, SD Card
• USB Connectivity: USB-A host port & USB-C for Portenta programming/power
• Ethernet: RJ45 Ethernet jack with integrated magnetics
• Display Interface: MIPI DSI 2-lane connector for display output
• Camera Interface: MIPI CSI camera connector (8-bit parallel)
• Audio: 3.5 mm audio jack, I2S & PDM microphone headers
• Storage: MicroSD card slot

Why Choose Arduino Portenta Breakout?

100% Authentic

GST Invoice - A GST invoice is included with every order.

Expert Support - Dedicated technical help on WhatsApp and email.

Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.

Trusted by Makers - Used by students, hobbyists and professionals nationwide.

Key Features of Arduino Portenta Breakout

• Complete pin access: Every signal from the Portenta's dual 80-pin high-density connectors is broken out to clearly labeled headers and terminals - no custom PCB needed during prototyping
• Built-in connectivity: Onboard RJ45 Ethernet, USB-A host, CAN transceiver, and microSD slot let you test real-world industrial and IoT scenarios immediately
• Display and camera ready: MIPI DSI and camera connectors allow you to prototype HMI interfaces and vision applications without additional adapter boards
• Audio capabilities: Integrated 3.5 mm audio jack plus I2S and PDM headers for voice, sound, and audio processing projects
• Industrial-grade design: Wide operating temperature range, M3 mounting holes, and robust screw terminals make it suitable for lab benches and field deployment alike
• Debug-friendly: Dedicated JTAG/SWD header enables professional-level debugging with tools like Segger J-Link or OpenOCD

Perfect For

• Industrial IoT Gateway: Combine the Portenta H7 with the breakout's Ethernet, CAN bus, and UART interfaces to build a gateway that collects data from factory sensors and pushes it to cloud dashboards via MQTT or HTTP
• Smart HMI Panel: Connect a MIPI DSI display and touchscreen to create a real-time operator interface for monitoring production lines, HVAC systems, or energy meters
• Machine Vision Prototype: Attach a camera module via the CSI connector and run TensorFlow Lite models on the Portenta's Cortex-M7 for defect detection, barcode reading, or object counting
• Audio Processing Station: Use the audio jack and I2S headers to prototype voice command systems, environmental noise monitoring, or audio streaming devices
• CAN Bus Vehicle Diagnostics: Tap into automotive or agricultural vehicle CAN networks to log engine parameters, display diagnostics, and trigger alerts - all through the onboard CAN transceiver
• Multi-Sensor Data Logger: Wire up temperature
