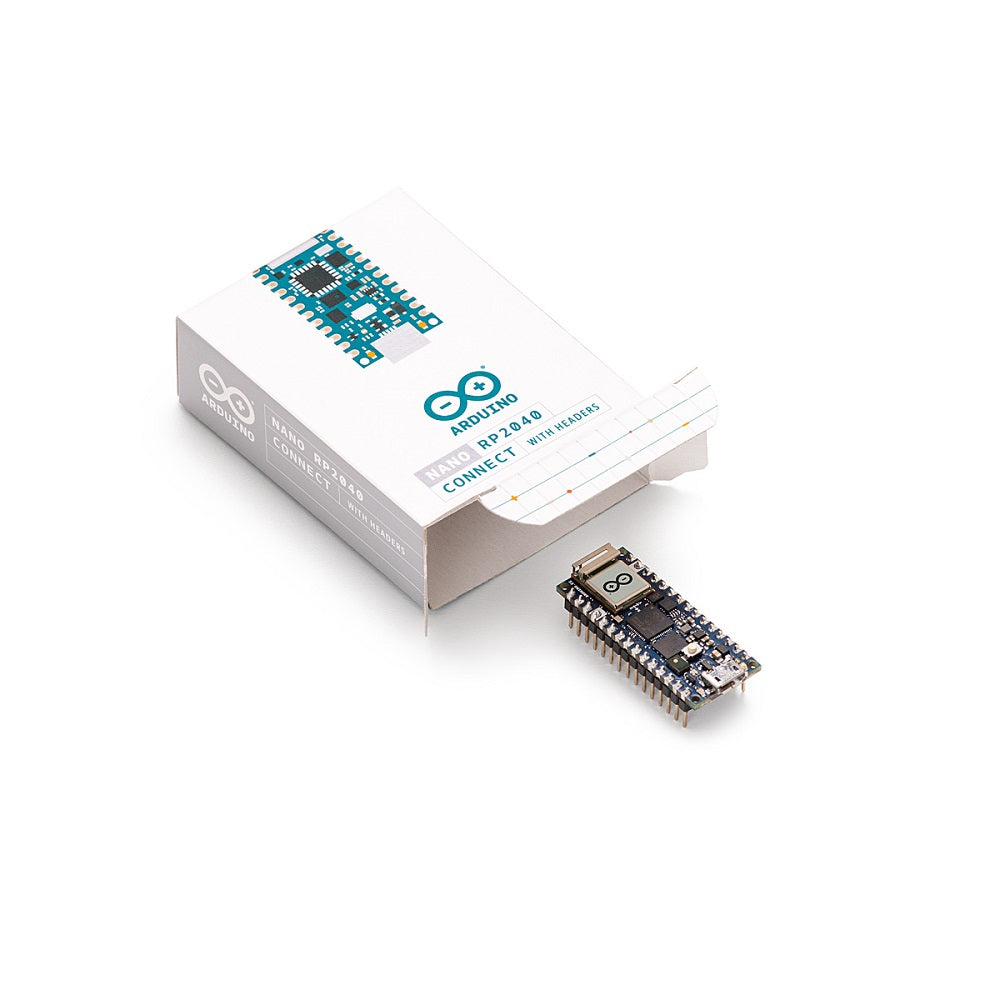

Arduino Nano RP2040 Connect with Header
Arduino Nano RP2040 Connect with Header
Shipping calculated at checkout.
The Arduino Nano RP2040 Connect with Header is a arduino + microcontroller component used by makers, students and engineers for electronics and embedded-systems projects.

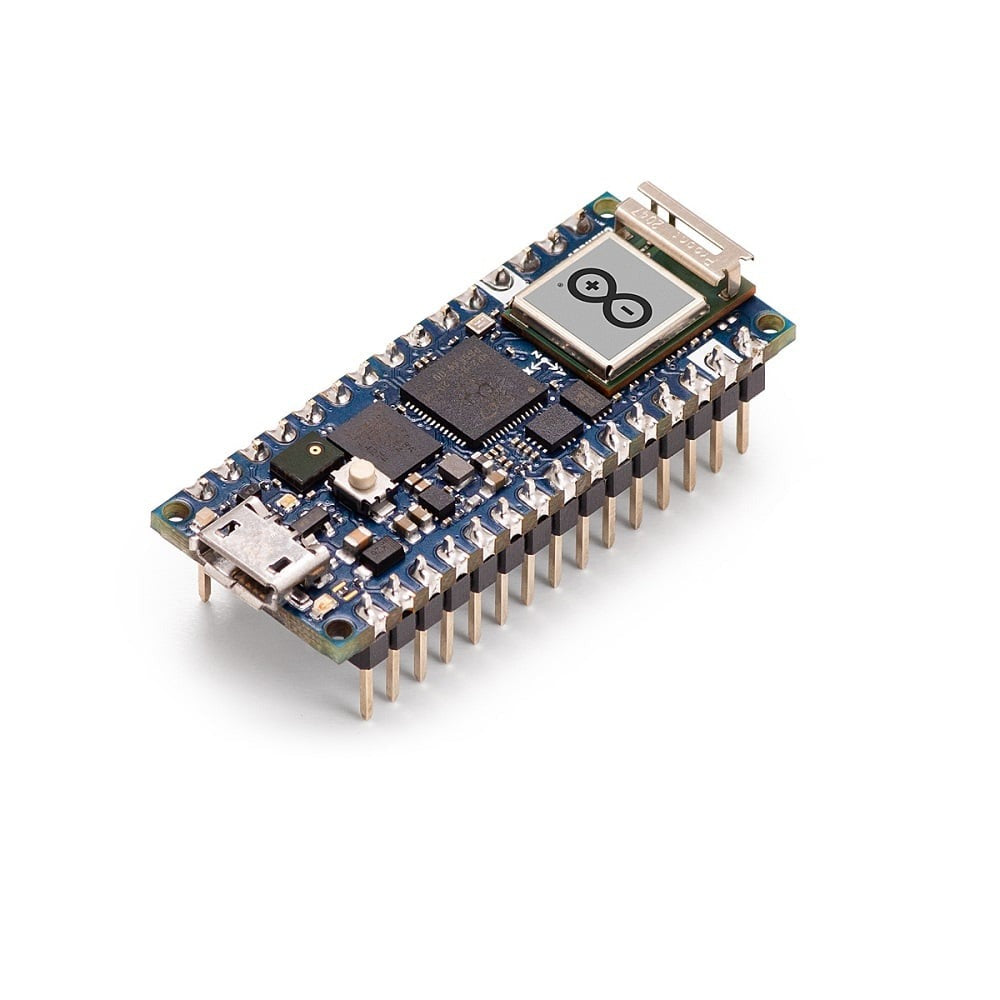

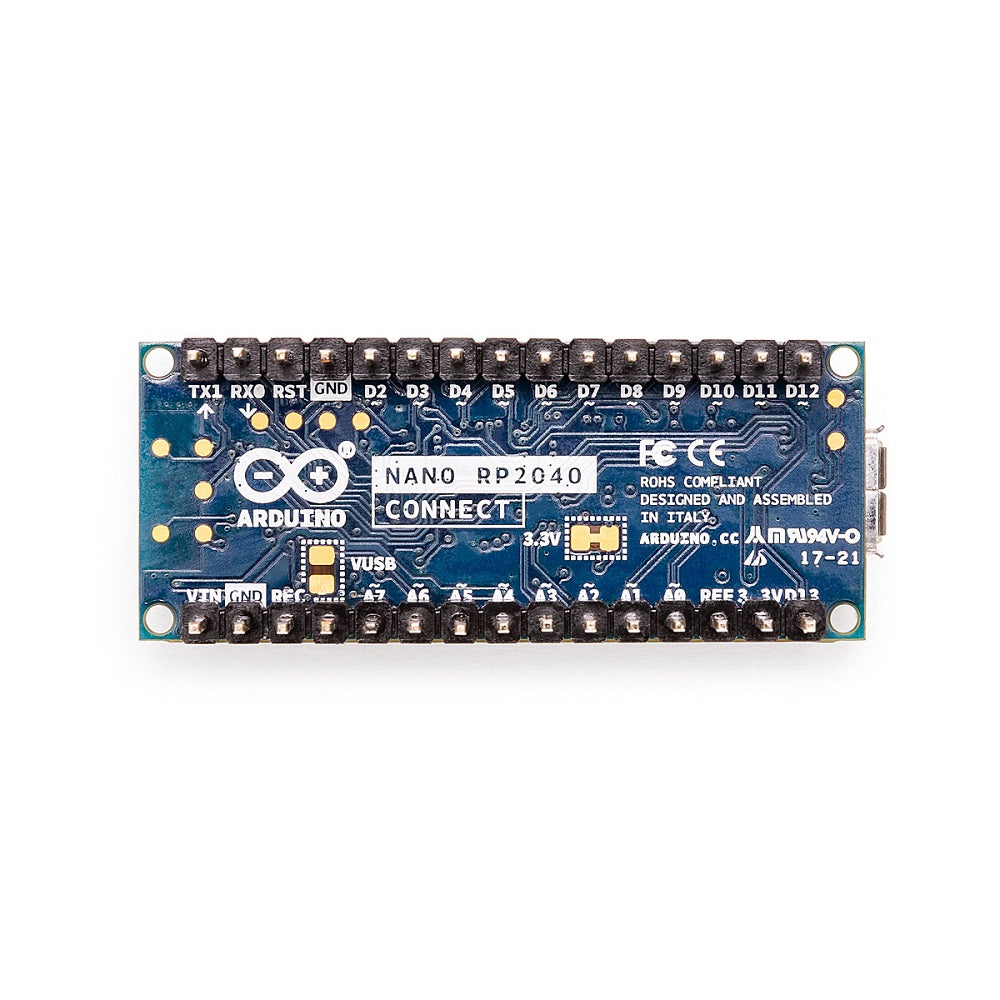

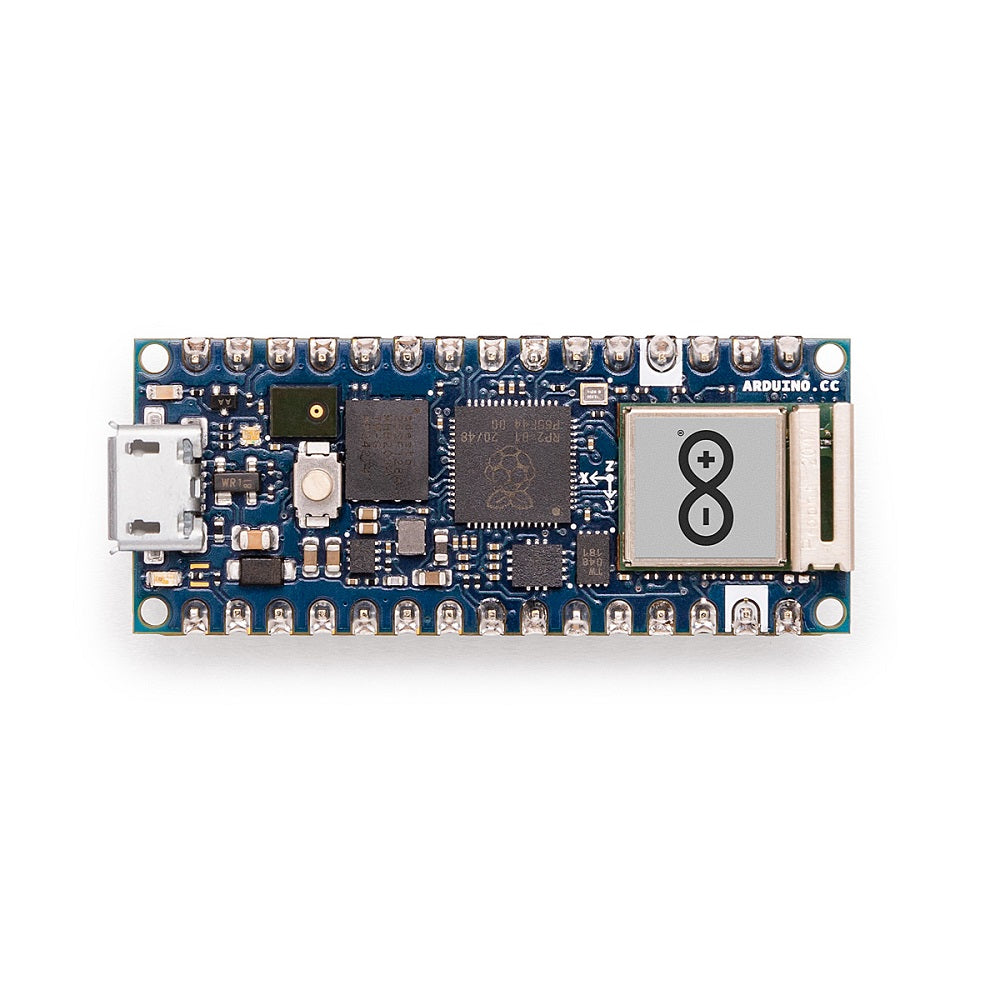

The Arduino Nano RP2040 Connect with Header combines the powerful Raspberry Pi RP2040 microcontroller with built-in Wi-Fi, Bluetooth, a 6-axis IMU, microphone, and RGB LED - all in the compact Nano form factor with pre-soldered headers for instant breadboard prototyping.
Specifications
| Board | Arduino Nano RP2040 Connect (ABX00053) |
| Microcontroller | Raspberry Pi RP2040 (Dual-Core ARM Cortex-M0+ @ 133 MHz) |
| Flash Memory | 16 MB (external QSPI) |
| SRAM | 264 KB |
| Wi-Fi | u-blox NINA-W102 (802.11 b/g/n, 2.4 GHz) |
| Bluetooth | Bluetooth 4.2 (BLE) via u-blox NINA-W102 |
| IMU (6-Axis) | ST LSM6DSOX (Accelerometer + Gyroscope with Machine Learning Core) |
| Microphone | ST MP34DT06JTR (Omnidirectional Digital MEMS) |
| Crypto Chip | ATECC608A (Hardware Security) |
| RGB LED | Built-in (programmable) |
| Digital I/O Pins | 20 (all with PWM support) |
| Analog Input Pins | 8 (12-bit ADC) |
| Operating Voltage | 3.3 V (logic level) |
| Input Voltage | 5-21 V (VIN pin) / 5 V (USB) |
| USB Connector | Micro-USB (for programming & power) |
| Communication | UART, SPI, I2C, I2S |
| Form Factor | Arduino Nano (45 x 18 mm) with pre-soldered headers |
| Compatibility | Arduino IDE, MicroPython, CircuitPython, Arduino Cloud |
| Headers | Pre-soldered male pin headers - breadboard-ready |
| Origin | 100% Original / Authentic Arduino Product |
- Board: Arduino Nano RP2040 Connect (ABX00053)
- Microcontroller: Raspberry Pi RP2040 (Dual-Core ARM Cortex-M0+ @ 133 MHz)
- Flash Memory: 16 MB (external QSPI)
- SRAM: 264 KB
- Wi-Fi: u-blox NINA-W102 (802.11 b/g/n, 2.4 GHz)
- Bluetooth: Bluetooth 4.2 (BLE) via u-blox NINA-W102
- IMU (6-Axis): ST LSM6DSOX (Accelerometer + Gyroscope with Machine Learning Core)
- Microphone: ST MP34DT06JTR (Omnidirectional Digital MEMS)
- Crypto Chip: ATECC608A (Hardware Security)
- RGB LED: Built-in (programmable)
Why Choose Arduino Nano RP2040 Connect with Header?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Arduino Nano RP2040 Connect with Header
- Dual-Core RP2040 Power: The Raspberry Pi RP2040 delivers exceptional processing at 133 MHz with dual Cortex-M0+ cores, PIO state machines, and 264 KB SRAM for demanding IoT and embedded applications.
- Built-in Wi-Fi & Bluetooth: The u-blox NINA-W102 module provides reliable 2.4 GHz Wi-Fi and BLE 4.2 connectivity out of the box - no external modules or shields required.
- Onboard 6-Axis IMU with ML Core: The ST LSM6DSOX sensor includes an embedded machine learning core for gesture recognition, activity classification, and motion detection directly on the sensor hardware.
- Digital MEMS Microphone: The onboard MP34DT06JTR microphone enables voice commands, sound detection, audio-triggered events, and TinyML audio classification projects.
- Hardware Crypto Security: The ATECC608A secure element provides hardware-based key storage, authentication, and encrypted communication for secure IoT deployments and Arduino Cloud integration.
- Pre-Soldered Headers: Male pin headers come factory-soldered, making the board instantly breadboard-compatible - no soldering needed to start prototyping.
- Multi-Platform Programming: Program with Arduino IDE (C/C++), MicroPython, or CircuitPython - choose the language and workflow that suits your project.
- 16 MB Flash Storage: Generous external flash accommodates large programs, data logging, file systems, and MicroPython/CircuitPython installations.
Perfect For
- IoT Weather Station: Use the onboard Wi-Fi to
