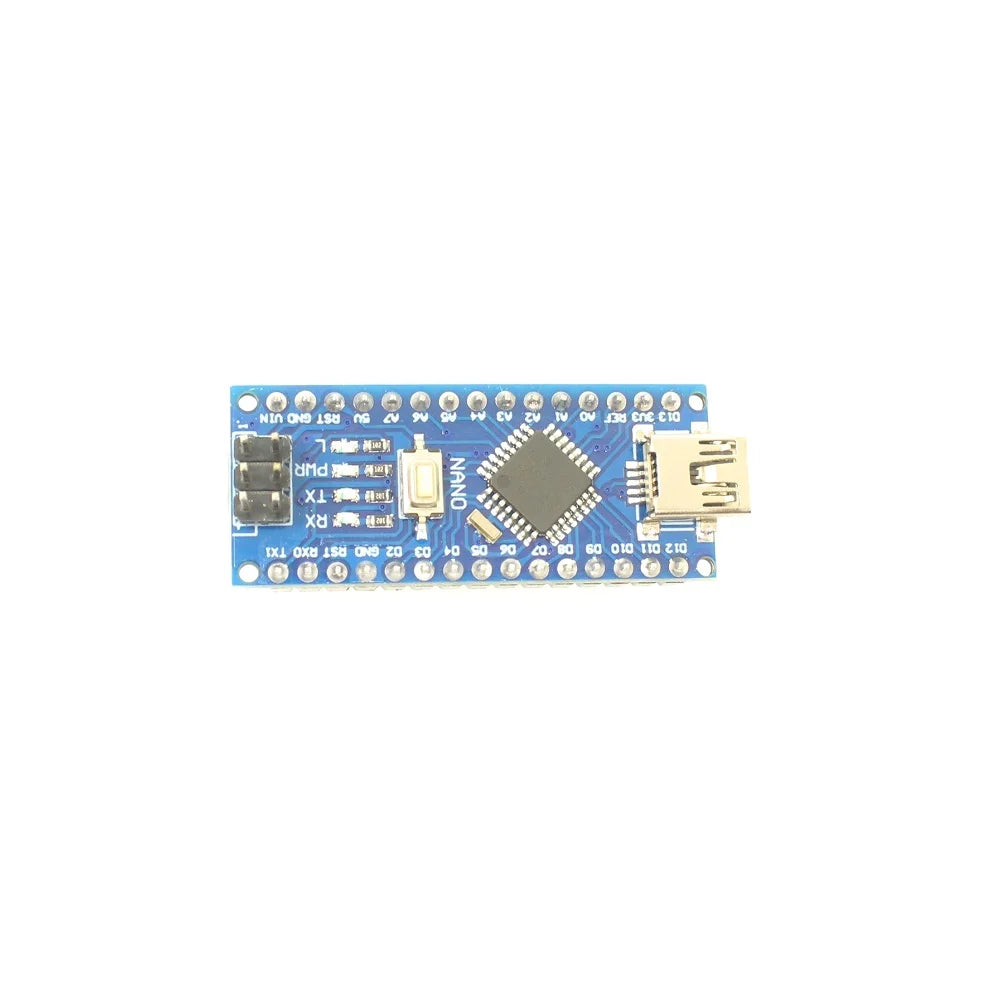

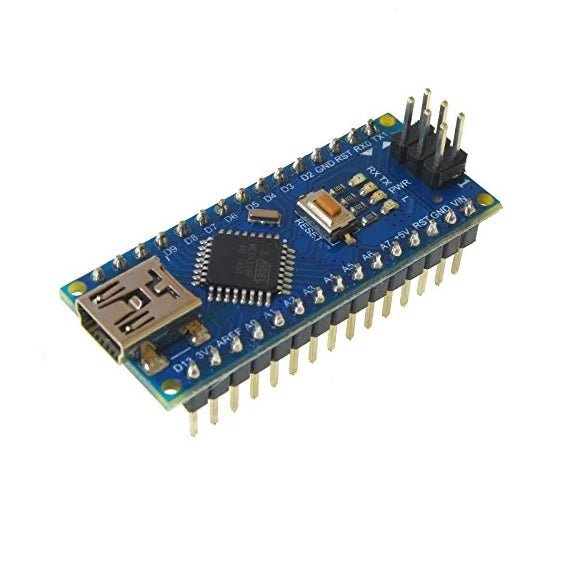

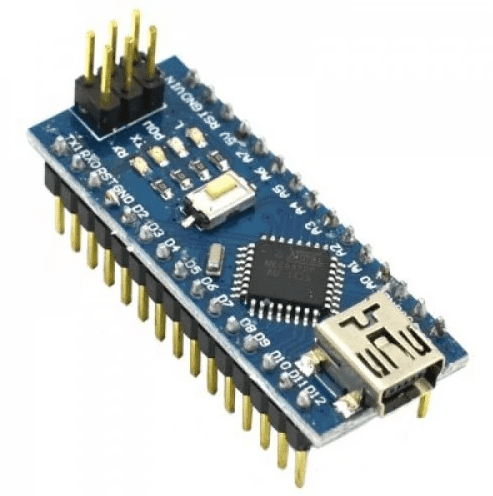

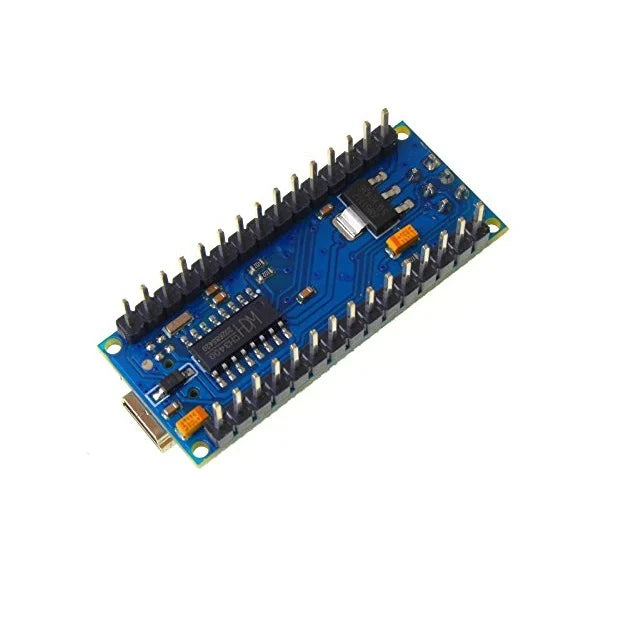

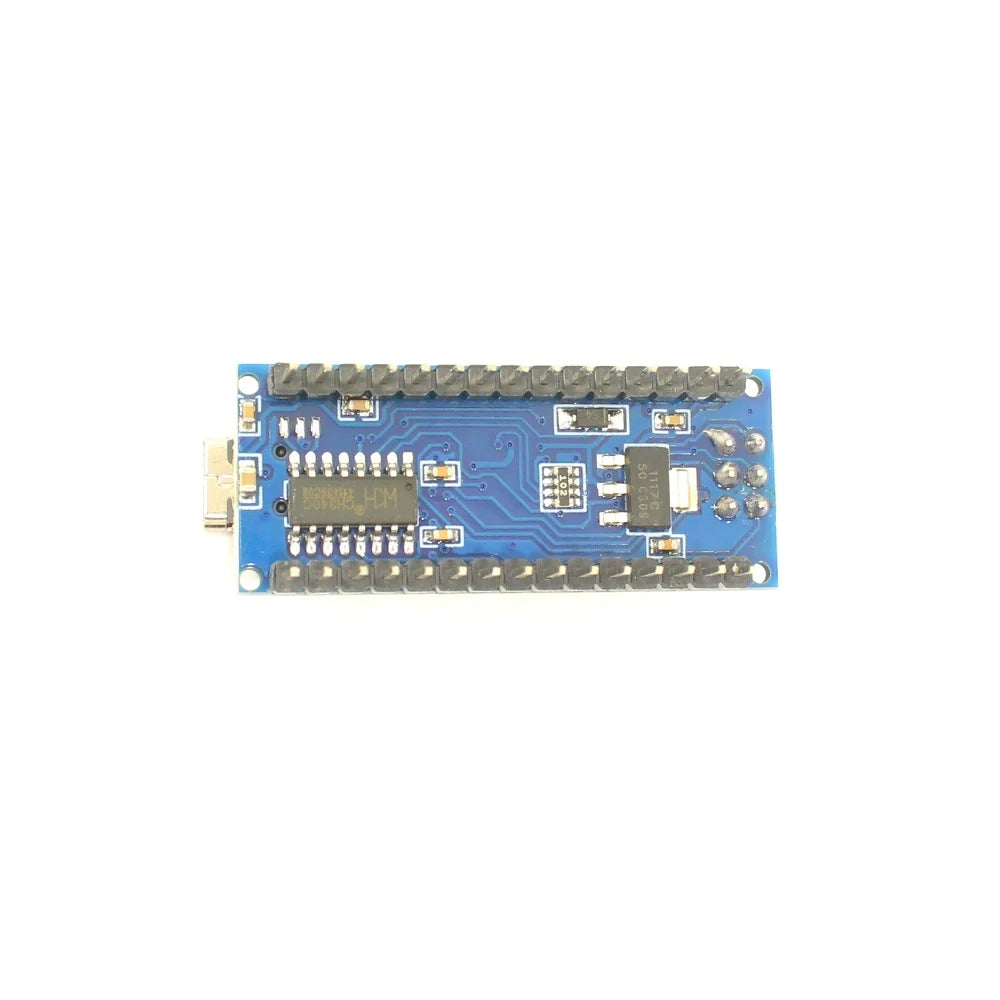

Arduino Nano Development Board compatible

Specifications

• Board Type: Arduino Nano Compatible Clone
• Microcontroller: ATmega328P
• USB Chip: CH340G (driver may be required on some systems)
• Operating Voltage: 5V
• Input Voltage (Recommended): 7-12V
• Digital I/O Pins: 14 (6 provide PWM output)
• Analog Input Pins: 8 (A0-A7)
• Flash Memory: 32 KB (2 KB used by bootloader)
• SRAM: 2 KB
• EEPROM: 1 KB

Why Choose Arduino Nano Development Board compatible?

100% Authentic

GST Invoice - A GST invoice is included with every order.

Expert Support - Dedicated technical help on WhatsApp and email.

Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.

Trusted by Makers - Used by students, hobbyists and professionals nationwide.

Key Features of Arduino Nano Development Board compatible

• ATmega328P at its core: The same reliable microcontroller used in the original Arduino Nano - fully compatible with all standard Arduino libraries, sketches, and shields.
• Breadboard-friendly form factor: At just 45 x 18 mm, the Nano slots directly into standard breadboards, making wiring and prototyping fast and clean.
• Pre-loaded bootloader: Upload code immediately via the Arduino IDE - no external programmer needed. Select "Arduino Nano" and "ATmega328P" in board settings and you're ready.
• 14 digital + 8 analog pins: Generous I/O for driving sensors, LEDs, motors, displays, relays, and communication modules simultaneously.
• Built-in voltage regulator: Accepts 7-12V via the VIN pin, so you can power it from battery packs, wall adapters, or bench supplies without worrying about regulation.
• CH340G USB-to-serial chip: Reliable and widely supported USB interface. Free drivers available for all major operating systems.
• PWM Outputs (6 pins): Pins D3, D5, D6, D9, D10, and D11 support hardware PWM - ideal for motor speed control, LED dimming, and servo positioning.
• Hardware Serial (UART): Pins D0 (RX) and D1 (TX) provide hardware serial communication for GPS modules, Bluetooth HC-05/06, GSM SIM800, and other UART peripherals.
• I2C Bus: Pins A4 (SDA) and A5 (SCL) enable I2C communication with OLED displays, BME280 sensors, RTC modules, and EEPROM chips.
• SPI Bus: Pins D10 (SS), D11 (MOSI), D12 (MISO), and D13 (SCK) support high-speed SPI communication with SD card modules, TFT displays, and NRF24L01 wireless modules.
• Analog-to-Digital Converter: 8 analog pins with 10-bit resolution (0-1023) for reading potentiometers, temperature sensors (LM35, TMP36), light-dependent resistors, and soil moisture probes.
• External Interrupts: Pins D2 (INT0) and D3 (INT1) support hardware interrupts for responsive event-driven programming - essential for encoders, button debouncing, and real-time triggers.

Perfect For

• General-purpose embedded-systems prototyping for makers and engineering students
• Custom firmware development for connected or standalone devices
• Teaching platforms for microcontroller-programming courses

Arduino Nano Development Board - Compatible Clone

Build compact, powerful embedded projects with this Arduino Nano compatible development board from Tech Depot India, Bengaluru. Based on the ATmega328P microcontroller, this breadboard-friendly board delivers the full functionality of the original Nano at an accessible price - perfect for prototyping, IoT projects, robotics, and learning embedded C/C++ programming.
