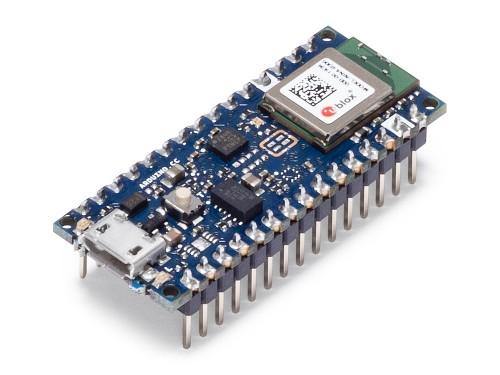

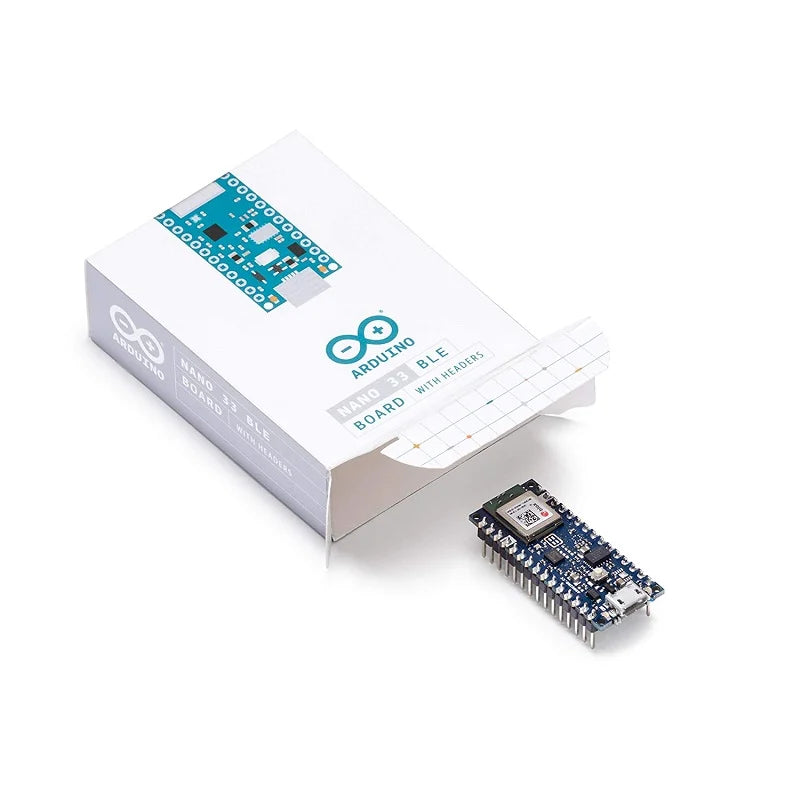

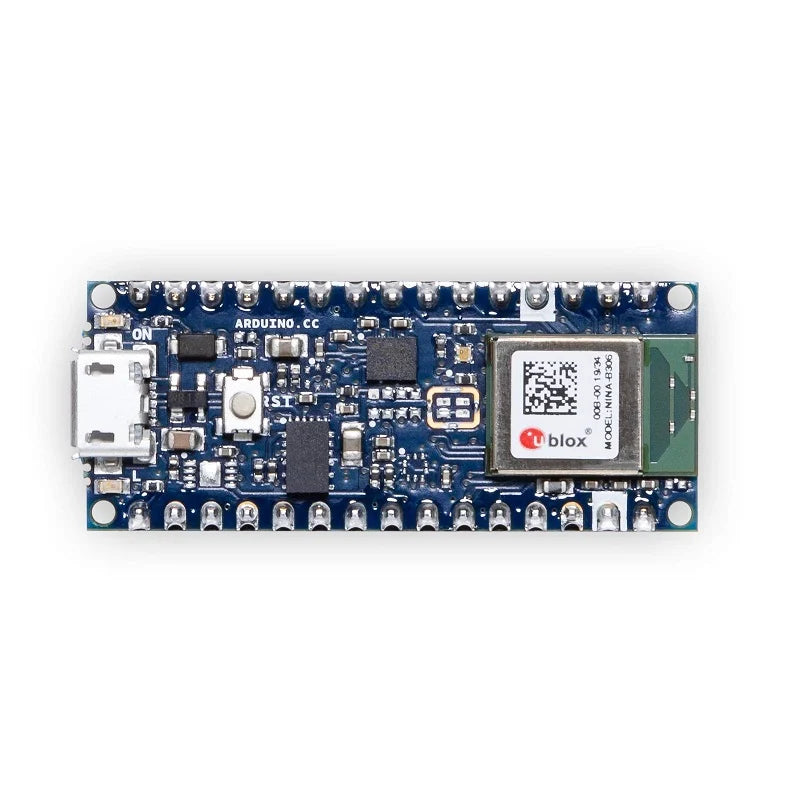

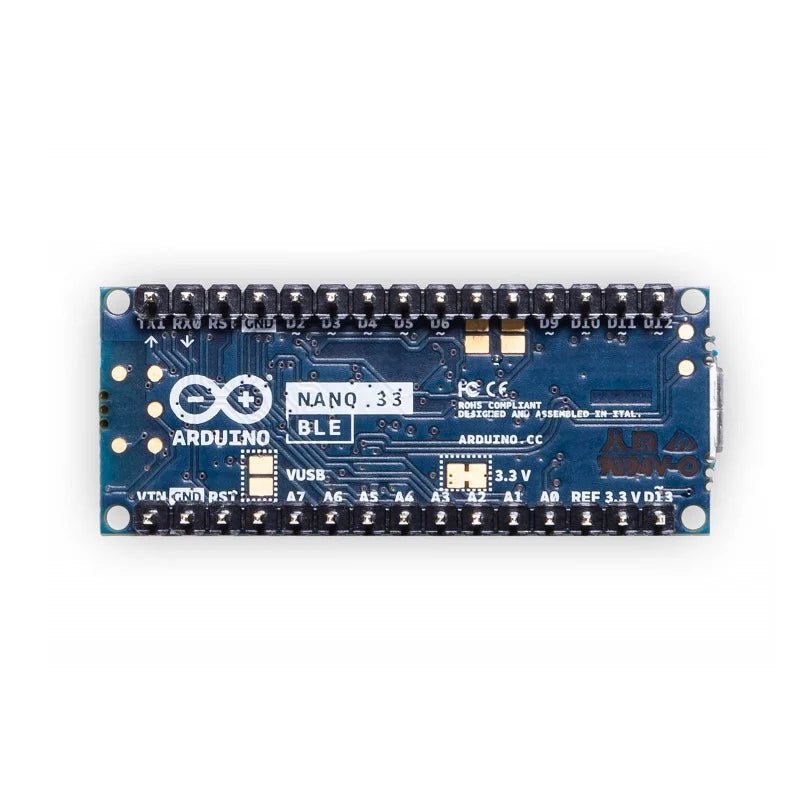

Arduino Nano 33 BLE with Headers

The Arduino Nano 33 BLE with Headers is a arduino + microcontroller component used by makers, students and engineers for electronics and embedded-systems projects.

Specifications

• Board: Arduino Nano 33 BLE with Headers (ABX00034)
• Microcontroller: Nordic nRF52840 (ARM Cortex-M4F, 64 MHz)
• Connectivity: Bluetooth 5.0 Low Energy (BLE)
• Flash Memory: 1 MB
• SRAM: 256 KB
• Onboard IMU: LSM9DS1 - 9-axis (Accelerometer, Gyroscope, Magnetometer)
• Operating Voltage: 3.3 V (5 V input via USB or VIN)
• Digital I/O Pins: 14 (8 PWM capable)
• Analog Input Pins: 8 (12-bit ADC)
• Board Dimensions: 45 x 18 mm (Nano form factor)

Why Choose Arduino Nano 33 BLE with Headers?

100% Authentic

GST Invoice - A GST invoice is included with every order.

Expert Support - Dedicated technical help on WhatsApp and email.

Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.

Trusted by Makers - Used by students, hobbyists and professionals nationwide.

Key Features of Arduino Nano 33 BLE with Headers

• Nordic nRF52840 Processor: Powerful ARM Cortex-M4F running at 64 MHz with 1 MB flash and 256 KB SRAM for complex BLE applications
• Bluetooth 5.0 BLE: Low-power wireless connectivity for IoT devices, wearables, beacons, and smartphone-controlled projects
• 9-Axis IMU (LSM9DS1): Onboard accelerometer, gyroscope, and magnetometer for motion detection, gesture recognition, and orientation sensing
• Pre-Soldered Headers: Plug directly into a breadboard or female header sockets - no soldering required for rapid prototyping
• TinyML Compatible: Run machine learning models on-device using TensorFlow Lite for Microcontrollers - ideal for gesture, voice, and anomaly detection
• Hardware Crypto (ATECC608A): Built-in secure element for encrypted communication and device authentication
• 3.3 V Logic Level: All I/O pins operate at 3.3 V - compatible with modern low-voltage sensors and modules
• Ultra-Compact Nano Form Factor: 45 x 18 mm footprint fits into space-constrained designs and wearable enclosures
• 12-Bit ADC Resolution: Higher precision analog readings compared to classic Arduino boards
• Arduino IDE & Cloud Compatible: Full support in Arduino IDE, Arduino Cloud, and the ArduinoBLE library ecosystem
• Breadboard Ready Out of the Box: Pre-soldered headers save time and eliminate soldering errors - start prototyping immediately
• Bluetooth + Motion Sensing in One Board: No need for separate BLE modules or IMU breakouts - everything is integrated
• Perfect for AI/ML on the Edge: One of the best platforms for running TinyML models for real-time inference without cloud dependency
• Massive Community & Library Support: Thousands of tutorials, example sketches, and the official ArduinoBLE, Arduino_LSM9DS1, and TensorFlowLite libraries

Perfect For

• General-purpose embedded-systems prototyping for makers and engineering students
• Custom firmware development for connected or standalone devices
• Teaching platforms for microcontroller-programming courses

Arduino Nano 33 BLE with Headers - Compact BLE 5.0 Board with nRF52840 & 9-Axis IMU

Build powerful Bluetooth Low Energy projects with the Arduino Nano 33 BLE with Headers - featuring the Nordic nRF52840 processor, onboard 9-axis IMU (LSM9DS1), and pre-soldered headers for instant breadboard prototyping. Ideal for wearables, gesture recognition, IoT sensors, and TinyML applications. Available now at Tech Depot India, Bengaluru, with fast shipping and full technical support.
