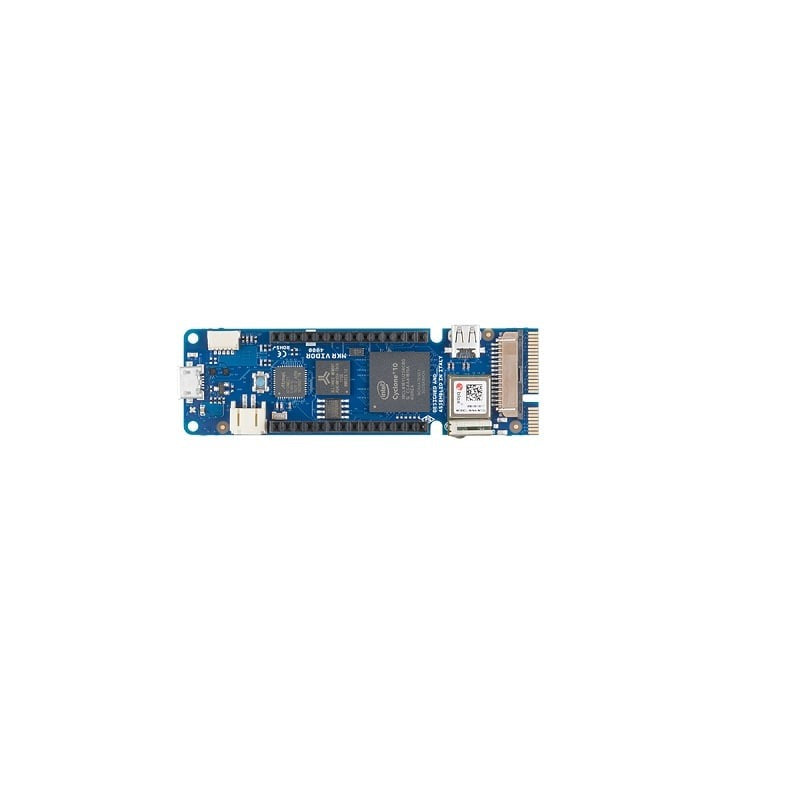

Arduino MKR Vidor 4000

The Arduino MKR Vidor 4000 is a arduino + microcontroller component used by makers, students and engineers for electronics and embedded-systems projects.

Unleash the power of FPGA with the Arduino MKR Vidor 4000 - a compact, feature-rich development board combining an ARM Cortex-M0+ microcontroller with an Intel Cyclone 10 FPGA for hardware-accelerated computing, real-time video processing, and advanced IoT applications. Available now at Tech Depot India, Bengaluru with fast shipping and full technical support.

Specifications

• Board: Arduino MKR Vidor 4000
• Microcontroller: SAMD21 Cortex-M0+ 32-bit ARM (48 MHz)
• FPGA: Intel Cyclone 10CL016 - 16,000 Logic Elements
• Flash Memory: 2 MB (MCU) + 8 MB SRAM (FPGA) + 2 MB QSPI Flash
• Connectivity: Wi-Fi (u-blox NINA-W102), Bluetooth 4.2 (BLE)
• Video: Micro HDMI output (up to 720p)
• Camera Interface: MIPI camera connector (compatible with OV2640 and similar)
• Digital I/O Pins: 22 (12 PWM capable)
• Analog Input Pins: 8 (8/10/12-bit ADC)
• Communication: UART, SPI, I2C, I2S

Why Choose Arduino MKR Vidor 4000?

100% Authentic

GST Invoice - A GST invoice is included with every order.

Expert Support - Dedicated technical help on WhatsApp and email.

Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.

Trusted by Makers - Used by students, hobbyists and professionals nationwide.

Key Features of Arduino MKR Vidor 4000

• FPGA + MCU in One Board: The Intel Cyclone 10 FPGA with 16,000 logic elements runs alongside the SAMD21 ARM processor, enabling hardware-level parallel processing that software alone cannot achieve.
• Real-Time Video & Image Processing: Built-in Micro HDMI output and MIPI camera connector let you build computer vision, video streaming, and display applications directly on the board.
• Wi-Fi & Bluetooth Built In: The u-blox NINA-W102 module provides robust Wi-Fi and BLE 4.2 connectivity for cloud-connected IoT projects with no additional shields required.
• Hardware-Level Security: The ATECC508A crypto chip enables secure boot, encrypted communication, and hardware-based key storage for production-grade security.
• MKR Ecosystem Compatibility: Plug in any MKR shield - GPS, motor carrier, ENV sensor, RS-485, Ethernet, NB-IoT, and more - for rapid prototyping and expansion.
• Arduino IDE + FPGA IP Blocks: Program the MCU with familiar Arduino code and configure the FPGA using pre-built IP blocks - no Verilog or VHDL expertise required to get started.
• Battery Ready: Onboard Li-Po charger lets you power portable and remote deployments with a single-cell 3.7 V battery.
• Intel Cyclone 10 FPGA: With 16,000 logic elements, the FPGA can be configured for custom hardware functions - high-speed signal processing, parallel sensor reading, custom communication protocols, audio/video encoding, and motor control - all executing in real-time without loading the main CPU.
• SAMD21 ARM Cortex-M0+: The proven 32-bit microcontroller handles application logic, sensor interfacing, Wi-Fi/BLE communication, and orchestrates FPGA operations through a seamless bridge.
• Micro HDMI Output: Drive displays up to 720p resolution directly from the FPGA for UI dashboards, camera feeds, image processing visualization, and retro gaming applications.

Perfect For

• Wi-Fi/IoT connected projects that need remote monitoring or control
• Cloud-connected dashboards (Blynk, ThingSpeak, MQTT-based) for makers
• Low-power wide-area or connected sensor-network builds
• General-purpose embedded-systems prototyping for makers and engineering students
