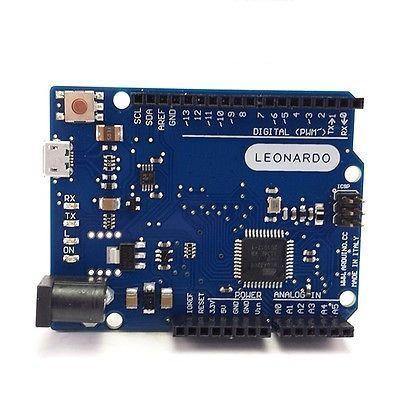

Arduino Leonardo R3 Compatible Board
Build USB-native projects with this Arduino Leonardo R3 compatible board featuring the ATmega32U4 microcontroller with built-in USB communication. Unlike other Arduino boards, the Leonardo eliminates the need for a secondary processor, allowing it to appear as a mouse, keyboard, or joystick to a connected computer. Available now from The Tech Depot, Bengaluru with fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support.
Specifications
| Board Type | Arduino Leonardo R3 Compatible |
| Microcontroller | ATmega32U4 |
| Operating Voltage | 5V |
| Input Voltage (Recommended) | 7-12V |
| Input Voltage (Limit) | 6-20V |
| Digital I/O Pins | 20 (7 PWM capable) |
| Analog Input Pins | 12 |
| DC Current per I/O Pin | 40 mA |
| DC Current for 3.3V Pin | 50 mA |
| Flash Memory | 32 KB (4 KB used by bootloader) |
| SRAM | 2.5 KB |
| EEPROM | 1 KB |
| Clock Speed | 16 MHz |
| USB Connector | Micro-USB |
| USB Communication | Built-in USB (HID device capable) |
| Length | 68.6 mm |
| Width | 53.3 mm |
| Weight | ~20 g |
| Compatibility | Arduino IDE, shields, and libraries |
| Origin | High-quality compatible board |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Why Choose the Arduino Leonardo R3 Compatible Board?
- Native USB Communication: ATmega32U4 handles USB directly - emulate a keyboard, mouse, joystick, or MIDI controller without additional hardware
- More Analog Inputs: 12 analog input channels compared to 6 on the Uno, ideal for sensor-heavy projects
- 20 Digital I/O Pins: 7 PWM outputs and 12 analog inputs give you maximum flexibility for complex designs
- Full Arduino IDE Compatibility: Program using the familiar Arduino IDE with access to thousands of libraries and community resources
- Shield Compatible: Standard Arduino R3 form factor supports most existing Arduino shields and accessories
- Micro-USB Connector: Modern, widely available connector for programming and power delivery
- Cost-Effective: High-quality compatible board delivering identical performance at an accessible price point
- Reliable Quality: Tested and verified for consistent performance across all pins and peripherals
- Fast 1-5 days shipping: Ships from our Bengaluru warehouse to most locations across India
- Expert Technical Support: Dedicated assistance via email and WhatsApp for your projects
Key Features Explained
- Built-in USB HID: The ATmega32U4 appears as a native USB device to your computer, enabling you to send keystrokes, mouse movements, and gamepad inputs directly - no external chips or drivers required
- Separate USB and Serial: The Leonardo provides a virtual serial port over USB for programming and debugging while keeping hardware serial (pins 0 and 1) free for communication with other devices like GPS modules or Bluetooth
- 12 Analog Channels: Pins A0-A11 provide 10-bit analog-to-digital conversion, with some analog inputs mapped to digital pins (D4, D6, D8, D9, D10, D12) for versatile sensor integration
- PWM Outputs: Seven pins support pulse-width modulation for motor speed control, LED dimming, servo control, and audio generation
- SPI and I2C Support: Dedicated SPI header and I2C (TWI) on pins 2 (SDA) and 3 (SCL) for connecting displays, sensors, memory modules, and other peripherals
- External Interrupts: Five interrupt pins (0, 1, 2, 3, 7) for responsive real-time event handling in time-critical applications
Project Ideas
- Custom USB Keyboard/Macropad: Build a programmable keyboard, shortcut pad, or stream deck with custom key mappings using the Leonardo's native HID capabilities
- USB Game Controller: Design your own joystick, flight stick, racing wheel, or arcade controller that connects directly as a standard gamepad
- MIDI Controller: Create custom MIDI instruments
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
