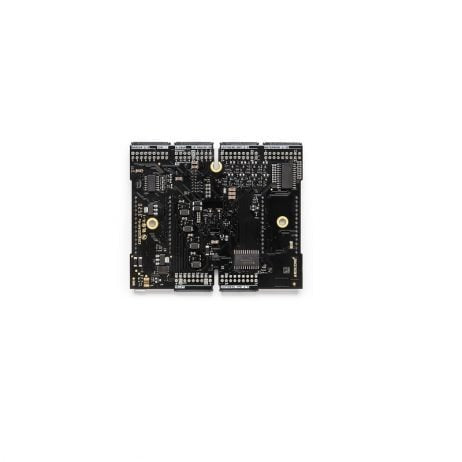

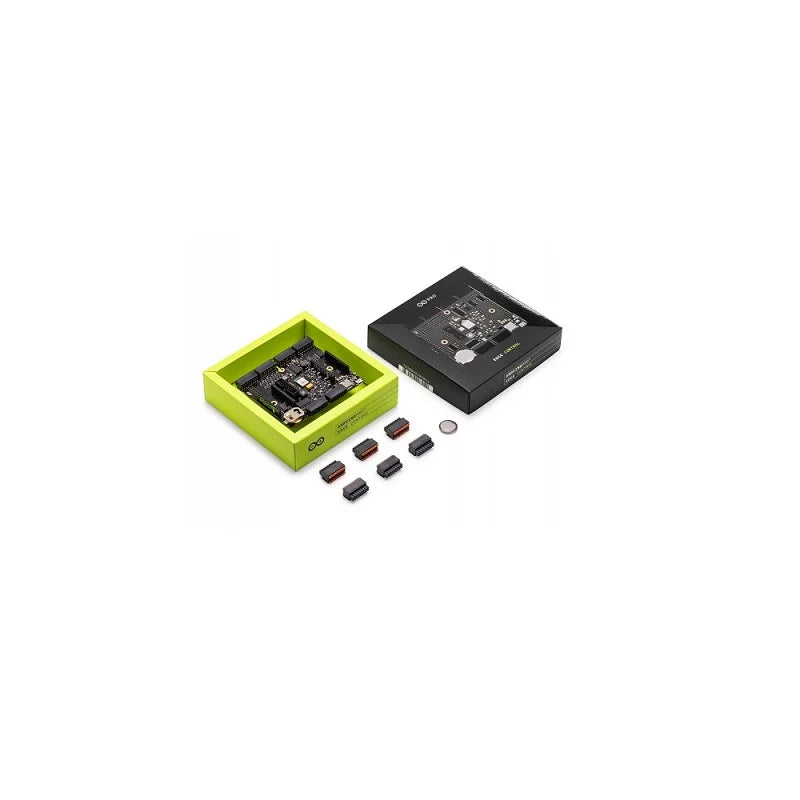

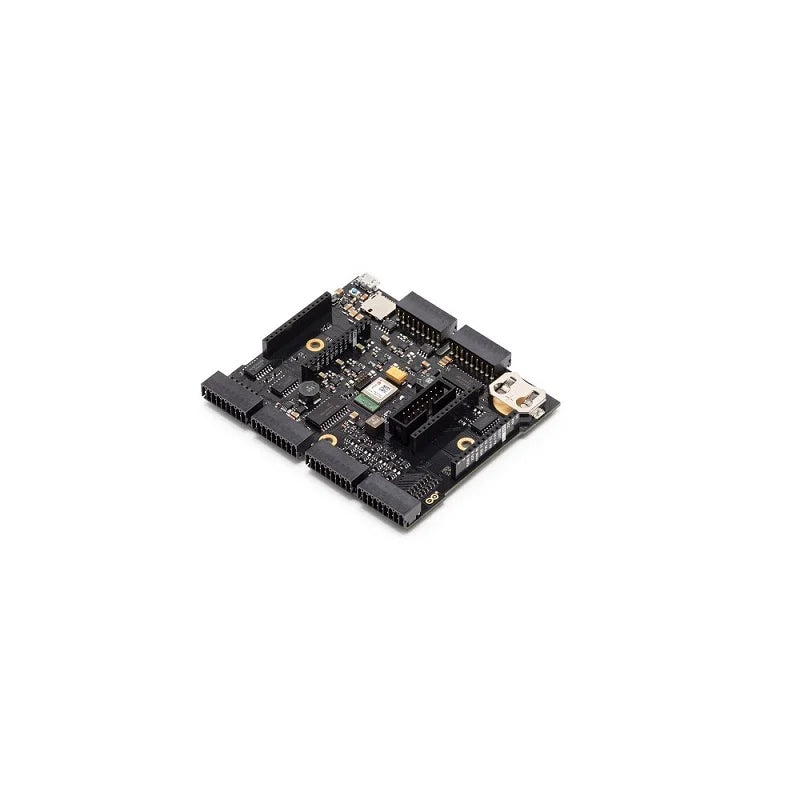

Arduino Edge Control
Rs. 29,910.00
Sale price
Rs. 29,910.00
Regular price
Skip to product information
In stock
Arduino Edge Control
Rs. 29,910.00
Sale price
Rs. 29,910.00
Regular price
TTD-17861
🚚
Delivery in 8–10 days
Shipping calculated at checkout.
Specifications
| Board Name | Arduino Edge Control (SKU: AKX00034) |
| Microcontroller | Nordic Semiconductor nRF52840 (Arm Cortex-M4F @ 64 MHz) |
| Connectivity | LoRa (via MKR WAN 1310 slot), Wi-Fi/Cellular (via MKR board slots), Bluetooth 5.0 (onboard) |
| MKR Slots | 2x MKR-compatible board slots for modular connectivity expansion |
| Analog Inputs | 8x configurable analog/digital input channels (0-5 V, 16-bit ADC) |
| 4-20 mA Inputs | 4x industrial-standard 4-20 mA sensor inputs |
| Latching Relay Outputs | 6x latching relay outputs (for valves, pumps, actuators) |
| Watermark Sensor Inputs | 6x dedicated Watermark soil moisture sensor inputs |
| PWM Outputs | 2x solid-state relay outputs |
| Power Supply | 12 V nominal (9-36 V input range via barrel jack or terminal block) |
| Solar Charging | Integrated solar panel charge controller (6 W panel compatible) |
| Battery | Li-Po battery connector with onboard battery management |
| Real-Time Clock | Onboard RTC with CR2032 coin cell backup |
| Storage | MicroSD card slot for local data logging |
| Operating Temperature | -40 degreesC to +85 degreesC (industrial grade) |
| Enclosure Compatibility | Designed for IP66/IP67 waterproof enclosures (enclosure sold separately) |
| Dimensions | Approx. 130 x 88 mm |
| Programming | Arduino IDE, Arduino Cloud (IoT), PlatformIO |
| Cloud Integration | Arduino Cloud for remote monitoring, OTA updates, and dashboards |
| Origin | 100% Original / Authentic Arduino product |
- Board Name: Arduino Edge Control (SKU: AKX00034)
- Microcontroller: Nordic Semiconductor nRF52840 (Arm Cortex-M4F @ 64 MHz)
- Connectivity: LoRa (via MKR WAN 1310 slot), Wi-Fi/Cellular (via MKR board slots), Bluetooth 5.0 (onboard)
- MKR Slots: 2x MKR-compatible board slots for modular connectivity expansion
- Analog Inputs: 8x configurable analog/digital input channels (0-5 V, 16-bit ADC)
- 4-20 mA Inputs: 4x industrial-standard 4-20 mA sensor inputs
- Latching Relay Outputs: 6x latching relay outputs (for valves, pumps, actuators)
- Watermark Sensor Inputs: 6x dedicated Watermark soil moisture sensor inputs
- PWM Outputs: 2x solid-state relay outputs
- Power Supply: 12 V nominal (9-36 V input range via barrel jack or terminal block)
Why Choose Arduino Edge Control?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Arduino Edge Control
- Purpose-Built for Agriculture & Outdoor IoT: Unlike general-purpose boards, the Edge Control is specifically engineered for field deployment with industrial-grade sensor inputs, relay outputs, and environmental resilience.
- Modular Connectivity via MKR Slots: Two MKR-compatible slots let you plug in an MKR WAN 1310 for LoRa, MKR NB 1500 for NB-IoT/LTE-M, MKR WiFi 1010 for Wi-Fi, or MKR GSM 1400 for cellular - mix and match as your deployment demands.
- Solar-Powered & Battery-Backed: Integrated solar charge controller and Li-Po battery management enable fully autonomous, off-grid operation for months or years without maintenance.
- Industrial Sensor Compatibility: Native support for 4-20 mA industrial sensors, Watermark soil moisture probes, and 0-5 V analog sensors eliminates the need for external signal conditioning.
- Latching Relay Outputs: Six latching relays consume zero power to maintain state - critical for battery-powered systems controlling irrigation valves, pumps, and motorized actuators.
- Local Data Logging: MicroSD card slot ensures no data loss during connectivity outages; logs can be synced to the cloud once the connection is restored.
- Arduino Cloud Integration: Full support for Arduino Cloud dashboards, OTA firmware updates, remote variable monitoring, and webhook/API integrations for enterprise systems.
- Ultra-Low Power Design: The nRF52840 processor combined with latching relays and intelligent sleep modes enables operation on minimal solar harvesting even in low-sunlight conditions.
- Onboard RTC: Battery-backed real-time clock enables precise time-stamped data logging and scheduled actuator control even without network time synchronization.
- Extreme Temperature Range: Rated from -40 degreesC to +85 degreesC, suitable for deployment in deserts, high-altitude farms, cold storage facilities, and tropical environments.
Perfect For
- General-purpose embedded-systems prototyping for makers and engineering students
- Custom firmware development for connected or standalone devices
- Teaching platforms for microcontroller-programming courses
Arduino Edge Control - Smart Agriculture & Remote Monitoring Board
The Arduino Edge Control is a purpose-built, low-power board designed for precision agriculture, remote environmental monitoring, and outdoor edge computing applications. Engineered to operate in harsh field conditions, it integrates sensor connectivity, actuator control, waterproof enclosure compatibility, and LoRa/cellular connectivity - all managed through the Arduino ecosystem. Available now at Tech Depot India, Bengaluru
