Arducam Wide Angle Day-Night Vision for Raspberry Pi Camera with Acrylic Stand Case

Arducam Wide Angle Day-Night Vision for Raspberry Pi Camera with Acrylic Stand Case

This is Arducam Wide Angle Day-Night Vision for Raspberry Pi Camera with Acrylic Stand Case

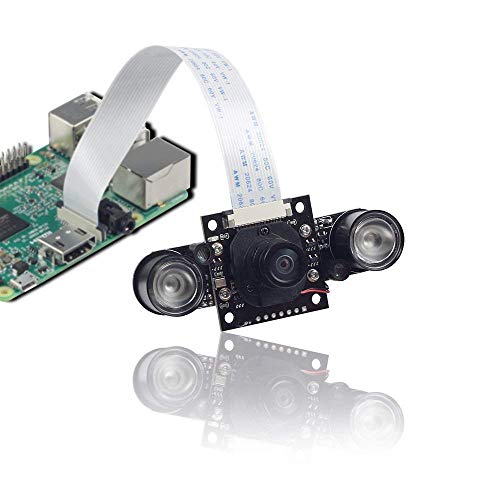

This 5MP NOIR pi video camera is designed for both daylight and night vision photography with a build-in motorized(switchable) IR cut filter and two infrared LED illuminator boards. The motorized IR cut filter can be switched ON/OFF automatically, and the infrared LEDs are automatically ON/OFF according to the light environment. The camera is fully supported all the Raspberry Pi board versions including Pi 4, Pi 3, and Pi Zero. It can be widely used in wildlife photography, agriculture NDVI applications and etc.

Note: This product has been discontinued. Consider alternative SKU - 869371

https://techdepot.in/product/arducam-5mp-ov5647-noir-motorized-ircut-filter-m12-mount-ls-30188-lens-camera-module-for-raspberry-pi/

Specifications

1. Sensor:
   1. Sensor size: 1/4" (OV5647)
   2. Resolution: 5MP 2592x1944
   3. Video: 1080p 30 fps, 720p 60fps, 480p 90fps
2. Lense:
   1. Focal Length: 2.25 mm (You can screw the lens for focusing*)
   2. Horizontal Field of View (HFOV): 85 degrees
   3. Thread Size: M12xP0.5
3. Camera Board
4. 1. 3V power output for IR LED
   2. Built-in Motorized IR Cut filter
   3. Dimension: 36x36 mm, 4 mounting holes

Why Choose Arducam Wide Angle Day-Night Vision for Raspberry Pi Camera with Acrylic Stand Case?

100% Authentic

GST Invoice - A GST invoice is included with every order.

Expert Support - Dedicated technical help on WhatsApp and email.

Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.

Trusted by Makers - Used by students, hobbyists and professionals nationwide.

Key Features of Arducam Wide Angle Day-Night Vision for Raspberry Pi Camera with Acrylic Stand Case

• Automatic day/night switching keeps footage usable around the clock without manual filter changes
• Wide-angle lens covers more of a room or outdoor area than a standard-angle camera
• Comes with its own acrylic stand case, so no separate mount needs to be sourced or 3D-printed
• Ready-to-place design suits both desk and shelf mounting out of the box

Perfect For

• 24-hour home and workshop surveillance on Raspberry Pi
• DIY security cameras needing a ready-made stand
• Wide-area monitoring in variable lighting
• Robotics and Pi projects wanting a self-contained camera unit
• Machine vision and object-detection projects on Raspberry Pi, Jetson Nano or Arduino-based robots
• DIY surveillance and monitoring setups that need a compact CSI/USB camera module
• Computer-vision experiments with OpenCV, TensorFlow Lite or similar frameworks

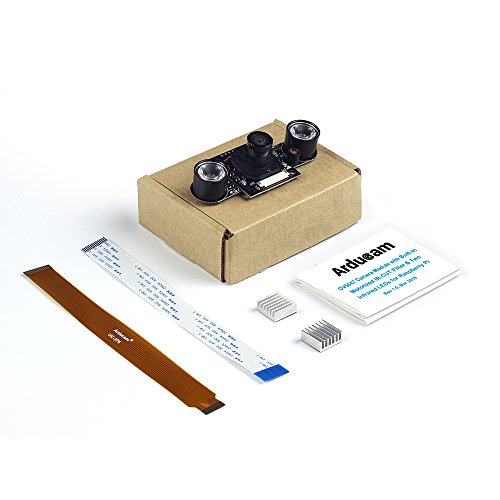

Package Includes:

1x Camera Board with 5MP OV5467 sensor and IR corrected lens

2x IR LED illuminator

2x Heat Sinks for IR Lights

1x 150 mm/5.9" FFC cable for Model A and B

1x 150 mm/5.9" FPC cable for Pi Zero models

1 x Acrylic Stand Case

Shop online at Tech Depot India - India's trusted electronics components store. Fast delivery across Bengaluru, Delhi, Hyderabad.

Download link

1. To use this camera, it is necessary to do hardware and software setup. To do both, please follow the instructions given in the link.

Features:

1. Switchable IR Cut Filter: On for daylight color accuracy, off for IR night vision.
2. Software controllable
3. IR Corrected Lens: Low dispersion glass that greatly reduces Focus Shift and Chromatic Aberration, and focus light of different wavelengths on to an image plane at the same location unlike the other lenses
4. IR LED Illuminator: Triggered by the light sensor that decides whether the light condition is poor and needs to be improved
5. 3V power output for IR LED
6. Built-in Motorized IR Cut filter
