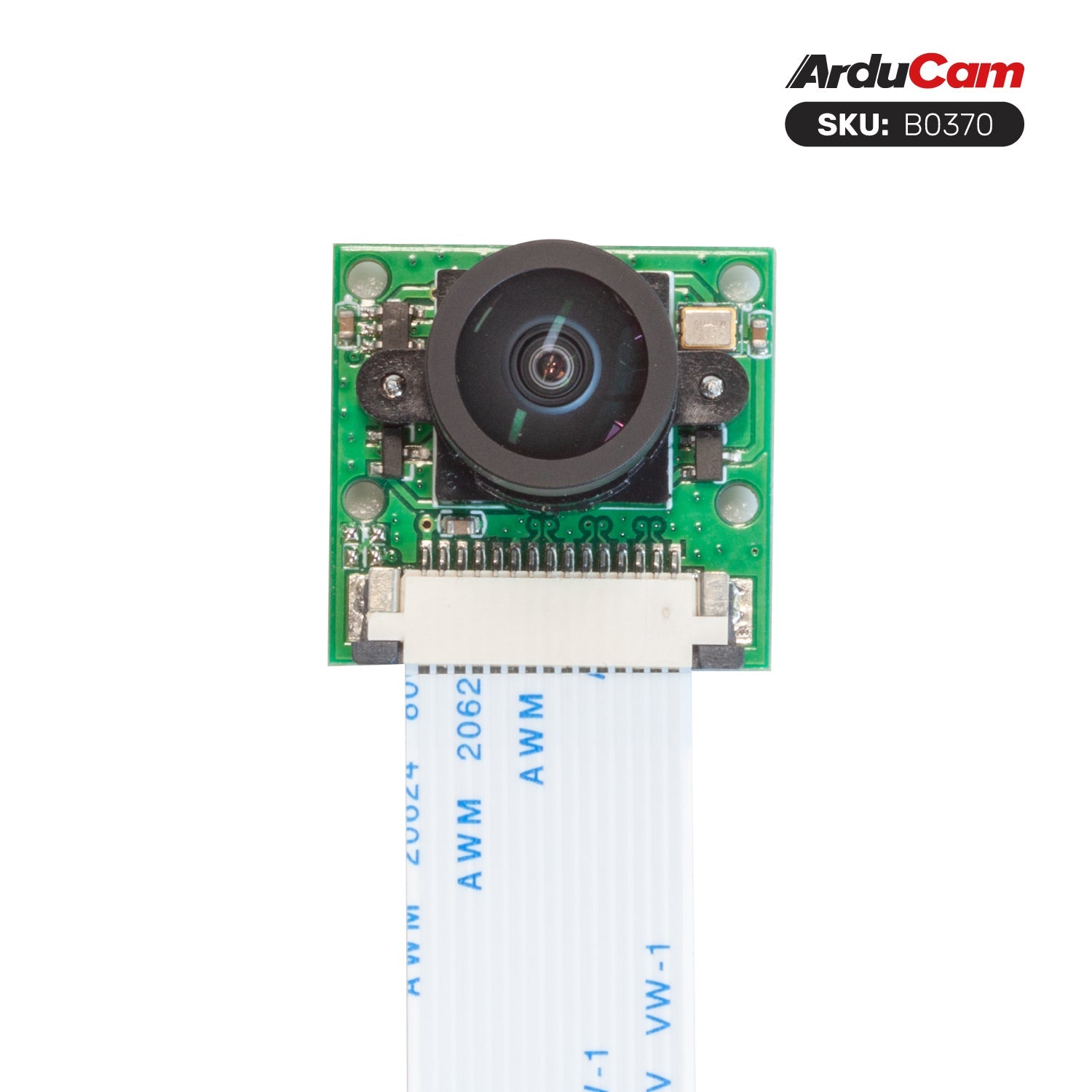

Arducam MINI OV5647 Wide angle camera module for Raspberry Pi 4/3/3 B+, and More
Arducam MINI OV5647 Wide angle camera module for Raspberry Pi 4/3/3 B+, and More
Shipping calculated at checkout.
Arducam MINI OV5647 Wide angle camera module for Raspberry Pi 4/3/3 B+, and More
The MINI OV5647 Wide angle camera is a custom-designed add-on for Raspberry Pi. It attaches to Raspberry Pi by way of one of the two small sockets on the board's upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing with cameras.
The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data. The camera is connected to the BCM2835 processor on the Pi via the CSI bus, a higher bandwidth link that carries pixel data from the camera back to the processor. This bus travels along the ribbon cable that attaches the camera board to the Pi.
The camera is supported in the latest version of Raspbian, Raspberry Pi's preferred operating system.
Applications:
- Cellular phones, PDAs, Toys
- Other battery-powered products
- Where the official module fails in terms of focusing and Field of View,etc.
Specifications
| Sensor | OmniVision OV5647 |
| Resolution | 5 Megapixels |
| Lens | Wide-angle |
| Compatibility | Raspberry Pi 4 / 3 / 3B+ |
| Form Factor | Mini module |
Why Choose Arducam MINI OV5647 Wide angle camera module for Raspberry Pi 4/3/3 B+, and More?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Arducam MINI OV5647 Wide angle camera module for Raspberry Pi 4/3/3 B+, and More
- Lens holder: M12x0.5
- 5MPixel sensor
- Integral IR filter
- Max frame rate: 30fps
- Connection by flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector S5 on Raspberry Pi computer board
- The Camera Lens for Raspberry Pi Camera Board is LN060
- OmniVision 5647 sensor in a fixed-focus module with replaceable Lense
- Wide-angle lens captures a broader scene than the standard narrow-angle Pi camera lens
- Mini form factor keeps the module compact for space-constrained mounts
- OV5647 sensor is well supported across the standard Raspberry Pi camera software stack
- Compatible across multiple Raspberry Pi generations (3, 3B+, 4)
Perfect For
- Wide field-of-view Raspberry Pi surveillance and monitoring
- Robotics vision needing a broader capture angle
- Compact camera mounting in enclosures
- General Pi photography and machine-vision projects
- Machine vision and object-detection projects on Raspberry Pi, Jetson Nano or Arduino-based robots
- DIY surveillance and monitoring setups that need a compact CSI/USB camera module
- Computer-vision experiments with OpenCV, TensorFlow Lite or similar frameworks
Package Includes:
1 x 5 Megapixels OV5647 Sensor Camera Module
1 x 15cm 15pin FPC cable
