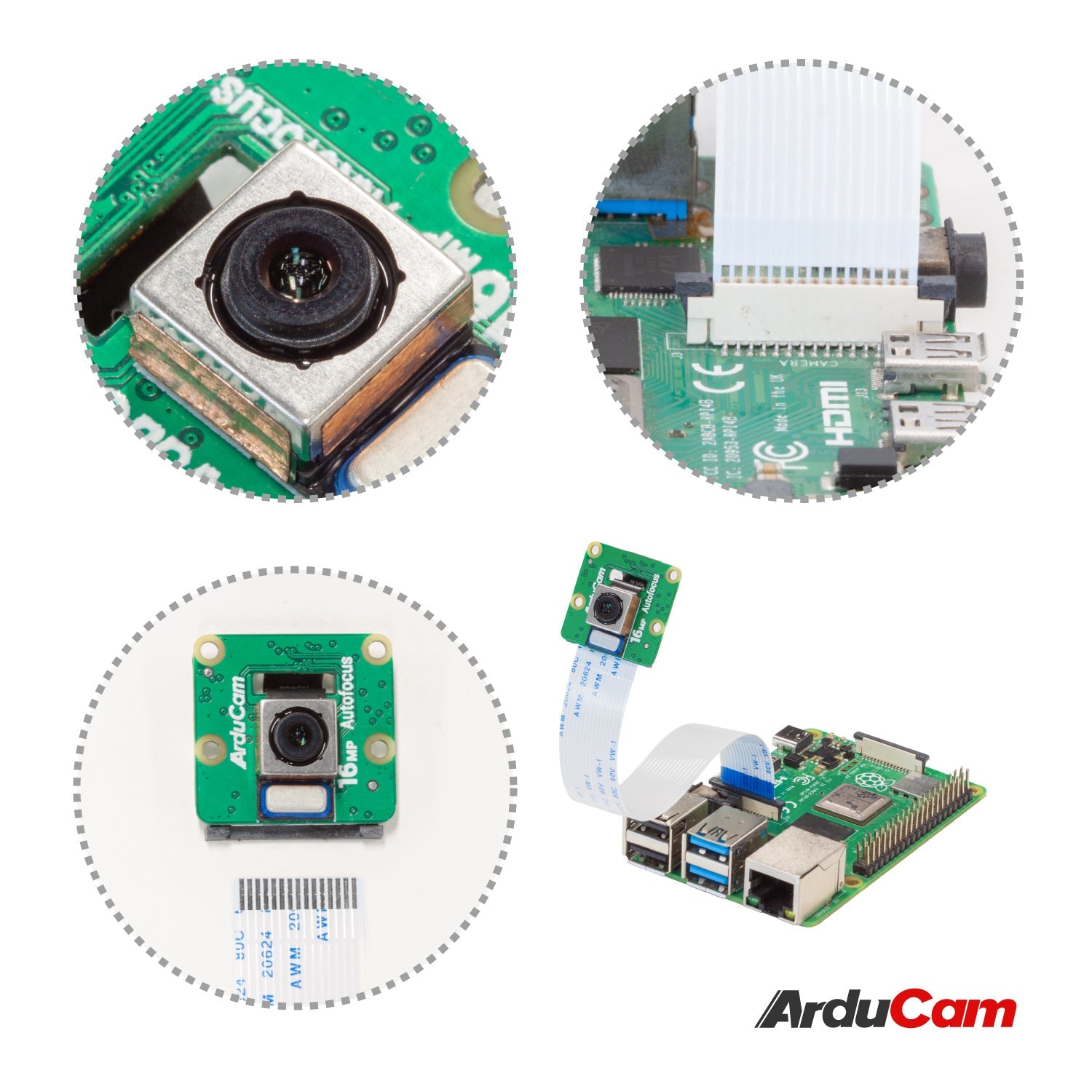

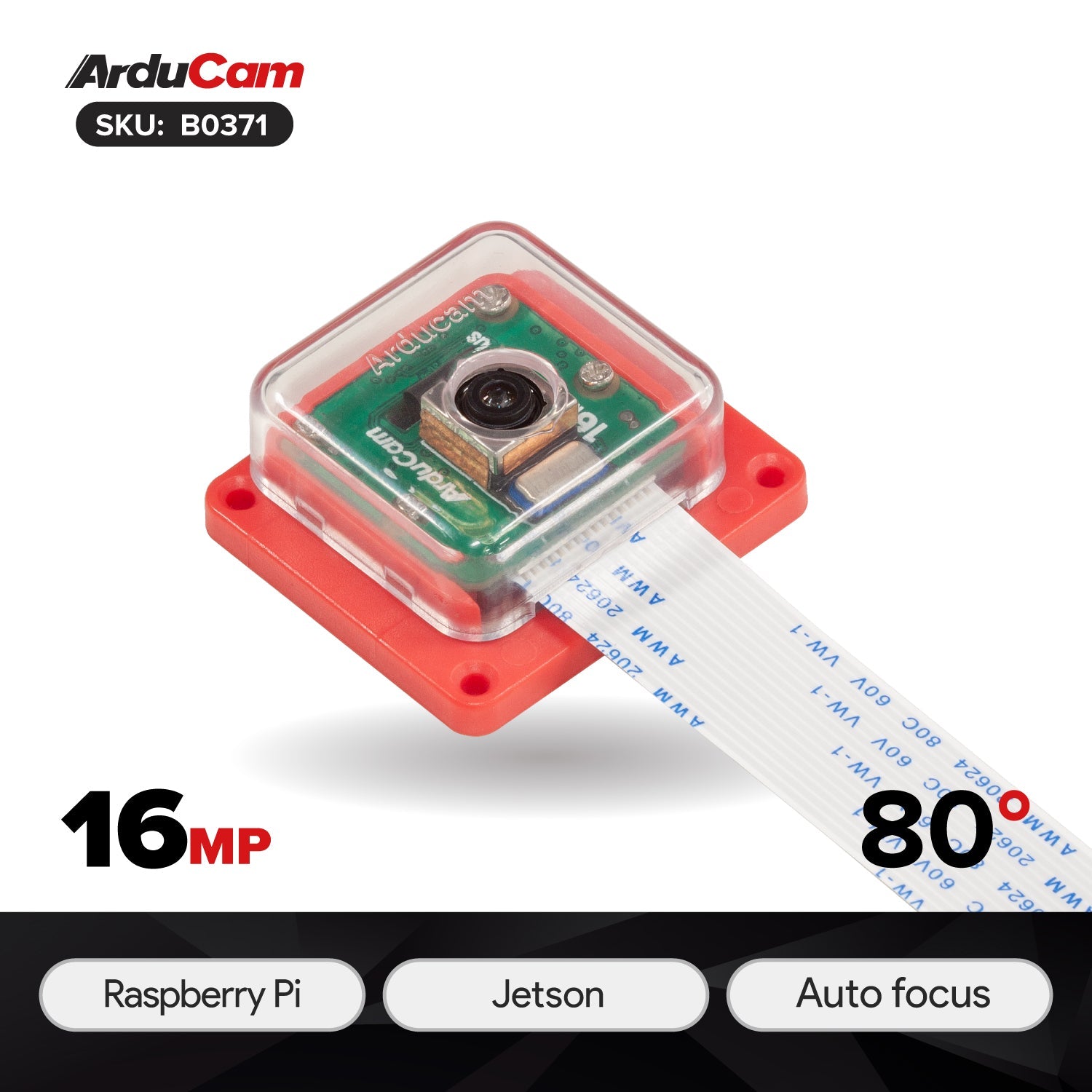

Arducam IMX519 Autofocus Camera Module for Raspberry Pi and Jetson Nano

Capture stunning 16MP images and video with the Arducam IMX519 Autofocus Camera Module - engineered for Raspberry Pi and NVIDIA Jetson Nano platforms. Featuring advanced PDAF (Phase Detection Autofocus) technology and the Sony IMX519 sensor, this module delivers razor-sharp focus and exceptional image quality for computer vision, photography, and embedded AI projects. Available at Tech Depot India, Bengaluru - trusted by makers and professionals across India.

Specifications

• Product Name: Arducam IMX519 Autofocus Camera Module
• Image Sensor: Sony IMX519 CMOS
• Resolution: 16 Megapixels (4656 x 3496)
• Autofocus Type: PDAF (Phase Detection Autofocus)
• Focus Range: 8cm to Infinity
• Video Modes: 1080p @ 30fps, 720p @ 60fps
• Field of View: 84 degrees Diagonal
• Interface: 15-pin MIPI CSI-2 Ribbon Cable
• Compatible Platforms: Raspberry Pi 4B, 3B+, 3B, Zero 2 W, CM3/CM4, NVIDIA Jetson Nano
• Operating Voltage: 3.3V (powered via CSI connector)

Why Choose Arducam IMX519 Autofocus Camera Module for Raspberry Pi and Jetson Nano?

100% Authentic

GST Invoice - A GST invoice is included with every order.

Expert Support - Dedicated technical help on WhatsApp and email.

Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.

Trusted by Makers - Used by students, hobbyists and professionals nationwide.

Key Features of Arducam IMX519 Autofocus Camera Module for Raspberry Pi and Jetson Nano

• 16MP Sony IMX519 Sensor: High-resolution 4656x3496 pixel imaging with excellent color reproduction and low-light performance.
• Hardware Autofocus (PDAF): Phase Detection Autofocus enables fast, precise, and reliable focusing - no manual adjustment needed.
• Motorized Focus Actuator: Built-in voice coil motor allows programmable focus control from macro to infinity.
• Raspberry Pi Compatible: Works with Raspberry Pi 4B, 3B+, 3B, Pi Zero 2 W, and Compute Module via standard 15-pin CSI ribbon cable.
• Jetson Nano Compatible: Fully supported on NVIDIA Jetson Nano for AI and machine learning camera applications.
• Video Recording: Supports 1080p at 30fps and 720p at 60fps video capture for smooth, high-quality footage.
• Compact Form Factor: Lightweight and small footprint - ideal for embedded systems, drones, robots, and portable devices.
• Open-Source Driver Support: Arducam provides libcamera-compatible drivers and comprehensive software libraries for easy integration.
• Superior Autofocus: Unlike the standard Raspberry Pi Camera Module, the IMX519 features true hardware PDAF for fast, accurate focusing.
• 16MP Resolution: Four times the resolution of the Raspberry Pi Camera V2 (8MP) - capture finer details for vision and imaging applications.
• Plug-and-Play Setup: Standard CSI connector ensures seamless hardware connection; Arducam drivers make software setup straightforward.

Perfect For

• AI & Computer Vision: Build object detection, facial recognition, and image classification systems on Raspberry Pi or Jetson Nano with high-resolution autofocus input.
• Timelapse & Photography: Create stunning 16MP timelapse sequences with automatic focus adjustment - ideal for nature, construction, and scientific documentation.
• Robotics & Drones: Equip your robot or drone with a compact, autofocus camera for navigation, mapping, obstacle detection, and aerial photography.
• Smart Surveillance System: Build an

Frequently Asked Questions

Customer Support

Email: techdepotindia@gmail.com

WhatsApp: Available for setup and troubleshooting help

Order your Arducam IMX519 Autofocus Camera Module for Raspberry Pi and Jetson Nano today and start building your next project.
