Arducam B0399B0283 64MP Camera and Pan-Tilt Kit for Raspberry Pi
Arducam B0399B0283 64MP Camera and Pan-Tilt Kit for Raspberry Pi
Shipping calculated at checkout.
Arducam B0399B0283 64MP Camera and Pan-Tilt Kit for Raspberry Pi

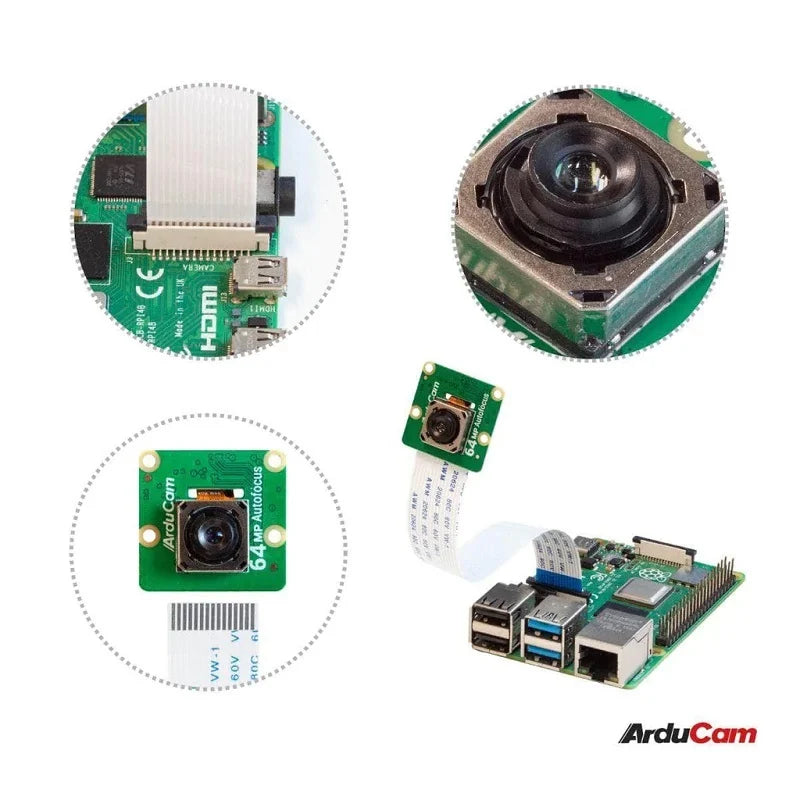

The Arducam 64MP Camera and Pan-Tilt Kit for Raspberry Pi is an advanced camera module designed to capture high-quality images and videos. Equipped with a 64-megapixel sensor, this camera module provides exceptional clarity and detail in every shot.
The Pan-Tilt Kit allows for remote control of the camera's movement, providing a versatile range of shooting angles and perspectives. The kit includes two servo motors that enable precise control over the camera's rotation and tilt, allowing for seamless tracking of moving objects or capturing panoramic shots.
With easy installation and compatibility with Raspberry Pi, this camera and the pan-tilt kit is a perfect solution for hobbyists and professionals alike who require high-quality imaging capabilities and flexibility in their projects. Whether for photography, videography, or surveillance applications, the 64MP Camera and Pan-Tilt Kit for Raspberry Pi is a reliable and efficient tool for capturing stunning visuals.
The most powerful pan-tilt camera kit ever made for Raspberry Pi. With our 64MP-AF camera, a handy PT system, and the help of OpenCV, you can build a mini face/movement tracking solution like this:
- Torque: 0.6 kg/cm at 3.6V, 0.8 kg/cm at 4.8V
- Operating Speed: 0.13sec/60 degrees at 3.6V, 0.09sec/60 degrees at 4.8V
- Operating Voltage: 3.6v4.8v
- Operating Current: 350mA
- Dead Band: 3 sec
- Dimension: 20mm x 8.75mm x 22mm
- PWM resolution: 12-bit
- Communication interface: I2C
- Operating voltage: 3V-5V
- Dimension: 38mm x 28mm
Digital Servo:
Customized Control Board
Specifications
| Resolution | 64MP |
| Compatible Platform | Raspberry Pi |
- PTZ-capable: pan-tilt bracket with a camera that supports digital zooming.
- Autofocus: AF/Manual/Continuous-AF out of the box.
- Easy to use: compatible with the official software. (libcamera)
- V1/V2 ready: bracket also supports any camera in v1/v2 form factors.
- Optical Size: Type 1/1.7 9.25 mm Diagonal (7.4x5.SS mm)
- Focus Type: Manual/Auto
Why Choose Arducam B0399B0283 64MP Camera and Pan-Tilt Kit for Raspberry Pi?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Arducam B0399B0283 64MP Camera and Pan-Tilt Kit for Raspberry Pi
- PTZ-capable: pan-tilt bracket with a camera that supports digital zooming.
- 64-megapixel: ultra-high resolution for Pi.
- Autofocus: AF/Manual/Continuous-AF out of the box.
- Easy to use: compatible with the official software. (libcamera)
- V1/V2 ready: bracket also supports any camera in v1/v2 form factors.
- Camera module designed to interface directly with the listed single-board computer
- Compact PCB footprint suited to embedded and enclosure-mounted builds
- Plug-in module for Raspberry Pi
Perfect For
- Computer vision and machine-learning projects on a Raspberry Pi or Jetson platform
- Robotics navigation, object detection and tracking
- DIY security and monitoring camera projects
- Embedded imaging for kiosks, inspection rigs and automation
- Computer vision and object-detection prototypes on Raspberry Pi / Jetson boards
- Time-lapse photography and remote monitoring setups
- DIY security and surveillance camera builds
- Robotics and drone vision systems
Package Includes
1 x 64MP-AF Camera
1 x Pan-Tilt Kit

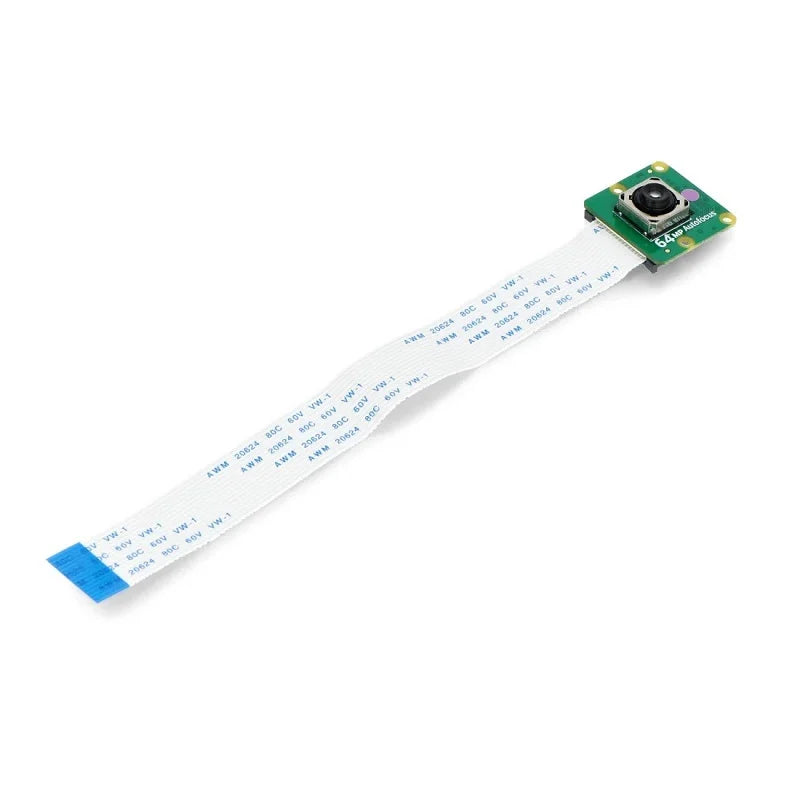

64MP-AF CAMERA:
- Optical Size: Type 1/1.7 9.25 mm Diagonal (7.4x5.SS mm)
- Focus Type: Manual/Auto
- Sensor Resolution: 9152X 6944
- Video Mode(on Raspberry Pi): 1080p30,720p60 and 640 x 480p60/90
- Video Mode(Camera Module): 1280x720@120fps 1920xl080@60fps 2312xl736@30fps 4624x3472@10fps 9152x6944@2.7fps3840x2160@20fps
- Color Filter: Quad Bayer Coding (QBC}
- Supported Platforms(Full Resolution - 64MP): Pi48/CM4
- Supported Platforms{Superpixel Resolution 16MP): Pi2/3/CM3/Zero W/Zero 2 W
- Raspberry Pi OS: Bullseye (32-bit/64-bit) (01/28/22 or later releases)
- Focus: 8cm~INF
- Focal ratio (F Stop): F1.8
- Focal length: 5.1mm
- View Angle: 84 Degrees (Diagonal)
- Dimensions: 25mm X 24mm
- Shutter Type: Rolling
- Output Format: JPEG/YUV/RGB/RAW 10
