Arducam B0270 12MP IMX477 IR-Cut Filter Auto Switch Camera for Raspberry Pi
Arducam B0270 12MP IMX477 IR-Cut Filter Auto Switch Camera for Raspberry Pi
Shipping calculated at checkout.
Arducam B0270 12MP IMX477 IR-Cut Filter Auto Switch Camera for Raspberry Pi
| Still Resolution | 12.3 Megapixels |
| Video Modes | 2028 x 1080p50, 2028 x 1520p40 and 1332 x 990p120 |
| Sensor Resolution | 4056 x 3040 pixels |
| Sensor image area | 6.287mm x 4.712 mm (7.9mm diagonal) |
| Pixel Size | 1.55 um x 1.55 um |
| Optical Size | 1/2.3" |
| IR Sensitivity | Switch the IR cut filter on/off automatically |
| Supported Platform | Raspberry Pi 5/4B/3B+/3/2/CM3/CM4/Zero W/Zero 2 W |
Specifications
- Still Resolution: 12.3 Megapixels
- Video Modes: 2028 x 1080p50, 2028 x 1520p40 and 1332 x 990p120
- Sensor Resolution: 4056 x 3040 pixels
- Sensor image area: 6.287mm x 4.712 mm (7.9mm diagonal)
- Pixel Size: 1.55 um x 1.55 um
- Optical Size: 1/2.3"
Why Choose Arducam B0270 12MP IMX477 IR-Cut Filter Auto Switch Camera for Raspberry Pi?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Arducam B0270 12MP IMX477 IR-Cut Filter Auto Switch Camera for Raspberry Pi
- This Arducam module uses the same 12MP image sensor as the Raspberry Pi High Quality Camera, but offers a mechanical IR cut-off filter switched automatically based on light condition.
- The official RPi HQ camera is not sensitive to infrared, and there won't be a NoIR version.
- On the contrary, this Arducam camera module not only offers sensitivity to infrared but also keeps the natural feeling during daylight.

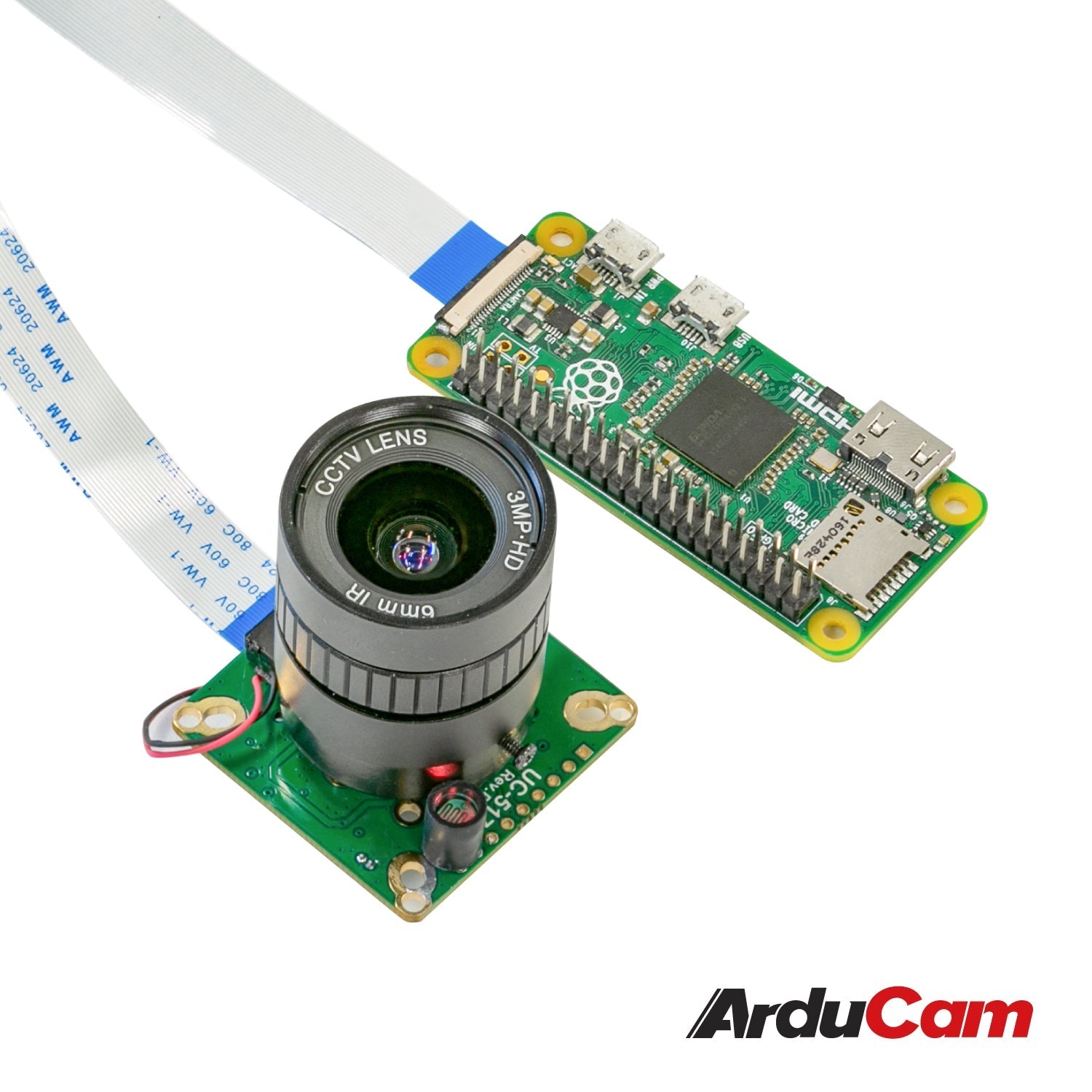

- It's fully compatible with all Raspberry Pi models with a camera connector.
- Switch the IR cut filter on/off automatically
Perfect For
- DSLR Camera Control
- Remote Viewing Camera
- Time-lapse Machine
- Security System
- Smart Video Doorbell
- Face Recognition
- Instant (Polaroid-Style) Camera, etc.
Overview
This Arducam module uses the same 12MP image sensor as the Raspberry Pi High Quality Camera, but offers a mechanical IR cut-off filter switched automatically based on light condition. The official RPi HQ camera is not sensitive to infrared, and there won't be a NoIR version. On the contrary, this Arducam camera module not only offers sensitivity to infrared but also keeps the natural feeling during daylight. It's fully compatible with all Raspberry Pi models with a camera connector.
Lens
| Focus Type | Manual Focus |
|---|---|
| Focal Length | 6mm |
| F.NO | F1.2 |
| Field of View(FOV) | 65 degrees(H) |
| Lens Mount | CS-Mount |
| MOD | 0.2mm |
| Back Focal Length | 7.53mm |
| Lens Dimension | 30x31mm |
Electrical & Mechanical
| CameraBoardSize | 38 x 38mm |
|---|---|
| Hole Pitch | Compatible with 29mm, 30mm, 34mm |
| Peaking Current | 300mA |
Package Including

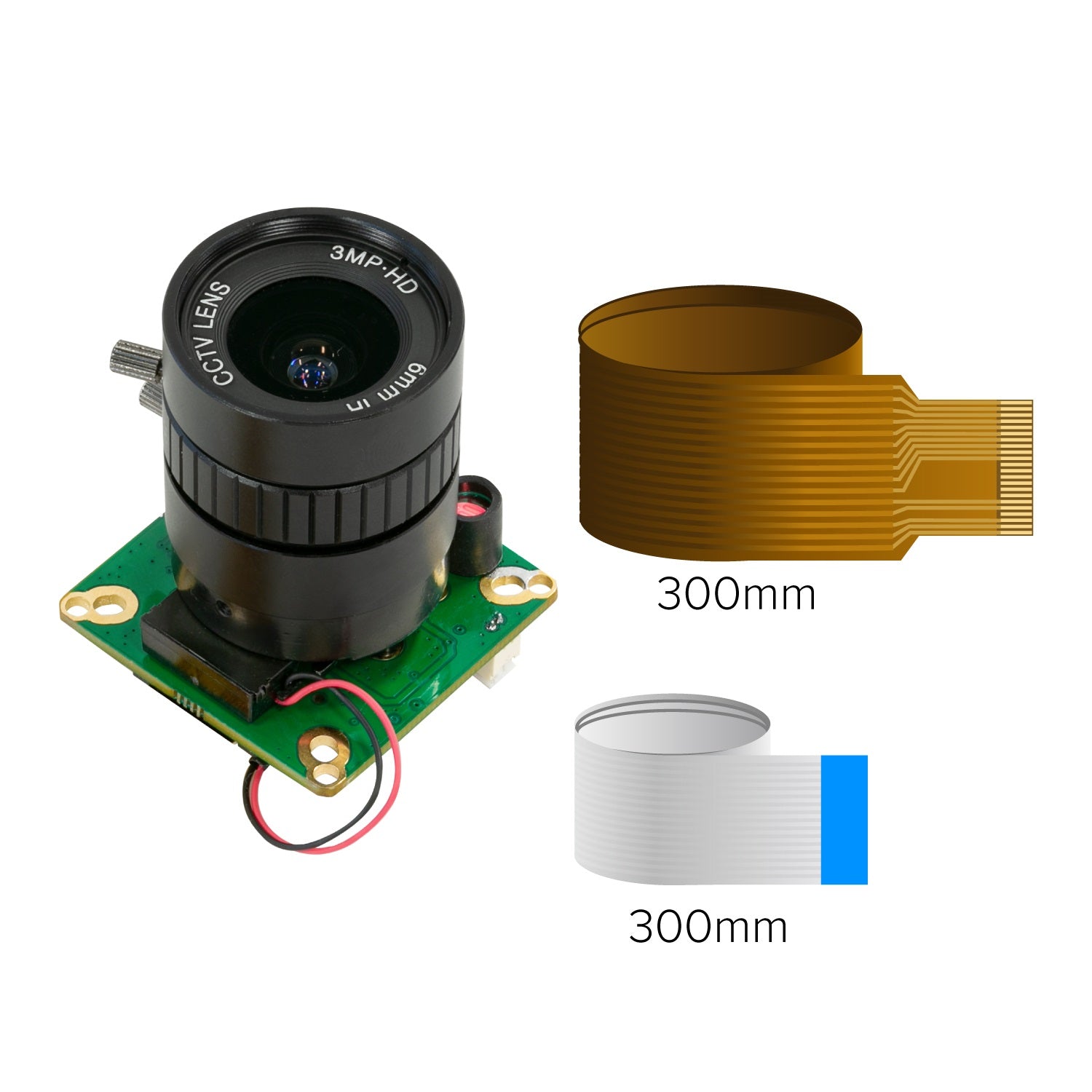

- 1 x 12.3MP IR-CUT camera module
- 1 x 6mm focal length CS-mount camera lens
- 1 x 300mm/11.8inch 22pin FPC cable for Pi Zero&W
- 1 x 300mm/11.8inch 15pin to 22pin FPC cable for Pi A&B series
