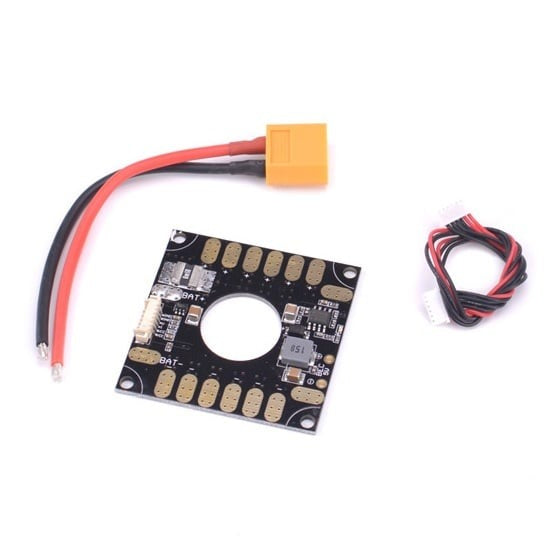

APM PIXHAWK 3in1 Power Module ESC Distribution Board
APM PIXHAWK 3in1 Power Module ESC Distribution Board
Shipping calculated at checkout.
APM PIXHAWK 3in1 Power Module ESC Dis
- The APM 2.5.2/2.6/2.8 Pixhawk Power Module is a simple way of providing your APM 2.5 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable.
- Voltage and current measurement configured for 5V ADC. Switching regulator outputs 5.3V and 3A max.
- 6-pos DF13 cable plugs directly to APM 2.5's 'PM' connector. Supports from 2 cell to 6 cell battery.
- The on-board switching regulator outputs 5.3V and a maximum of 2.25A from 2S-6S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.
- Note: The Power Module is only designed to power APM, an RC receiver and APM accessories (GPS, 3DR radio). It is not designed to power the servos. Use your aircraft's own ESC/BEC for that.
tribution Board
Shop online at Tech Depot India - India's trusted electronics components store. Fast delivery across Bengaluru, Delhi, Hyderabad.
Specifications
| Compatibility | APM and Pixhawk flight controllers |
| Function | Power module + ESC distribution, 3-in-1 |
| Typical output | Regulated BEC output for the flight controller |
Why Choose APM PIXHAWK 3in1 Power Module ESC Distribution Board?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of APM PIXHAWK 3in1 Power Module ESC Distribution Board
- Combines battery power sensing, voltage regulation and ESC distribution on one board instead of three separate parts
- Feeds the flight controller a clean regulated supply while also reporting battery voltage/current telemetry
- Compatible with the widely used APM and Pixhawk autopilot ecosystems
Perfect For
- Powering an APM or Pixhawk-based multirotor flight controller
- Getting battery voltage/current telemetry into flight-controller logs
- Simplifying the power wiring on a scratch-built drone
Frequently Asked Questions
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your APM PIXHAWK 3in1 Power Module ESC Distribution Board today and start building your next project.
