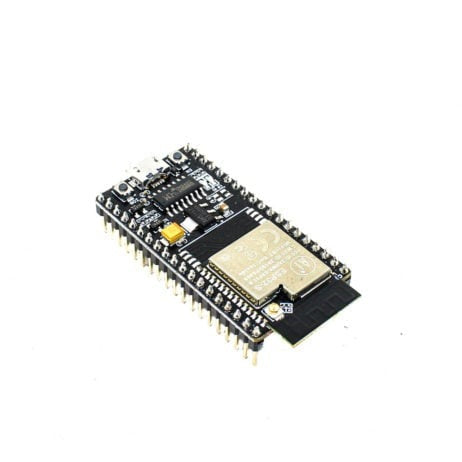

Ai Thinker NodeMCU-32S-ESP32 Development Board - IPEX Version
Unlock the full potential of IoT and wireless development with the Ai Thinker NodeMCU-32S-ESP32 Development Board featuring an IPEX (U.FL) antenna connector. Built around the powerful ESP-32S module with dual-core processing, integrated Wi-Fi and Bluetooth, and an external antenna interface for superior wireless range, this board is ideal for projects demanding reliable, long-range connectivity. Available now at The Tech Depot, Bengaluru, with fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support.
Specifications
| Board Model | NodeMCU-32S (IPEX/U.FL Antenna Version) |
| Manufacturer | Ai Thinker |
| Core Module | ESP-32S (ESP-WROOM-32 based) |
| Processor | Xtensa Dual-Core 32-bit LX6, up to 240 MHz |
| Flash Memory | 4 MB |
| SRAM | 520 KB |
| Wi-Fi | 802.11 b/g/n, 2.4 GHz (supports Station, SoftAP, and Station+SoftAP modes) |
| Bluetooth | Bluetooth v4.2 BR/EDR and BLE (Bluetooth Low Energy) |
| Antenna Interface | IPEX (U.FL) connector for external antenna |
| GPIO Pins | 38 pins total (30+ usable GPIOs with multiplexed functions) |
| ADC | 18 channels, 12-bit SAR ADC |
| DAC | 2 channels, 8-bit |
| Communication Interfaces | SPI, I2C, I2S, UART, CAN 2.0, IR, PWM, Touch Sensor (10 channels) |
| USB Interface | Micro-USB (for programming and power) |
| USB-to-Serial Chip | CP2102 / CH340 (varies by batch) |
| Operating Voltage | 3.3V (on-board regulator from 5V USB input) |
| Input Voltage | 5V via Micro-USB or VIN pin |
| Operating Temperature | -40 degreesC to +85 degreesC |
| Board Dimensions | Approx. 51 mm x 28 mm (compact, breadboard-friendly) |
| Programming Support | Arduino IDE, ESP-IDF, MicroPython, Lua, PlatformIO |
| Security Features | Hardware-accelerated AES, SHA-2, RSA, ECC, RNG |
| Low Power Modes | Deep Sleep current as low as 10 uA |
| Origin | Original/Authentic Ai Thinker product |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 Technical Support |
Why Choose the NodeMCU-32S-ESP32 IPEX Version?
- External Antenna Support (IPEX/U.FL): Unlike the standard PCB antenna version, the IPEX connector allows you to attach high-gain external antennas, dramatically extending Wi-Fi and Bluetooth range - perfect for outdoor IoT deployments, warehouse monitoring, and long-distance communication.
- Powerful Dual-Core ESP32 Processor: The Xtensa LX6 dual-core running at up to 240 MHz handles multitasking effortlessly - run Wi-Fi communication on one core while processing sensor data on the other.
- Wi-Fi + Bluetooth Combo: Integrated 2.4 GHz Wi-Fi and Bluetooth 4.2 (Classic + BLE) in a single chip eliminates the need for separate wireless modules, reducing cost and complexity.
- Rich Peripheral Set: With 30+ GPIOs, 18 ADC channels, 2 DAC channels, touch sensors, SPI, I2C, I2S, UART, CAN bus, and PWM, this board can interface with virtually any sensor, display, motor, or actuator.
- Ultra-Low Power Consumption: Deep sleep mode draws as little as 10 uA, making it ideal for battery-powered remote sensors, wearables, and solar-powered IoT nodes.
- Breadboard-Friendly Design: The compact form factor with dual-row pin headers fits standard breadboards for rapid prototyping without soldering.
- Multi-Platform Programming: Develop in your preferred environment - Arduino IDE for simplicity, ESP-IDF for professional-grade firmware, MicroPython for rapid scripting, or PlatformIO for advanced project management.
- Built-In Security: Hardware-accelerated encryption (AES, SHA-2, RSA, ECC) and a true
