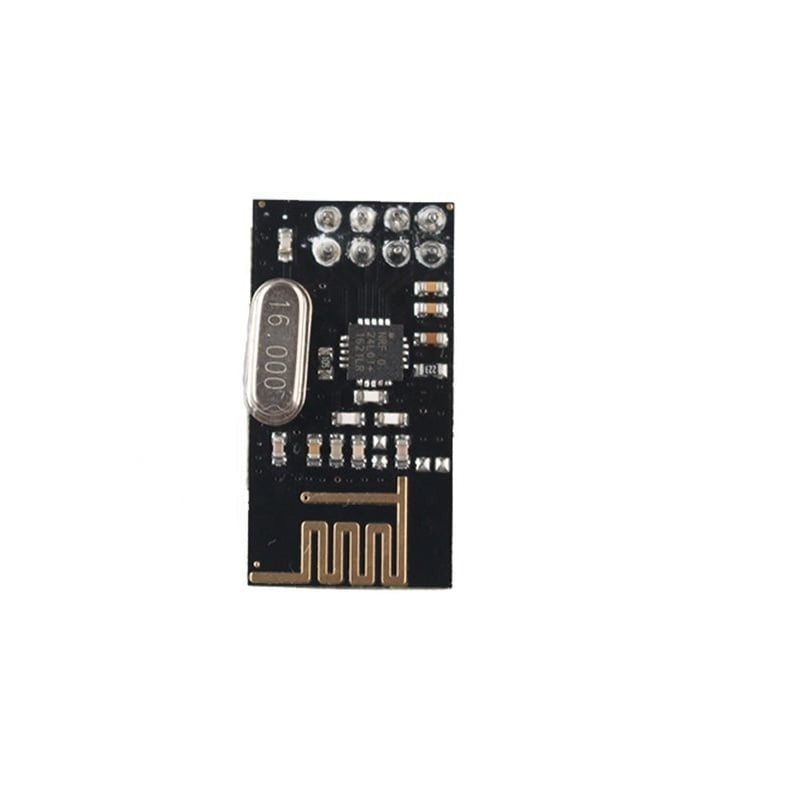

The Ai Thinker NF-01-N is a compact, low-power 2.4GHz wireless transceiver module based on the nRF24L01 chipset. Designed for reliable short-range wireless communication, it's an ideal drop-in solution for IoT devices, remote controls, sensor networks, and data telemetry projects. Available now from The Tech Depot, Bengaluru with fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support.
Specifications
| Module | Ai Thinker NF-01-N |
| Chipset | nRF24L01 compatible 2.4GHz RF transceiver |
| Frequency Band | 2.4GHz ISM band (2.400-2.525GHz) |
| Data Rate | 250kbps / 1Mbps / 2Mbps selectable |
| Modulation | GFSK |
| Operating Voltage | 1.9V-3.6V |
| Communication Interface | SPI (Serial Peripheral Interface) |
| Output Power | Up to 0dBm (1mW) |
| Receive Sensitivity | -85dBm at 1Mbps |
| Range | Up to ~100m open air (line of sight) |
| Channels | 126 selectable RF channels |
| Antenna | Onboard PCB antenna |
| Operating Temperature | -40 degreesC to +85 degreesC |
| Package / Form Factor | Compact SMD module with 2x4 pin header (8 pins) |
| Dimensions | Approx. 15mm x 29mm |
| Protocol Features | Auto acknowledgement, auto retransmit, multi-pipe RX (up to 6 data pipes) |
| Current Consumption (TX) | ~11.3mA at 0dBm |
| Current Consumption (RX) | ~13.5mA at 2Mbps |
| Standby Current | ~26uA |
| Type | Wireless Transceiver Module |
| Origin | Original / Authentic Ai Thinker |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- 2.4GHz ISM Band Operation: Operates in the globally unlicensed 2.4GHz band with 126 selectable channels, allowing multiple devices to coexist without interference.
- Multi-Speed Data Transfer: Choose between 250kbps, 1Mbps, or 2Mbps data rates to balance range and throughput for your specific application.
- Ultra-Low Power Consumption: Draws as little as 26uA in standby mode and ~11.3mA during transmission, making it perfect for battery-powered and energy-harvesting applications.
- Built-In Protocol Engine: Hardware-level auto acknowledgement, auto retransmit, and CRC error detection offload processing from your microcontroller and ensure reliable data delivery.
- 6 Data Pipe Multi-Receiver: Supports up to 6 simultaneous data pipes in receive mode, enabling star network topologies from a single receiver node.
- Standard SPI Interface: Connects easily to Arduino, ESP32, STM32, Raspberry Pi, and virtually any microcontroller with an SPI bus.
- Compact PCB Antenna Design: Onboard antenna eliminates the need for external antenna components, keeping your design small and cost-effective.
- Wide Voltage & Temperature Range: Operates from 1.9V to 3.6V and across -40 degreesC to +85 degreesC, suitable for industrial and outdoor deployments.
- Ai Thinker Quality: Manufactured by Ai Thinker, a trusted name in wireless modules known for the ESP-01, ESP-12, and LoRa product lines.
Pin Configuration
| Pin | Name | Function |
| 1 | GND | Ground |
| 2 | VCC | Power supply (1.9V-3.6V, typically 3.3V) |
| 3 | CE | Chip Enable - activates RX or TX mode |
| 4 | CSN | SPI Chip Select (active low) |
| 5 | SCK | SPI Clock |
