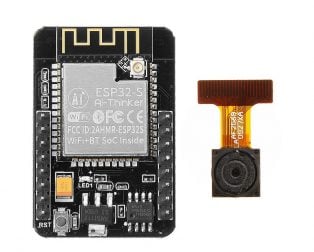

Ai Thinker ESP32 CAM Development Board WiFi+Bluetooth with AF2569 Camera Module
Ai Thinker ESP32 CAM Development Board WiFi+Bluetooth with AF2569 Camera Module
Ai Thinker ESP32 CAM Development Board WiFi+Bluetooth with AF2569 Camera Module
Build powerful IoT camera projects with the Ai Thinker ESP32-CAM - a compact, feature-packed development board combining dual-core ESP32 processing, WiFi, Bluetooth, and the AF2569 OV2640 camera module. Ideal for smart surveillance, face detection, image streaming, and edge AI applications. Available at The Tech Depot, Bengaluru. Trusted by makers and professionals. Fast shipping, 7-day warranty on manufacturing defects, expert technical support.
Specifications
| Brand | Ai Thinker |
| Module | ESP32-CAM with AF2569 Camera Module |
| SoC | ESP32-S (Dual-core 32-bit LX6, up to 240 MHz) |
| Camera Sensor | OV2640 (AF2569) - 2 Megapixel |
| Image Resolution | Up to 1600 x 1200 (UXGA) |
| Image Output Formats | JPEG, BMP, Grayscale |
| WiFi | 802.11 b/g/n (2.4 GHz), up to 150 Mbps |
| Bluetooth | Bluetooth 4.2 BR/EDR + BLE |
| Flash Memory | 32 Mbit (4 MB) SPI Flash |
| SRAM | 520 KB internal + 4 MB PSRAM (external) |
| GPIO Pins | 9 usable GPIO pins |
| Interfaces | UART, SPI, I2C, PWM |
| MicroSD Card Slot | Yes - supports up to 4 GB |
| Onboard LED Flash | High-brightness white LED |
| Antenna | Onboard PCB antenna + U.FL/IPEX connector for external antenna |
| Operating Voltage | 5V (via pin header) / 3.3V logic |
| Deep Sleep Current | ~6 mA (minimum) |
| Board Dimensions | 27 mm x 40.5 mm x 4.5 mm (approx.) |
| Operating Temperature | -20 degreesC to 85 degreesC |
| Development Environment | Arduino IDE, ESP-IDF, PlatformIO, MicroPython |
| USB Interface | No onboard USB - requires external FTDI/USB-to-TTL programmer |
| Type | WiFi + Bluetooth Camera Development Board |
| Origin | Original / Authentic Ai Thinker Module |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Dual-Core ESP32 Processor: Powerful 240 MHz dual-core Tensilica LX6 CPU handles image processing, WiFi streaming, and Bluetooth communication simultaneously.
- 2MP AF2569 OV2640 Camera: Captures high-quality images and video up to 1600x1200 resolution with built-in JPEG compression for efficient streaming.
- WiFi + Bluetooth Connectivity: 802.11 b/g/n WiFi for live video streaming and Bluetooth 4.2 (Classic + BLE) for versatile wireless communication.
- 4MB PSRAM: External PSRAM enables higher resolution image capture and frame buffering for smoother video output.
- MicroSD Card Support: Onboard TF card slot for local image/video storage - perfect for time-lapse and offline logging projects.
- Onboard LED Flash: Built-in high-brightness LED for low-light photography and illumination.
- Ultra-Compact Form Factor: Measures just 27 x 40.5 mm - easily embeddable into enclosures, drones, robots, and wearable devices.
- Deep Sleep Mode: Low-power deep sleep at ~6 mA makes it suitable for battery-powered and solar-powered deployments.
- External Antenna Option: U.FL/IPEX connector allows you to attach an external antenna for extended WiFi range.
- Rich Development Ecosystem: Fully compatible with Arduino IDE, ESP-IDF, PlatformIO, and MicroPython with extensive community libraries and examples.
