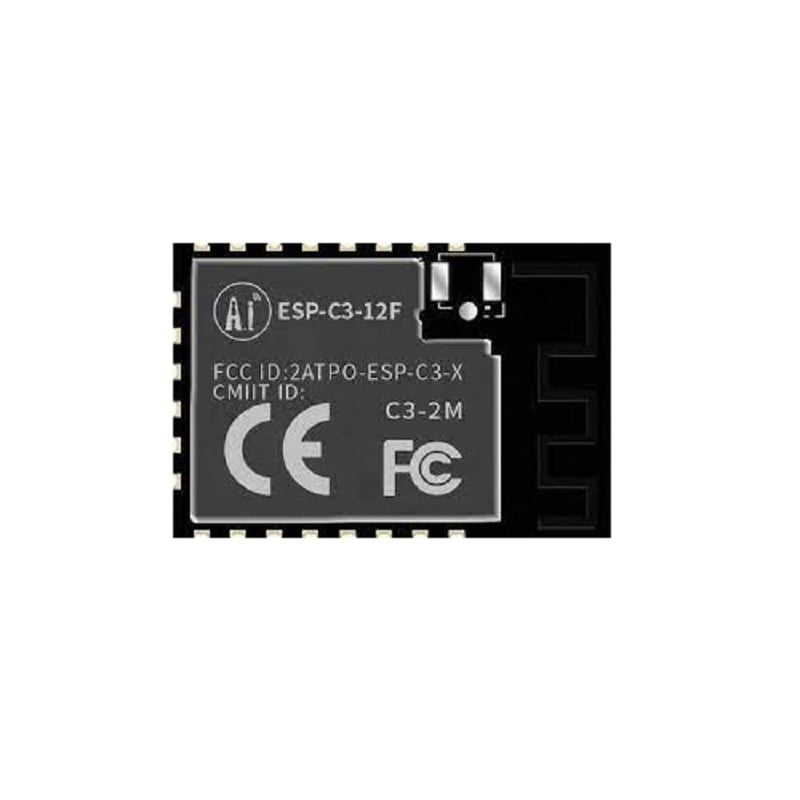

Ai-Thinker ESP32-C3-12F Wi-Fi + BLE Module
Ai-Thinker ESP32-C3-12F Wi-Fi + BLE Module
Shipping calculated at checkout.
Looking to buy Ai-Thinker ESP32-C3-12F Wi-Fi + BLE Module at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
Build powerful IoT devices with the Ai-Thinker ESP32-C3-12F - a compact, cost-effective module featuring the ESP32-C3 RISC-V single-core processor with integrated 2.4 GHz Wi-Fi and Bluetooth 5.0 (LE) connectivity. With 4 MB onboard flash, a rich peripheral set, and excellent RF performance via its onboard PCB antenna, this module is ideal for smart home devices, wireless sensors, and battery-powered IoT applications.
Specifications
| Module | Ai-Thinker ESP32-C3-12F |
| SoC | ESP32-C3 (Espressif) |
| Processor | 32-bit RISC-V single-core, up to 160 MHz |
| Flash Memory | 4 MB (onboard SPI flash) |
| SRAM | 400 KB (16 KB for RTC) |
| Wi-Fi | IEEE 802.11 b/g/n, 2.4 GHz, up to 150 Mbps |
| Bluetooth | Bluetooth 5.0 LE (Long Range, 2 Mbps PHY support) |
| Antenna | Onboard PCB antenna |
| GPIO Pins | Up to 15 GPIOs (multi-function) |
| Interfaces | SPI, UART, I2C, I2S, PWM, ADC (6-channel, 12-bit), JTAG |
| Security | Secure Boot, Flash Encryption, Digital Signature, HMAC, AES-128/256 |
| Operating Voltage | 3.0 V - 3.6 V (typical 3.3 V) |
| Operating Temperature | -40 degreesC to +85 degreesC |
| Module Dimensions | 16 mm x 17.6 mm x 3.2 mm (approx.) |
| Certification | FCC, CE, SRRC (check specific batch) |
| Development Framework | ESP-IDF, Arduino IDE, MicroPython, PlatformIO |
| Low Power Modes | Deep sleep current as low as ~5 uA |
| Origin | Original / Authentic Ai-Thinker Module |
Why Choose Ai-Thinker ESP32-C3-12F Wi-Fi + BLE Module?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Ai-Thinker ESP32-C3-12F Wi-Fi + BLE Module
- Modern RISC-V Architecture: The ESP32-C3 features an open-standard 32-bit RISC-V core running at up to 160 MHz - efficient, future-proof, and well-supported by Espressif's ecosystem.
- Dual Wireless Connectivity: Integrated Wi-Fi 4 (802.11n) and Bluetooth 5.0 LE on a single chip eliminates the need for external RF modules, reducing BOM cost and board complexity.
- Ultra-Low Power Consumption: Deep sleep current as low as ~5 uA makes it perfect for battery-powered sensors, wearables, and remote monitoring devices that need to last months on a coin cell.
- 4 MB Onboard Flash: Generous flash storage for OTA firmware updates, data logging, file systems (SPIFFS/LittleFS), and complex application code without external memory.
- Hardware Security Engine: Built-in secure boot, flash encryption, and cryptographic accelerators (AES, SHA, RSA, ECC) make it suitable for commercial IoT products requiring robust security.
- Compact Form Factor: At just 16 x 17.6 mm, the module fits into extremely space-constrained designs while the onboard PCB antenna delivers reliable wireless range without external antenna components.
- Rich Peripheral Set: Up to 15 multi-function GPIOs with SPI, UART, I2C, I2S, PWM, and 12-bit ADC cover virtually any sensor or actuator interface requirement.
- Excellent Software Support: Fully compatible with ESP-IDF (official SDK), Arduino IDE, MicroPython, and PlatformIO - choose the development environment that suits your workflow.
Perfect For
- Smart Home Hub / Gateway: Use Wi-Fi and BLE simultaneously to bridge Bluetooth sensors to your home network - control lights, fans, locks, and appliances via MQTT or
