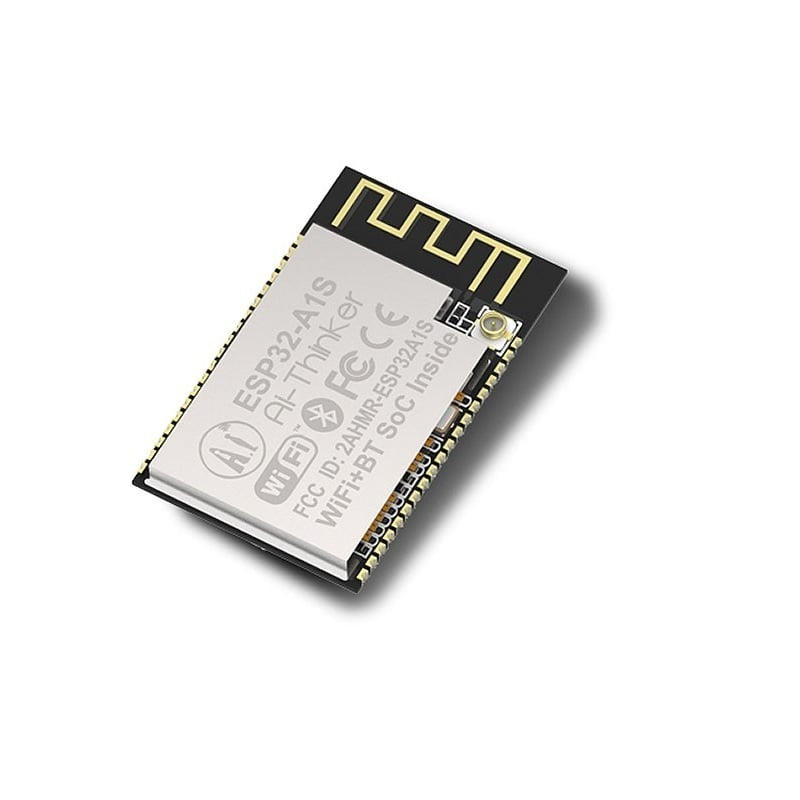

Ai Thinker ESP32-A1S WiFi+BT Audio Development Board
Ai Thinker ESP32-A1S WiFi+BT Audio Development Board
Shipping calculated at checkout.
Looking to buy Ai Thinker ESP32-A1S WiFi+BT Audio Development Board at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
Build powerful audio applications with the Ai Thinker ESP32-A1S - a feature-rich development board combining ESP32 dual-core processing, Wi-Fi, Bluetooth, and an integrated audio codec in a compact module. Ideal for smart speakers, voice assistants, internet radios, and IoT audio projects.
Specifications
| Module | Ai Thinker ESP32-A1S |
| Processor | ESP32 Dual-Core Xtensa LX6, up to 240 MHz |
| Audio Codec | Integrated AC101 / ES8388 audio codec (version dependent) |
| Wi-Fi | 802.11 b/g/n, 2.4 GHz |
| Bluetooth | Bluetooth v4.2 Classic + BLE |
| Flash Memory | 4 MB SPI Flash |
| PSRAM | 4 MB / 8 MB PSRAM (version dependent) |
| Audio Interfaces | I2S, built-in DAC/ADC, microphone input, headphone/speaker output |
| GPIO | Multiple GPIO pins broken out for peripherals, buttons, LEDs, SD card |
| SD Card Support | MicroSD card slot for audio file storage and playback |
| Operating Voltage | 3.3V (module), 5V input via USB or VIN |
| Antenna | Onboard PCB antenna with optional IPEX/U.FL connector |
| Framework Support | ESP-IDF, Arduino IDE, ESP-ADF (Espressif Audio Development Framework) |
| Module Dimensions | Approx. 16 x 24 mm (module); development board dimensions vary |
| Type | Audio Development Board / IoT Module |
| Origin | Original Ai Thinker - 100% Authentic |
Why Choose Ai Thinker ESP32-A1S WiFi+BT Audio Development Board?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Ai Thinker ESP32-A1S WiFi+BT Audio Development Board
- All-in-One Audio SoC: Integrated audio codec eliminates the need for external DAC/ADC ICs, simplifying circuit design for audio applications.
- ESP32 Dual-Core Power: 240 MHz dual-core processor handles simultaneous audio processing, Wi-Fi streaming, and Bluetooth connectivity without lag.
- Wi-Fi + Bluetooth Connectivity: Stream audio over Wi-Fi (internet radio, Spotify Connect, AirPlay) or Bluetooth (A2DP sink/source, HFP for hands-free calling).
- PSRAM for Audio Buffering: Onboard PSRAM provides ample memory for audio buffering, MP3/AAC/FLAC decoding, and complex DSP tasks.
- MicroSD Card Slot: Play audio files directly from a microSD card - supports WAV, MP3, FLAC, and other common formats via ESP-ADF.
- Microphone Input: Built-in microphone interface for voice recording, voice recognition, and voice assistant integration.
- Headphone & Speaker Output: Drive headphones directly or connect to external speakers through the onboard amplifier output.
- ESP-ADF Compatible: Fully supported by Espressif's official Audio Development Framework with ready-to-use examples for music players, voice assistants, and more.
- Compact Form Factor: Small module footprint makes it easy to embed into custom enclosures and finished products.
- Versatile GPIO Access: Exposed GPIO pins for connecting buttons, rotary encoders, OLED displays, LED indicators, and additional sensors.
- Expert Audio & IoT Support: Our engineers can help you with ESP-ADF setup, codec configuration, Bluetooth audio pairing, and custom firmware development.
- Cost-Effective Audio Solution: Replaces separate Wi-Fi module + microcontroller + audio codec setups with a single integrated board.
- Extensive Community & Documentation: Large ESP32 community, comprehensive Ai Thinker datasheets, and Espressif's official documentation ensure you're never stuck.
Perfect For
- DIY Smart Speaker: Build your own Alexa-compatible or custom voice-controlled smart speaker with Wi-Fi streaming and Bluetooth input.
- Internet Radio Player: Stream thousands of online
