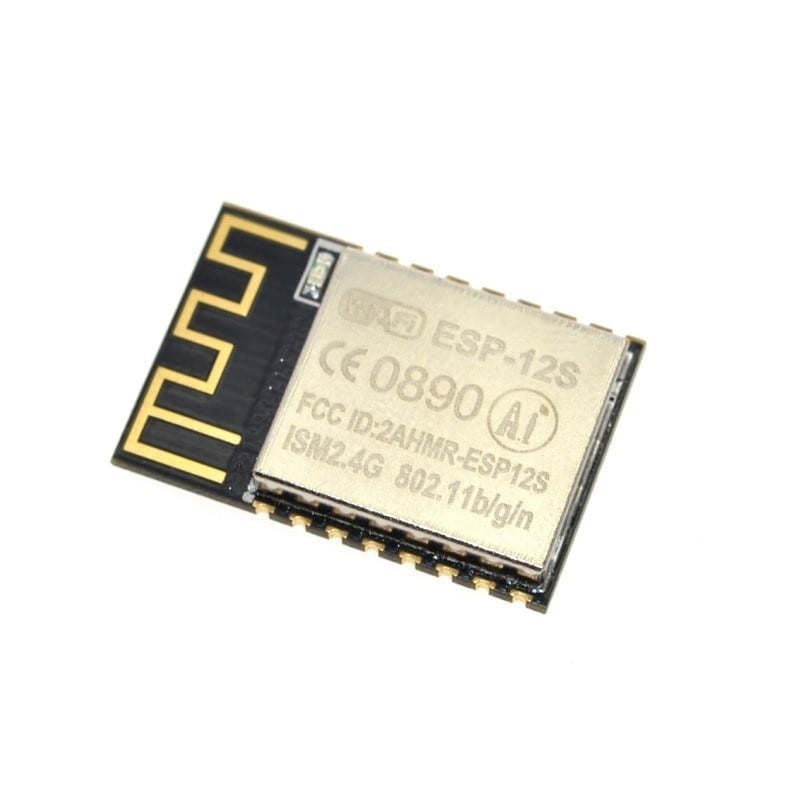

Ai Thinker ESP-12S ESP8266 Serial WiFi Module
Ai Thinker ESP-12S ESP8266 Serial WiFi Module
Shipping calculated at checkout.
Looking to buy Ai Thinker ESP-12S ESP8266 Serial WiFi Module at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
Add reliable, compact WiFi connectivity to your embedded projects with the Ai Thinker ESP-12S - an enhanced version of the popular ESP-12 series. Built around the powerful ESP8266EX SoC, this module features improved RF shielding, an optimized antenna design, and a robust metal enclosure for superior wireless performance. Ideal for IoT devices, home automation, smart sensors, and any application requiring seamless 802.11 b/g/n connectivity.
Specifications
| Manufacturer | Ai-Thinker |
| Model | ESP-12S |
| Core Chipset | ESP8266EX (Tensilica L106 32-bit RISC processor) |
| Operating Frequency | 80 MHz (up to 160 MHz) |
| Flash Memory | 4 MB (32 Mbit) SPI Flash |
| WiFi Standard | IEEE 802.11 b/g/n (2.4 GHz) |
| WiFi Modes | Station, SoftAP, Station + SoftAP |
| Security Protocols | WPA / WPA2 / WEP / Open |
| Antenna | Onboard PCB trace antenna (enhanced design) |
| GPIO Pins | 11 GPIOs (active, active-low, active-high available) |
| ADC | 1-channel 10-bit ADC (0-1V input range) |
| Communication Interfaces | UART, SPI, I2C, I2S, PWM |
| UART Baud Rate | Default 115200 bps (configurable up to 4.5 Mbps) |
| Operating Voltage | 3.0V - 3.6V DC (3.3V typical) |
| Operating Current | ~80 mA average (transmit peak ~170 mA) |
| Deep Sleep Current | ~20 uA |
| Output Power | +20 dBm (802.11b mode) |
| Receiver Sensitivity | -91 dBm (11 Mbps, 802.11b) |
| Operating Temperature | -40 degreesC to +85 degreesC |
| Module Dimensions | 24 mm x 16 mm x 3 mm (approx.) |
| Pad Pitch | 2.0 mm (castellated half-hole pads for SMD or through-hole) |
| Shielding | Metal RF shielding can for improved EMI performance |
| Firmware Support | AT Command firmware (factory default), Arduino Core, MicroPython, NodeMCU Lua, ESP-IDF compatible |
| Certifications | FCC, CE, RoHS compliant |
| Origin | Original Ai-Thinker - Authentic |
Why Choose Ai Thinker ESP-12S ESP8266 Serial WiFi Module?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Ai Thinker ESP-12S ESP8266 Serial WiFi Module
- Enhanced ESP-12 Design: The ESP-12S is Ai-Thinker's improved revision with better antenna matching, optimized GPIO pull-up/pull-down resistors built in, and removal of unused pins - resulting in more reliable boot-up and fewer external component requirements.
- Powerful ESP8266EX SoC: 32-bit Tensilica processor running at 80/160 MHz with full TCP/IP stack, capable of running complex application logic alongside WiFi communication.
- 4 MB Onboard Flash: Generous flash storage supports OTA (Over-The-Air) firmware updates, SPIFFS/LittleFS file systems, and large application binaries.
- Tech Depot India WiFi Performance: +20 dBm transmit power and -91 dBm receive sensitivity deliver reliable wireless range, enhanced by the improved onboard PCB antenna and metal shielding.
- Ultra-Low Deep Sleep: ~20 uA deep sleep current makes it ideal for battery-powered IoT sensors and remote monitoring applications.
- Versatile I/O: 11 GPIO pins with support for UART, SPI, I2C, I2S, PWM, and a 10-bit ADC channel - enough for most sensor and actuator interfacing needs.
- Compact & Solderable: Tiny 24x16 mm footprint with castellated edge pads allows easy SMD reflow soldering or manual through-hole adapter mounting.
- Broad Ecosystem Compatibility: Program with Arduino IDE, PlatformIO, MicroPython, NodeMCU Lua, or Espressif's native
