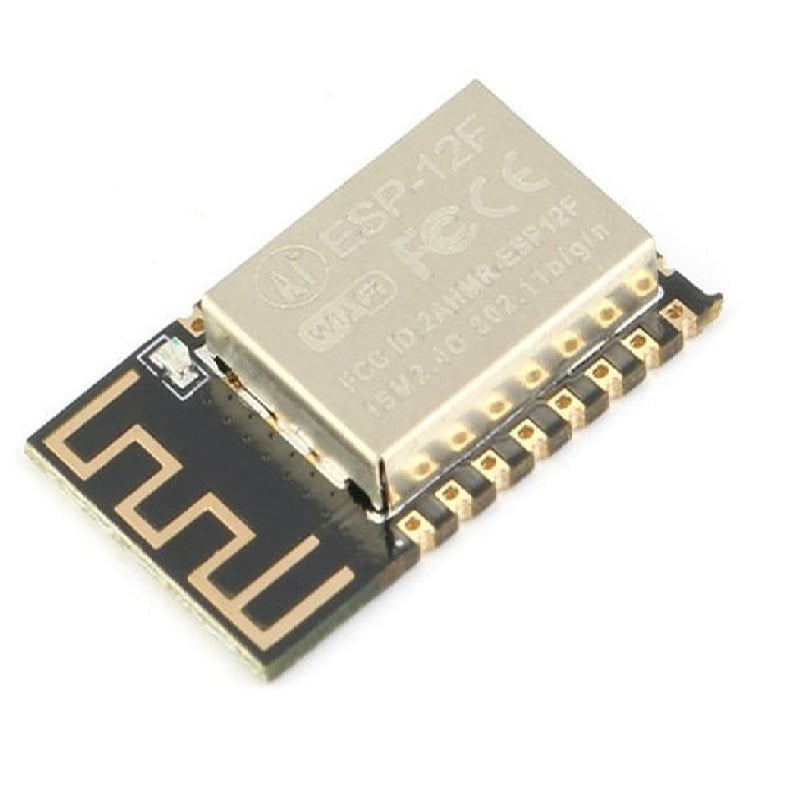

Ai Thinker ESP-12F ESP8266 Serial WiFi Module
Ai Thinker ESP-12F ESP8266 Serial WiFi Module
Ai Thinker ESP-12F ESP8266 Serial WiFi Module
Add powerful, reliable WiFi connectivity to your microcontroller projects with the Ai Thinker ESP-12F - the industry-standard ESP8266-based serial WiFi module. Featuring an enhanced antenna design with a metal shield for superior RF performance and minimal interference, the ESP-12F is the go-to choice for IoT developers, hobbyists, and product designers worldwide. Available now from The Tech Depot, Bengaluru, with fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support.
Specifications
| Module | Ai Thinker ESP-12F |
| Chipset | ESP8266EX (Espressif Systems) |
| WiFi Standard | IEEE 802.11 b/g/n (2.4 GHz) |
| Frequency Range | 2400 MHz - 2483.5 MHz |
| Operating Voltage | 3.0V - 3.6V (Typical 3.3V) |
| Operating Current | ~80 mA average (transmit peak ~170 mA) |
| Deep Sleep Current | ~20 uA |
| Processor | 32-bit Tensilica L106 RISC @ 80/160 MHz |
| Flash Memory | 4 MB (32 Mbit) SPI Flash |
| RAM | 50 KB usable (from 160 KB total) |
| GPIO Pins | 11 (active) - supports PWM, I2C, SPI, UART, ADC |
| ADC | 1-channel, 10-bit (0-1V input range) |
| UART | UART0 (TXD/RXD) + UART1 (TXD only) |
| SPI / I2C | Supported via software or hardware |
| Antenna | Onboard PCB trace antenna (improved design over ESP-12E) |
| WiFi Security | WPA / WPA2-PSK |
| Network Protocols | TCP/IP, UDP, HTTP, MQTT, FTP, and more |
| WiFi Modes | Station (STA), Access Point (AP), STA+AP |
| Transmit Power | +20 dBm (max, 802.11b mode) |
| Receiver Sensitivity | -91 dBm (11 Mbps) |
| Operating Temperature | -40 degreesC to +125 degreesC |
| Module Dimensions | 24 mm x 16 mm x 3 mm (approx.) |
| Pitch | 2.0 mm (castellated/half-hole pads - 22 pins) |
| Shielding | Metal RF shield for EMI reduction |
| Firmware Support | AT Command firmware, NodeMCU (Lua), Arduino IDE, MicroPython, ESP-IDF |
| Certifications | FCC, CE, TELEC, IC (module-level) |
| Type | WiFi Serial Module / IoT SoC Module |
| Origin | Original Ai Thinker - 100% Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Enhanced PCB Antenna: The ESP-12F features an optimized antenna layout compared to the older ESP-12E, delivering better WiFi range, stronger signal stability, and more reliable connectivity in real-world environments.
- Full Metal Shield: Integrated RF shielding minimizes electromagnetic interference (EMI) and improves signal integrity - essential for noise-sensitive and certification-ready designs.
- 4 MB Flash Memory: Generous onboard flash supports OTA (Over-The-Air) updates, complex firmware, web server hosting, file systems (SPIFFS/LittleFS), and dual-partition boot schemes.
- 11 Accessible GPIO Pins: Versatile I/O supporting digital read/write, PWM output, I2C, SPI, UART, and a 10-bit ADC channel - enough for most sensor and actuator applications.
- Ultra-Low Deep Sleep Power: Draws only ~20 uA in deep sleep mode, making it ideal for battery-powered IoT sensors, remote monitors, and energy-harvesting designs.
- Complete WiFi Stack: Supports Station, Access Point, and combined STA+AP modes with WPA2 security, enabling flexible network architectures from simple clients to standalone hotspots.
- Broad Firmware Ecosystem: Program using Arduino IDE (C/C++), MicroPython, NodeMC
