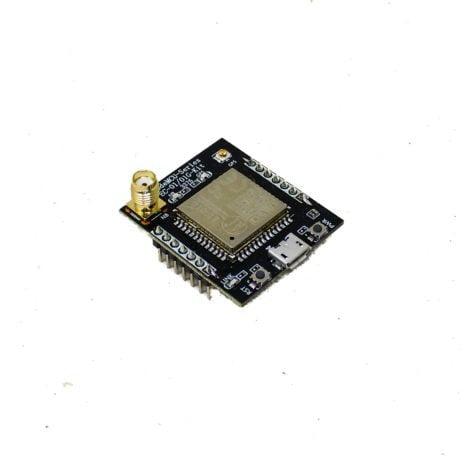

Ai-Thinker EC-01G-Kit NB-IoT Development Board
The Ai-Thinker EC-01G-Kit is a feature-rich NB-IoT (Narrowband Internet of Things) development board designed for low-power, wide-area network (LPWAN) IoT applications. Built around the EC616S chipset, this kit provides reliable cellular IoT connectivity with ultra-low power consumption, making it ideal for smart metering, asset tracking, environmental monitoring, and remote sensor deployments. Available now from The Tech Depot, Bengaluru - your trusted source for authentic IoT development hardware with fast shipping and expert support.
Specifications
| Board | Ai-Thinker EC-01G-Kit NB-IoT Development Board |
| Core Module | EC-01G (based on EC616S NB-IoT SoC) |
| Connectivity | NB-IoT (Cat-NB1 / Cat-NB2), Band 3/5/8/20/28 (multi-band support) |
| Processor | ARM Cortex-M3 core |
| Operating Voltage | 3.3V (onboard USB-powered via 5V input) |
| USB Interface | Micro USB / USB Type-C for power, programming, and serial debug |
| SIM Card Slot | Nano SIM card holder (supports standard NB-IoT SIM cards) |
| Antenna | Onboard PCB antenna + IPEX/U.FL connector for external antenna |
| UART Interface | AT command interface via UART for module communication |
| GPIO Pins | Multiple GPIO, ADC, I2C, SPI, and UART breakout pins |
| Power Consumption | Ultra-low power - PSM (Power Saving Mode) and eDRX support |
| Protocol Support | CoAP, MQTT, TCP/UDP, LwM2M, HTTP |
| AT Command Support | Standard 3GPP AT commands + Ai-Thinker extended AT commands |
| LED Indicators | Power LED, network status LED, user-configurable LED |
| Buttons | Reset button, Boot/User button |
| Operating Temperature | -40 degreesC to +85 degreesC (industrial grade) |
| Board Dimensions | Compact development board form factor with breadboard-friendly pin headers |
| Certifications | Module-level FCC/CE certification (check regional availability) |
| Type | NB-IoT Development Board / Cellular IoT Kit |
| Origin | Original / Authentic Ai-Thinker Product |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 Technical Support |
Key Features
- NB-IoT Cellular Connectivity: Leverages narrowband IoT technology for long-range, low-power communication over licensed cellular spectrum - no Wi-Fi or gateway dependency required.
- Ultra-Low Power Design: Supports PSM (Power Saving Mode) and eDRX (extended Discontinuous Reception) for battery-powered deployments lasting months to years on a single charge.
- Multi-Band Support: Operates across multiple LTE bands (B3/B5/B8/B20/B28) for compatibility with major NB-IoT carriers in India and globally.
- AT Command Interface: Easy-to-use AT command set over UART enables rapid prototyping - send data to cloud platforms without complex firmware development.
- Rich Protocol Stack: Built-in support for MQTT, CoAP, TCP, UDP, HTTP, and LwM2M allows seamless integration with popular IoT cloud platforms like AWS IoT, Azure IoT Hub, Alibaba Cloud, ThingsBoard, and more.
- Onboard USB-to-Serial: Integrated USB-to-UART bridge for direct PC connectivity - plug in, open a serial terminal, and start sending AT commands immediately.
- Flexible Antenna Options: Onboard PCB antenna for quick testing plus an IPEX connector for attaching a higher-gain external antenna in real-world deployments.
- Breadboard-Friendly Headers: Pin headers expose GPIO, ADC, I2C, SPI, and UART interfaces for easy sensor and peripheral integration.
- Industrial Temperature Range: Rated for -40 degreesC to +85 degreesC, suitable for outdoor and harsh environment deployments.
- Compact Form Factor: Small, lightweight board perfect for embedding into prototypes and proof-of-concept builds.
Why Choose the Ai-Thinker EC-01G-Kit?
- 100% Authentic Ai-Thinker Product: Sourced directly from authorized distributors - guaranteed genuine with full manufacturer backing.
- Rapid IoT Prototyping: Get connected to NB
