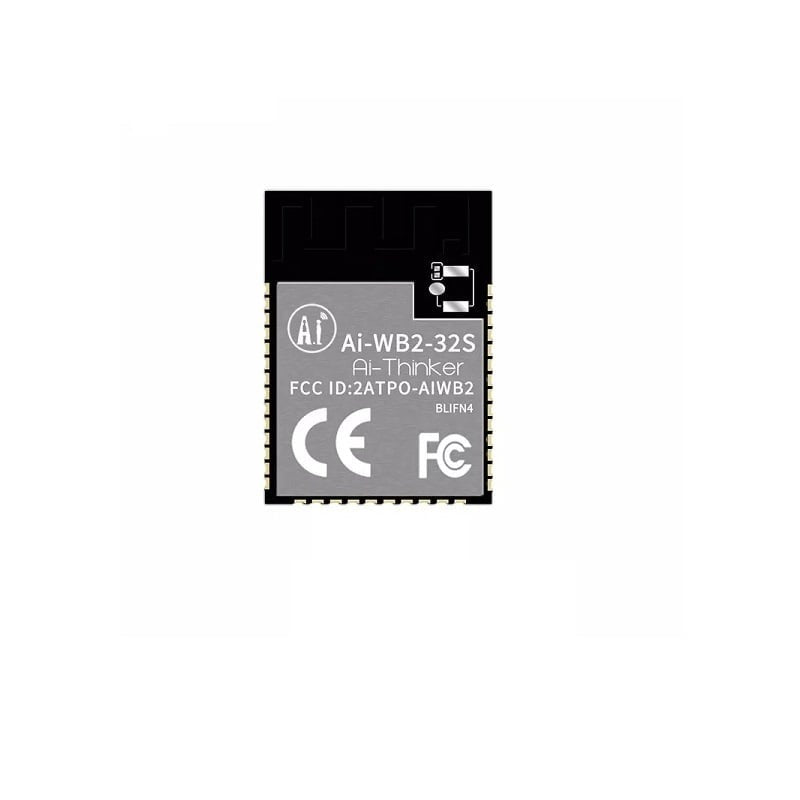

Ai-Thinker Ai-WB2-32S Wi-Fi & Bluetooth Module
The Ai-WB2-32S is a high-performance dual-band wireless module from Ai-Thinker, built around the BL602 RISC-V chipset. Featuring integrated Wi-Fi (802.11 b/g/n) and Bluetooth 5.0 (BLE) connectivity in a compact 32-pin SMD package, this module is engineered for IoT devices, smart home products, and wireless sensor networks. Available now at The Tech Depot, Bengaluru, with fast shipping and expert support.
Specifications
| Module | Ai-WB2-32S |
| Manufacturer | Ai-Thinker |
| Chipset | BL602 (32-bit RISC-V) |
| Wi-Fi Standard | 802.11 b/g/n (2.4 GHz) |
| Bluetooth | Bluetooth 5.0 BLE |
| CPU Clock Speed | Up to 192 MHz |
| Flash Memory | 4 MB (onboard) |
| RAM | 276 KB |
| GPIO Pins | Up to 18 GPIOs (PWM, UART, SPI, I2C, ADC) |
| Operating Voltage | 3.3V |
| Antenna | Onboard PCB antenna |
| Package | SMD, 32-pin stamp-hole design (18 mm x 20 mm approx.) |
| Operating Temperature | -40 degreesC to +85 degreesC |
| Security | WPA/WPA2/WPA3, AES-128/256 hardware encryption |
| Certifications | FCC / CE compliant |
| Type | IoT Wireless Module |
| Origin | Original / Authentic Ai-Thinker |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Dual Wireless Connectivity: Simultaneous Wi-Fi 2.4 GHz and Bluetooth 5.0 BLE for versatile IoT communication
- Powerful RISC-V Core: BL602 processor running at up to 192 MHz delivers efficient processing for embedded applications
- Generous Onboard Flash: 4 MB flash memory supports OTA firmware updates and complex application storage
- Rich Peripheral Interface: Up to 18 GPIOs with support for UART, SPI, I2C, PWM, and ADC - ideal for sensor integration
- Compact SMD Form Factor: 32-pin stamp-hole design enables easy soldering and integration into custom PCBs
- Low Power Consumption: Multiple sleep modes for battery-powered IoT deployments
- Industrial Temperature Range: Operates reliably from -40 degreesC to +85 degreesC for demanding environments
- Open SDK Support: Compatible with Ai-Thinker SDK, BL602 SDK, and community-supported frameworks
- Onboard PCB Antenna: No external antenna required - reduces BOM cost and simplifies design
- Hardware Encryption: Built-in AES and secure boot for protected data transmission
Why Choose the Ai-WB2-32S?
- 100% authentic Ai-Thinker module sourced from authorized distributors
- Cost-effective alternative to ESP32 modules with RISC-V architecture advantages
- 1-5 day shipping, 7-8 day delivery across India from our Bengaluru warehouse
- Expert technical support for hardware integration and firmware development
- Proven reliability with FCC/CE compliance for product development
- Growing open-source community and extensive documentation available
Project Ideas
- Smart Home Devices: Build Wi-Fi-enabled smart switches, plugs, lights, and thermostats with BLE provisioning for easy setup
- IoT Sensor Nodes: Deploy wireless temperature, humidity, air quality, or motion sensors with cloud connectivity via MQTT or HTTP
- Wearable & BLE Beacons: Leverage Bluetooth 5.0 BLE for fitness trackers, asset tracking tags, and proximity beacons
- Home Automation Gateway: Use dual Wi-Fi + BLE to bridge Bluetooth sensors to your home network and platforms like Home Assistant
- Wireless Data Logger: Collect ADC sensor data and transmit wirelessly to a cloud dashboard for real-time monitoring
- OTA-Enabled Products: Develop commercial IoT products with secure over-the-air firmware update capability
