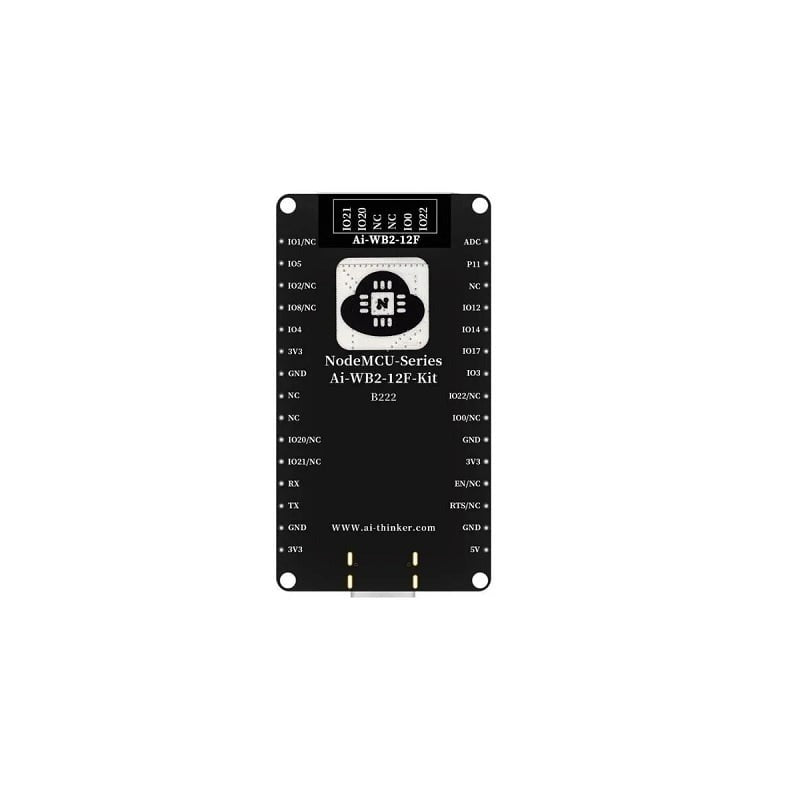

Ai-Thinker Ai-WB2-12F Kit
Ai-Thinker Ai-WB2-12F Kit
Ai-Thinker Ai-WB2-12F Kit - Wi-Fi & BLE 5.0 Development Board (BL602 Based)
Build powerful IoT projects with the Ai-Thinker Ai-WB2-12F Kit, a compact and versatile development board built around the BL602 Wi-Fi and Bluetooth Low Energy 5.0 SoC. Featuring a rich set of GPIOs, onboard antenna, and USB-C connectivity, this kit is ideal for smart home, sensor networks, and wireless prototyping. Available now at The Tech Depot, Bengaluru with fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support.
Specifications
| Module | Ai-WB2-12F (based on Bouffalo Lab BL602) |
| Processor | 32-bit RISC-V CPU @ 192 MHz |
| Wireless | Wi-Fi 802.11 b/g/n (2.4 GHz) + Bluetooth Low Energy 5.0 |
| Flash Memory | 4 MB onboard SPI Flash |
| RAM | 276 KB SRAM |
| GPIO Pins | Up to 18 GPIOs with PWM, UART, SPI, I2C, ADC support |
| Antenna | Onboard PCB antenna |
| USB Interface | USB-C for programming and power |
| Operating Voltage | 3.3V logic (5V input via USB) |
| Operating Temperature | -40 degreesC to +85 degreesC |
| Board Dimensions | Compact development kit form factor, breadboard-friendly |
| SDK Support | Bouffalo Lab SDK, Arduino (community), PlatformIO |
| Certifications | FCC / CE (module level) |
| Type | IoT Development Kit / Wi-Fi + BLE Module Kit |
| Origin | Original Ai-Thinker - 100% Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Dual Wireless Connectivity: Supports both Wi-Fi 802.11 b/g/n and Bluetooth LE 5.0 on a single chip for flexible IoT communication.
- High-Performance RISC-V Core: BL602 SoC with a 32-bit RISC-V processor clocked at 192 MHz delivers fast processing for embedded applications.
- Rich Peripheral Set: 18 GPIOs supporting UART, SPI, I2C, PWM, and ADC - connect sensors, displays, relays, and actuators with ease.
- 4 MB Flash Storage: Ample onboard flash memory for firmware, OTA updates, and data logging.
- USB-C Interface: Modern USB-C connector for hassle-free programming, debugging, and power delivery.
- Onboard PCB Antenna: No external antenna required - ready to use out of the box with reliable wireless range.
- Breadboard-Friendly Design: Pin headers fit standard breadboards for rapid prototyping without soldering.
- Low Power Consumption: Optimized sleep modes make it suitable for battery-powered IoT deployments.
- Wide SDK Ecosystem: Compatible with Bouffalo Lab official SDK, Arduino core (community-supported), and PlatformIO for flexible development workflows.
- Industrial Temperature Range: Operates reliably from -40 degreesC to +85 degreesC, suitable for demanding environments.
Why Choose the Ai-WB2-12F Kit?
- 100% authentic Ai-Thinker product sourced directly from authorized distributors
- 1-5 day shipping, 7-8 day delivery across India from our Bengaluru warehouse
- Expert technical support for firmware setup, SDK configuration, and circuit design
- Cost-effective alternative to ESP32 for Wi-Fi + BLE projects with RISC-V architecture
- Complete development kit - plug in USB-C and start coding immediately
Project Ideas
- Smart Home Hub: Build a Wi-Fi and BLE gateway to control lights, fans, locks, and appliances using MQTT or HTTP protocols.
- Wireless Sensor Node: Connect temperature, humidity, air quality, or motion sensors and transmit data to cloud dashboards like Blynk, ThingsBoard, or Home Assistant.
- BLE Beacon & Proximity System: Create Bluetooth beacons for indoor positioning, asset tracking, or proximity-based notifications.
- OTA-Enabled IoT Device: Develop products with over-the-air firmware update capability using the 4 MB flash storage.
- Battery-Powered Weather Station: Leverage low-power sleep modes to build a solar or battery-operated weather monitoring station.
- Wi
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Buy Ai-Thinker Ai-WB2-12F Kit Online in India
Purchase the Ai-Thinker Ai-WB2-12F Kit online at The Tech Depot - India's most trusted electronics components store. We deliver across all major cities including Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat. Get the best price on Ai-Thinker Ai-WB2-12F Kit with fast 1-5 day shipping from our Bengaluru warehouse. All products are 100% authentic, sourced from authorized distributors with 7-day warranty on manufacturing defects.
Looking to buy Ai-Thinker Ai-WB2-12F Kit at the best price in India? The Tech Depot offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
