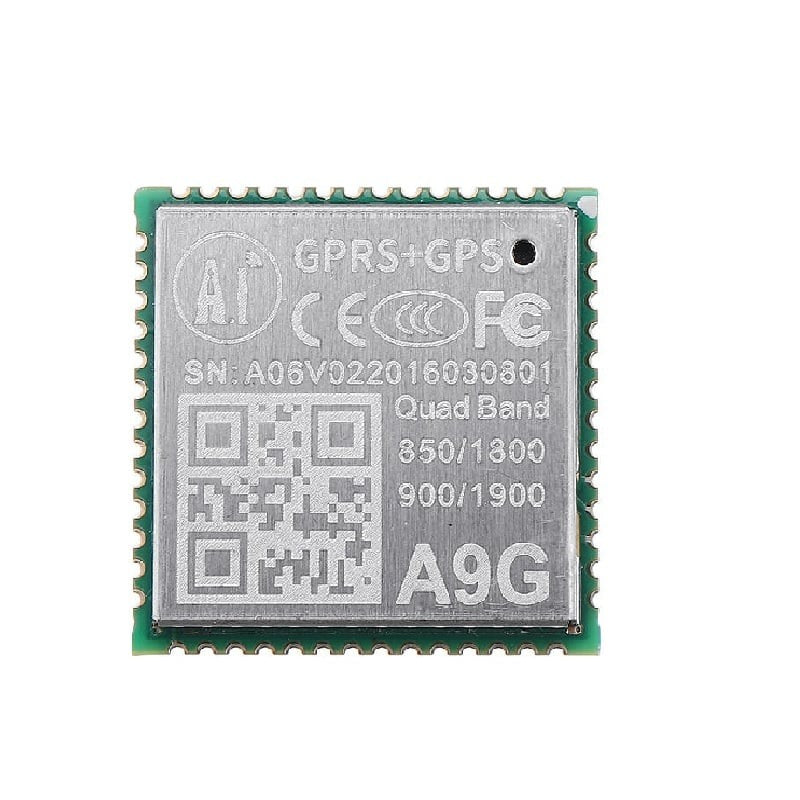

Ai Thinker A9G GPRS Series Module
Ai Thinker A9G GPRS Series Module
Shipping calculated at checkout.
Looking to buy Ai Thinker A9G GPRS Series Module at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
Specifications
| Module | Ai Thinker A9G GPRS + GPS/BDS Combo Module |
| Cellular Bands | Dual-Band GSM/GPRS 850/900/1800/1900 MHz (Quad-Band) |
| GPRS Class | Class 10 - Multi-Slot Class 10 (Up to 85.6 kbps downlink) |
| GPS Capability | Integrated GPS + BDS (BeiDou) dual satellite positioning |
| GPS Sensitivity | Tracking: -158 dBm | Cold Start: -147 dBm |
| GPS Accuracy | 2.5 m CEP (open sky conditions) |
| TTFF (Time to First Fix) | Cold Start: ~32s | Warm Start: ~1s | Hot Start: ~1s |
| Supply Voltage | 3.3V - 4.2V (Typical 3.8V) |
| Operating Temperature | -30 degreesC to +80 degreesC |
| Communication Interface | UART (Serial), AT Command Set |
| SIM Card | Micro SIM (2FF) support |
| Protocols Supported | TCP/UDP, HTTP, MQTT, FTP, SMS, Voice Call |
| Audio | Integrated audio interface for voice calls (MIC + Speaker) |
| Antenna | External antenna connectors for both GSM and GPS (IPX/U.FL) |
| Module Dimensions | Approximately 24.0 x 24.0 x 2.8 mm (SMD form factor) |
| Firmware | GPRS C SDK with open-source development support |
| Certifications | CE, RoHS compliant |
| Origin | Original Ai Thinker - 100% Authentic |
Why Choose Ai Thinker A9G GPRS Series Module?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of Ai Thinker A9G GPRS Series Module
- All-in-One GSM + GPS Module: Combines GPRS cellular data and GPS/BDS satellite positioning in a single ultra-compact chip, eliminating the need for separate modules and reducing PCB space.
- Quad-Band Global Coverage: Operates on 850/900/1800/1900 MHz bands, ensuring compatibility with GSM networks across India and worldwide.
- High-Sensitivity GPS with BDS: Dual satellite system (GPS + BeiDou) delivers fast acquisition times and reliable positioning even in challenging environments like urban canyons.
- Rich Protocol Support: Built-in TCP/UDP, HTTP, MQTT, FTP, and SMS support makes it straightforward to connect to cloud platforms like ThingsBoard, AWS IoT, Blynk, and custom servers.
- Low Power Consumption: Optimized sleep modes allow battery-powered deployments for weeks or months, perfect for remote asset tracking and field sensors.
- Open-Source C SDK: Ai Thinker provides a full C language SDK with GPRS and GPS APIs, enabling custom firmware development beyond basic AT commands.
- Voice & SMS Capable: Integrated audio codec supports voice calls and SMS messaging for alert systems, emergency devices, and two-way communication.
- UART AT Command Interface: Standard AT commands via UART make integration with Arduino, ESP32, STM32, Raspberry Pi, and other microcontrollers simple and well-documented.
- Compact SMD Package: Tiny 24 x 24 mm footprint with castellated pads allows direct soldering onto custom PCBs for production-grade designs.
- Wide Temperature Range: Industrial-grade operating range of -30 degreesC to +80 degreesC ensures reliable performance in harsh outdoor environments.
- Cost-effective dual functionality - one module replaces a separate GPRS modem and GPS receiver, saving cost and board space.
- Proven track record
Ai Thinker A9G GPRS/GPS Module - Dual-Band GSM with Built-In GPS
Get the Ai Thinker A9G GPRS Series Module from Tech Depot India, Bengaluru. This compact, feature-rich module combines GSM/GPRS cellular connectivity with integrated GPS/BDS satellite positioning in a single chip solution - ideal for IoT tracking, asset monitoring, and remote communication projects.
Frequently Asked Questions
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your Ai Thinker A9G GPRS Series Module today and start building your next project.
