Ai Thinker A9 GPRS Series Module

Name: Ai Thinker A9 GPRS Series Module
Brand: The Tech Depot
SKU: TTD-17896
Price: 1219.00 INR
Availability: InStock

Rs. 1,219.00

Rs. 1,219.00 Rs. 1,272.00

TTD-17896

🚚 Delivery in 8–10 days

In stock

Shipping calculated at checkout.

Check availability on WhatsApp Confirm live stock and delivery time for your pincode before ordering.

Looking to buy Ai Thinker A9 GPRS Series Module at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.

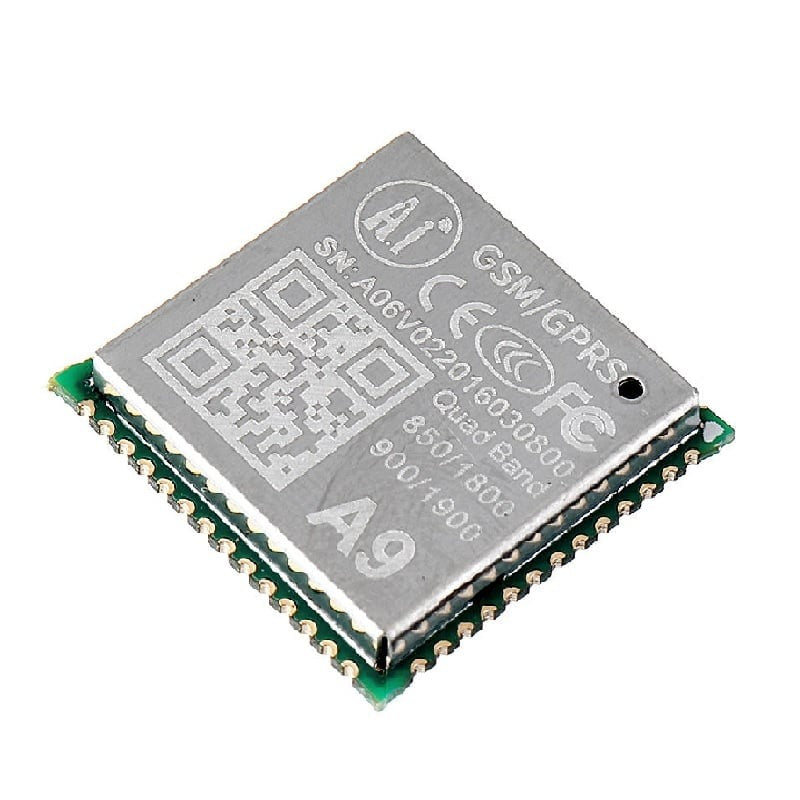

The Ai Thinker A9 GPRS Module is a compact, low-power GSM/GPRS communication module designed for IoT, M2M, and embedded wireless applications. Built around the RDA8955 chipset, it delivers reliable 2G cellular connectivity with integrated GPS capability in an ultra-small form factor. Available at Tech Depot India, Bengaluru, with fast shipping and full technical support.

Specifications

Module	Ai Thinker A9 GPRS
Chipset	RDA8955 (32-bit RISC core)
Frequency Bands	Quad-band: GSM 850/900/1800/1900 MHz
Data Rates	GPRS Class 10 - DL: 85.6 kbps / UL: 42.8 kbps
GPRS Features	GPRS Multi-slot Class 12, CS-1/CS-2/CS-3/CS-4
Operating Voltage	3.3V - 4.2V (Typical 3.8V)
Power Consumption	~3mA sleep mode; ~250mA active transmission
SIM Interface	Nano SIM (1.8V / 3.0V)
Communication Interface	UART, SPI, I2C, GPIO
Audio	Built-in voice call support with mic and speaker interface
SMS	Text and PDU mode supported
GPS (A9G Variant)	Integrated GPS with antenna connector (A9G version)
Protocol Support	TCP/UDP, HTTP, FTP, MQTT, SSL
SDK	Open-source GPRS C SDK (CSDK) with API support
Antenna	External antenna via IPEX/U.FL connector
Module Dimensions	Approx. 16.8mm x 15.7mm x 2.3mm
Operating Temperature	-30 degreesC to +80 degreesC
Certifications	CE, FCC compatible design
Type	GSM/GPRS Wireless Communication Module
Origin	Original Ai Thinker - 100% Authentic

Why Choose Ai Thinker A9 GPRS Series Module?

100% Authentic

GST Invoice - A GST invoice is included with every order.

Expert Support - Dedicated technical help on WhatsApp and email.

Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.

Trusted by Makers - Used by students, hobbyists and professionals nationwide.

Key Features of Ai Thinker A9 GPRS Series Module

Ultra-Compact Design: One of the smallest GPRS modules available, measuring just 16.8mm x 15.7mm, ideal for space-constrained embedded designs.
Quad-Band GSM/GPRS: Supports 850/900/1800/1900 MHz bands for worldwide 2G network compatibility across all major carriers.
Low Power Consumption: Approximately 3mA in sleep mode makes it highly suitable for battery-powered IoT deployments and remote monitoring systems.
Open-Source CSDK: Comes with a comprehensive open-source C SDK, allowing developers to write custom firmware directly on the module without an external MCU.
Rich Protocol Stack: Native support for TCP, UDP, HTTP, FTP, MQTT, and SSL enables direct cloud connectivity to platforms like AWS IoT, ThingsBoard, and custom servers.
Multiple Interfaces: UART, SPI, I2C, and multiple GPIO pins provide flexible integration with sensors, displays, actuators, and microcontrollers.
Voice & SMS Capable: Built-in voice call functionality with microphone/speaker interface plus full SMS support in both text and PDU modes.
GPS Ready (A9G): The A9G variant integrates GPS positioning alongside GPRS, enabling location tracking without additional hardware.
Industrial Temperature Range: Operates reliably from -30 degreesC to +80 degreesC, suitable for outdoor and industrial environments.
Cost-Effective Solution: Delivers cellular connectivity at a fraction of the cost of 4G/LTE modules, perfect for applications where high bandwidth is not required.
Proven reliability across thousands of IoT installations in India including vehicle tracking, smart agriculture, and industrial monitoring
