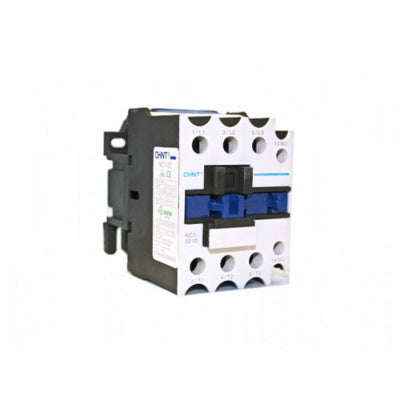

AC Contactors Chint NC1-3210 3P 240V
AC Contactors Chint NC1-3210 3P 240V
Shipping calculated at checkout.
Our team in Bengaluru is available reliable to support your journey from product selection to project completion.
The Chint NC1-3210 is a three-pole AC contactor rated for 240V operation, designed for reliable electromagnetic switching of AC circuits in industrial and commercial applications. Electrical engineers, panel builders, and maintenance technicians rely on this contactor for controlling motors, pumps, compressors, and other inductive loads with precise switching action. This product solves critical switching challenges by providing stable contact engagement, reduced arc erosion, and long operational life even under frequent on-off cycling conditions.
Specifications
| Specification | Details |
| Product Type | Three-Pole AC Contactor |
| Brand | Chint |
| Model | NC1-3210 |
| Coil Voltage | 240V AC |
| Poles | 3P (Three Phase) |
| Rated Current | 32A at 240V AC |
| Contact Material | Silver-Cadmium Alloy |
| Mechanical Life | 2,000,000 cycles minimum |
| Electrical Life | 500,000 cycles at rated load |
| Mounting | DIN-Rail Compatible |
| Origin | Original/Authentic |
Why Choose AC Contactors Chint NC1-3210 3P 240V?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of AC Contactors Chint NC1-3210 3P 240V
- Three-pole configuration enables simultaneous control of three-phase circuits with single coil energization, reducing panel complexity and wiring requirements
- 240V AC coil voltage matches standard control transformer outputs, eliminating need for additional voltage conversion equipment
- 32A rated current capacity handles medium-duty motor loads up to 7.5kW, suitable for compressors, fans, and conveyor systems
- Silver-cadmium contact alloy provides superior arc resistance and maintains low contact resistance even after 500,000 electrical cycles
- Integral arc suppression design minimizes contact erosion during inductive load switching, extending maintenance intervals
- Compact DIN-rail mounting design reduces control cabinet footprint while maintaining robust mechanical construction
Perfect For
- Three-phase motor control in HVAC systems where the contactor manages compressor motor startup and shutdown with smooth electromagnetic engagement
- Industrial pump station automation where frequent switching cycles demand reliable contact performance and minimal downtime
- Manufacturing conveyor belt systems requiring synchronized multi-phase switching to prevent mechanical shock and extend equipment life
- Commercial refrigeration units where the contactor controls compressor operation in response to temperature sensor signals
- Water treatment plant applications managing multiple pump motors with coordinated three-phase switching logic
- Textile machinery control panels where the contactor provides safe, repeatable motor switching for spinning and weaving equipment
How to Use
Installation begins with verifying that your control circuit voltage matches the 240V AC coil rating of the NC1-3210. Mount the contactor on a DIN-rail within your control cabinet, ensuring adequate spacing for heat dissipation around the coil and contact assembly. Connect the three-phase load wires to the top terminals (L1, L2, L3) and the motor or equipment to the bottom terminals (T1, T2, T3), following your equipment manufacturer's wiring diagram. Secure all connections with appropriate terminal lugs rated for 32A current to prevent loose connections that cause overheating.
Connect your 240V AC control voltage across the coil terminals, typically through a start button, programmable logic controller output, or timer relay. When control voltage is applied, the magnetic coil pulls the armature, closing all three main contacts simultaneously to energize the load. The contactor will maintain contact closure as long as control voltage is present. For safety, always include a manual disconnect switch and overload protection device upstream of the contactor. Test the contactor operation under no-load conditions before connecting to the actual motor load, and periodically inspect the contacts for signs of pitting or discoloration that indicate wear.
Product Overview
The Chint NC1-3210 operates on electromagnetic principles where an AC coil energization creates a magnetic field that pulls an armature, closing the main contacts to establish circuit continuity. The three-pole configuration allows simultaneous switching of three separate phases, making it ideal for three-phase motor control applications. The 240V coil rating ensures compatibility with standard control voltage supplies commonly found in industrial panels. Advanced contact design minimizes voltage drop across the contactor terminals, reducing heat generation and extending component lifespan in demanding environments.
This contactor features silver-cadmium alloy contacts that resist oxidation and maintain consistent contact resistance over thousands of operational cycles. The mechanical latching mechanism ensures positive contact closure without chatter, while the integral arc suppression design protects against contact erosion during load switching. The compact DIN-rail mountable form factor integrates seamlessly into control cabinets, and the standardized terminal configuration simplifies wiring in both retrofit and new installation scenarios.
Frequently Asked Questions
What is the difference between the NC1-3210 and other Chint contactor models?
The NC1-3210 designation indicates a 32A three-pole contactor with 240V coil voltage. Smaller models like NC1-1210 handle 12A loads, while larger NC1-6510 models support 65A. The 3210 model provides the optimal balance for medium-duty industrial applications, with sufficient current capacity for motors up to 7.5kW without oversizing the control cabinet.
Can I use this contactor for single-phase loads?
Yes, the three-pole design can control single-phase loads by using only one of the three pole pairs and leaving the others unused. However, this approach underutilizes the contactor. For single-phase applications, a single-pole NC1-1210 model would be more cost-effective and space-efficient.
How often should I replace the contacts on this contactor?
With proper installation and load matching, the NC1-3210 contacts typically last 500,000 electrical cycles under rated load conditions. In typical industrial applications with 10-20 switching cycles per day, this translates to 25,000-50,000 days of service life, or 68-136 years. Visual inspection during preventive maintenance should reveal any excessive pitting or wear requiring replacement.
Is this contactor suitable for DC load switching?
No, the NC1-3210 is specifically designed for AC operation. DC loads create different arc characteristics and require specialized DC contactors with enhanced arc suppression. Using an AC contactor on DC circuits will result in severe contact erosion and premature failure.
What happens if I apply 480V to a 240V coil?
Applying double the rated voltage will cause excessive current through the coil, generating extreme heat that damages the insulation and creates a fire hazard. Always verify coil voltage matches your control supply. If you require 480V operation, order the NC1-3210 model with 480V coil rating instead.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
