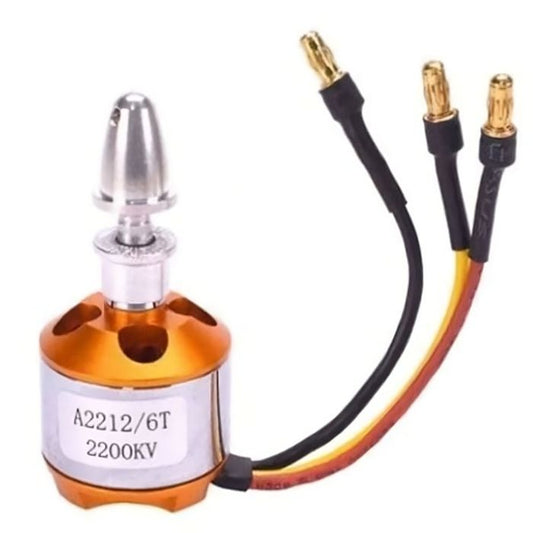

A2212 2200Kv Brushless Outrunner Motor Aircraft Quadcopter Helicopter
A2212 2200Kv Brushless Outrunner Motor Aircraft Quadcopter Helicopter
Shipping calculated at checkout.
High-performance brushless outrunner motor from Tech Depot India, Bengaluru. The A2212 2200KV is the go-to motor for DIY drones, quadcopters, RC aircraft, and helicopter builds - delivering reliable thrust, smooth operation, and excellent power-to-weight ratio.
Specifications
| Motor Model | A2212 |
| KV Rating | 2200KV (2200 RPM per volt) |
| Motor Type | Brushless Outrunner (BLDC) |
| No-Load Current | 0.5A @ 10V |
| Max Continuous Current | 12A |
| Max Efficiency Current | 4-10A (>=80% efficiency) |
| Operating Voltage | 7.4V-11.1V (2S-3S LiPo) |
| Recommended ESC | 30A Brushless ESC |
| Recommended Propeller | 8x4.5 or 9x4.7 (with 3S LiPo) |
| Shaft Diameter | 3.17mm |
| Motor Dimensions | 27.5mm (dia) x 30mm (length) |
| Weight | ~47g (motor only) |
| Number of Poles | 14 (outrunner configuration) |
| Mounting Holes | M3, 16mm x 19mm cross pattern |
| Max Thrust (approx.) | ~350g per motor (with suitable prop & 3S) |
| Origin | Original / Authentic |
Why Choose A2212 2200Kv Brushless Outrunner Motor Aircraft Quadcopter Helicopter?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of A2212 2200Kv Brushless Outrunner Motor Aircraft Quadcopter Helicopter
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
- 2200KV High-Speed Rating: Delivers high RPM ideal for lightweight quadcopter and fixed-wing builds using smaller propellers
- Brushless Outrunner Design: The outer bell rotates around the stator, producing higher torque at lower weight compared to inrunner motors
- Lightweight & Compact: Weighing only ~47g, it keeps your total aircraft weight low for better flight time and agility
- Efficient Neodymium Magnets: Strong rare-earth magnets ensure consistent magnetic flux and smooth, vibration-free rotation
- Precision-Balanced Rotor: Factory-balanced to minimize vibrations - critical for stable flight and clean FPV video
- High-Quality Copper Windings: Low-resistance windings maximize electrical efficiency and reduce heat buildup during flight
- Ball Bearing Shaft: Dual ball bearings provide smooth rotation, long service life, and reduced mechanical friction
- Universal Mounting Pattern: Standard M3 cross-hole pattern fits most 2212-class motor mounts on popular quadcopter frames (F450, F330, etc.)
- 3.17mm Shaft with Prop Adapter: Compatible with standard prop adapters and collet-style prop mounts included with most propeller kits
- Wide Voltage Compatibility: Runs efficiently on 2S (7.4V) and 3S (11.1V) LiPo batteries for flexible power options
- 100% authentic from trusted suppliers - no counterfeit or relabeled units
- Industry-standard motor for beginner to intermediate drone and RC aircraft builds
- Proven reliability across thousands of DIY quadcopter projects worldwide
- Excellent price-to-performance ratio for multi-rotor and fixed-wing applications
Perfect For
- DIY Quadcopter Build: Pair four A2212 motors with a 450mm frame, 30A ESCs, a flight controller (like KK2.1.5 or APM 2.8), and a 3S LiPo for a complete quad
- RC Fixed-Wing Aircraft: Power trainer planes, park flyers, and sport aircraft with excellent thrust-to-weight performance
- Hexacopter & Octocopter Platforms: Use six or eight motors for heavier payload-carrying multi-rotors for aerial photography or surveying
- FPV Racing Drone (Beginner): Build a budget-friendly FPV platform to learn racing fundamentals before upgrading to higher-spec motors
- RC Helicopter Tail Rotor: Suitable as a tail rotor drive motor in custom helicopter builds
Frequently Asked Questions
When will I receive my order?
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
