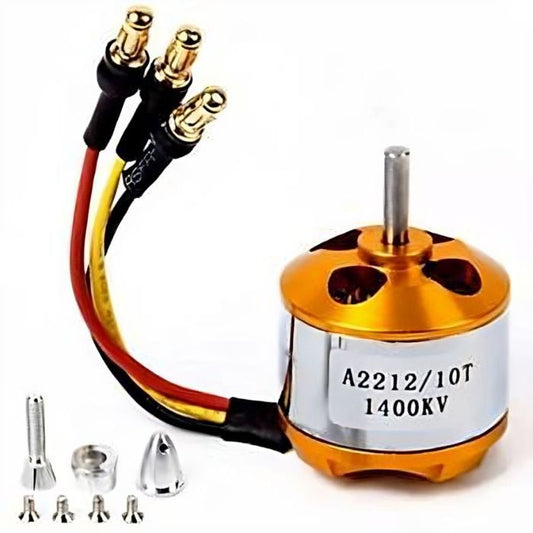

A2212 1400KV BLDC Brushless Motor
A2212 1400KV BLDC Brushless Motor
A2212 1400KV BLDC Brushless Motor
High-performance A2212 1400KV brushless DC (BLDC) outrunner motor, ideal for RC aircraft, quadcopters, multirotors, and drone builds. Delivers excellent thrust-to-weight ratio with efficient, reliable operation. Available at The Tech Depot, Bengaluru with fast shipping and full technical support.
Specifications
| Motor Model | A2212 |
| KV Rating | 1400KV (1400 RPM per Volt) |
| Motor Type | BLDC Brushless Outrunner |
| No-Load Current | 0.5A (at 10V) |
| Max Continuous Current | 12A |
| Max Efficiency Current | 4-10A (>=80%) |
| Operating Voltage | 7.4V-11.1V (2S-3S LiPo) |
| Recommended ESC | 30A Brushless ESC |
| Recommended Propeller | 8x4.5 to 10x4.5 inch |
| Max Thrust (approx.) | ~800g (with 3S LiPo & 8045 prop) |
| Shaft Diameter | 3.17mm |
| Stator Diameter | 22mm |
| Stator Length | 12mm |
| Motor Weight | ~47g (without accessories) |
| Number of Poles | 14 (outrunner configuration) |
| Mounting Hole Pattern | 16mm x 19mm cross-mount |
| Body Material | Aluminum alloy housing with steel shaft |
| Magnet Type | High-grade neodymium (NdFeB) |
| Winding | Copper wound stator |
| Bearing | Dual ball bearings for smooth operation |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- 1400KV Rating: Optimized speed constant for balanced thrust and efficiency on 2S-3S LiPo batteries, making it versatile for a wide range of propeller sizes.
- Outrunner Design: External rotor configuration generates high torque at lower RPM, allowing direct propeller mounting without a gearbox.
- Lightweight Aluminum Housing: CNC-machined aluminum alloy body dissipates heat efficiently while keeping overall weight under 50g.
- High-Grade Neodymium Magnets: Strong NdFeB magnets deliver consistent magnetic flux for smooth, powerful rotation and excellent throttle response.
- Precision Dual Ball Bearings: Ensures minimal friction, reduced vibration, and extended motor lifespan even under sustained loads.
- Efficient Copper Windings: Tightly wound copper stator minimizes electrical resistance and heat buildup for maximum power transfer.
- Universal Mounting Pattern: Standard 16mm x 19mm cross-mount bolt pattern fits most drone frames and motor mounts without adapters.
- Bullet Connector Leads: Pre-soldered 3.5mm bullet connectors (or bare leads) for quick, secure ESC connections.
- Balanced Rotor: Factory-balanced rotating bell reduces vibration, improving flight stability and extending component life.
- Wide Compatibility: Works seamlessly with standard 30A brushless ESCs, flight controllers (KK2, APM, Pixhawk, Betaflight FC), and common LiPo batteries.
Why Choose This Motor?
- 100% authentic from trusted suppliers - no clones or counterfeits
- Proven A2212 platform trusted by thousands of RC and drone builders worldwide
- Excellent thrust-to-weight ratio for quad, hex, and fixed-wing applications
- 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse across India
- Expert technical support to help you select the right ESC, propeller, and battery combination
- Competitively priced for individual makers and bulk educational/institutional orders
Project Ideas
- Quadcopter / Multirotor Build: Use four A2212 1400KV motors with 30A ESCs and a flight controller to build a capable photography or FPV racing drone.
- RC Fixed-Wing Aircraft: Mount on pusher or tractor-style RC planes for reliable, powerful flight with 9- or 10-inch propellers.
- Educational Drone Kit: Perfect for college and school robotics labs - teach students about BLDC motor theory,
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
