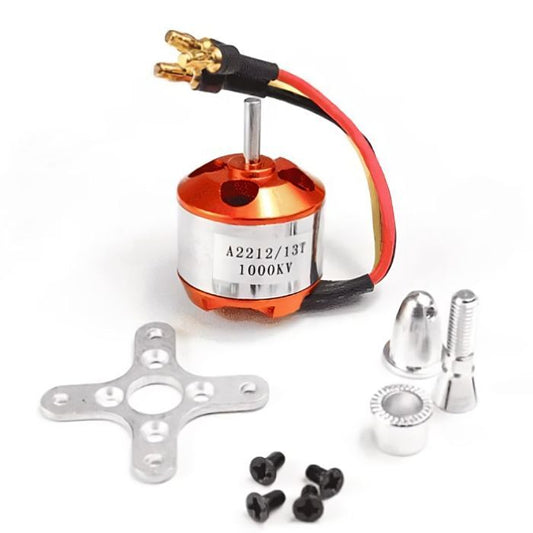

A2212 1000KV BLDC Motor for RC Drones and Quadcopters

Name: A2212 1000KV BLDC Motor for RC Drones and Quadcopters
Brand: The Tech Depot
SKU: TTD-17651
Price: 455.05 INR
Availability: InStock

Rs. 455.05

Rs. 455.05 Rs. 523.53

TTD-17651

🚚 Pan-India delivery

In stock

Shipping calculated at checkout.

Check availability on WhatsApp Confirm live stock and delivery time for your pincode before ordering.

High-performance brushless DC outrunner motor rated at 1000KV, purpose-built for RC drones, quadcopters, and fixed-wing aircraft. The A2212 delivers reliable thrust with excellent efficiency, making it the go-to motor for hobbyist and intermediate aerial builds.

Specifications

Motor Model	A2212
KV Rating	1000KV (1000 RPM per volt)
Motor Type	Brushless DC (BLDC) Outrunner
Stator Diameter	22 mm
Stator Length	12 mm
No-Load Current	0.5 A (at 10V)
Max Continuous Current	12 A
Max Efficiency Current	4-10 A (approx. 80% efficiency)
Operating Voltage	7.4V-11.1V (2S-3S LiPo)
Max Thrust (with matched prop)	~800 g (with 1045 propeller on 3S)
Recommended Propellers	8x4.5, 9x4.7, 10x4.5 (1045)
Recommended ESC	30A Brushless ESC
Shaft Diameter	3.17 mm
Motor Weight	~52 g
Mounting Hole Pattern	M3, 16 mm x 19 mm cross-mount
Number of Poles	14 (outrunner configuration)
Connector Type	3.5 mm banana plug / bare leads
Bearing Type	Dual ball bearing
Origin	Original / Authentic

Why Choose A2212 1000KV BLDC Motor for RC Drones and Quadcopters?

100% Authentic

GST Invoice - A GST invoice is included with every order.

Expert Support - Dedicated technical help on WhatsApp and email.

Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.

Trusted by Makers - Used by students, hobbyists and professionals nationwide.

Key Features of A2212 1000KV BLDC Motor for RC Drones and Quadcopters

1000KV Balanced Rating: Produces 1000 RPM per volt, striking an optimal balance between thrust and efficiency for medium-sized multi-rotor and fixed-wing platforms.
Outrunner BLDC Design: The outer-rotating bell generates higher torque at lower RPM, allowing direct-drive propeller mounting without a gearbox and reducing mechanical complexity.
Lightweight Construction: Weighing only ~52 g, the motor keeps all-up weight low - critical for maximizing flight time and payload capacity on quadcopters.
2S-3S LiPo Compatible: Operates reliably on 7.4V to 11.1V battery packs, giving you flexibility to tune performance by choosing your battery configuration.
High-Quality Magnets: Strong neodymium magnets in the rotor bell deliver consistent magnetic flux for smooth, vibration-free operation across the throttle range.
Dual Ball Bearings: Precision bearings on the shaft reduce friction, extend motor lifespan, and maintain concentricity for balanced propeller rotation.
Standard Mounting Pattern: M3 cross-mount holes at 16 mm x 19 mm spacing fit most F450, F550, and similar drone frames without adapters.
3.17 mm Shaft with Prop Adapter: Compatible with standard prop adapters and collet-style prop savers, making propeller changes quick and tool-minimal.
Efficient Heat Dissipation: Ventilated aluminum bell casing channels airflow across the stator windings during flight, preventing thermal throttling.
Broad ESC Compatibility: Works with any standard 30A brushless ESC using PWM, Oneshot, or similar protocols - no proprietary controller required.
Proven Reliability: The A2212 is one of the most widely used motors in the RC and drone community, trusted across thousands of builds worldwide for consistent performance.
Ideal Thrust-to-Weight Ratio: Generates up to ~800 g of thrust while weighing just 52 g, delivering a thrust-to-weight ratio that supports agile flight and reasonable payload.
Beginner-Friendly: Forgiving voltage range, standard mounting, and massive community documentation make this motor the perfect starting point for first-time drone builders.
Cost-Effective Multi-Rotor Builds: Affordable enough to purchase four or six units for a complete quadcopter or hexacopter without exceeding budget.
