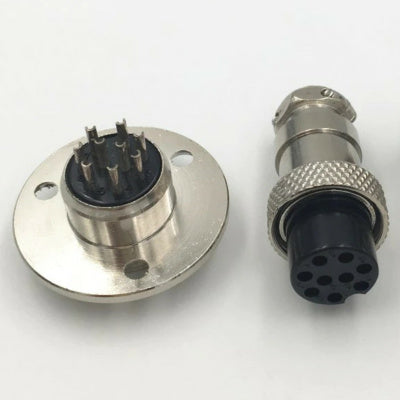

9 Pin GX16 Male Female Panel Mount Aviation Connector with 3 Hole Circular Flange
9 Pin GX16 Male Female Panel Mount Aviation Connector with 3 Hole Circular Flange
9 Pin GX16 Male Female Panel Mount Aviation Connector with 3 Hole Circular Flange
High-quality GX16-9 aviation connector set featuring a 9-pin male and female pair with a 3-hole circular flange for secure panel mounting. Ideal for multi-signal connections in robotics, CNC machines, audio equipment, and industrial control systems. Available at The Tech Depot, Bengaluru - trusted by makers and professionals. Fast shipping, 7-day warranty on manufacturing defects, expert technical support.
Specifications
| Connector Series | GX16 (16mm Aviation Connector) |
| Number of Pins | 9 Pin |
| Gender | Male & Female Pair (Plug + Socket) |
| Mounting Type | Panel Mount with 3-Hole Circular Flange |
| Shell Diameter | 16mm |
| Shell Material | Zinc Alloy (Nickel Plated) |
| Contact Material | Brass |
| Rated Voltage | AC 125V |
| Rated Current | 3A per pin |
| Insulation Resistance | >=500MOhm |
| Contact Resistance | <=3mOhm |
| Operating Temperature | -55 degreesC to +100 degreesC |
| Locking Mechanism | Bayonet-style threaded coupling |
| IP Rating | IP55 (when mated) |
| Mating Cycles | >=500 cycles |
| Wire Gauge Compatibility | AWG 22-26 |
| Flange Mounting Holes | 3 holes, evenly spaced on circular flange |
| Type | Circular Aviation Connector |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- 9-Pin Multi-Signal Configuration: Supports up to 9 independent signal or low-power connections in a single compact connector
- 3-Hole Circular Flange Mount: Provides rock-solid panel installation with screw-down flange for vibration-resistant applications
- The Tech Depot Bayonet Locking: Threaded coupling ensures a secure, accidental-disconnect-proof connection
- Durable Metal Shell: Nickel-plated zinc alloy construction offers excellent EMI shielding and corrosion resistance
- IP55 Protection When Mated: Dust and splash-water resistant for semi-outdoor and industrial environments
- Solder-Type Contacts: Brass pin contacts allow reliable and easy soldering of wires
- Wide Temperature Range: Operates reliably from -55 degreesC to +100 degreesC for demanding environments
- Complete Male & Female Set: Includes both plug and socket - no need to purchase separately
Why Choose This?
- 100% authentic from trusted suppliers - no counterfeit or substandard parts
- 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse to most of India
- Expert technical support included for wiring guidance and integration help
- Industry-standard GX16 form factor - widely compatible and easy to source replacements
- Priced at just Rs.199 - exceptional value for a complete male-female connector set
Project Ideas
- CNC & 3D Printer Wiring: Use the 9-pin connector to create a clean, detachable connection for stepper motors, endstops, and sensor wiring on your CNC router or 3D printer.
- Robotics & Drones: Consolidate multiple signal lines (encoders, sensors, motor control) into a single rugged connector for modular robot arm or drone gimbal assemblies.
- Custom Audio & Lighting Equipment: Route multi-channel audio signals or DMX lighting control through a professional panel-mount connector for stage and studio setups.
- Industrial Control Panels: Build professional enclosures with secure, labeled panel-mount connectors for PLC I/O, relay signals, and communication lines.
- Ham Radio & Communication Equipment: Create detachable cable assemblies for multi-pin radio accessories, microphone connections, and transceiver interfaces.
- Learning & Education: Great for electronics students learning about connector types, panel wiring, and building professional-grade enclosures for lab projects.
Wiring & Installation Guide
- Step 1: Drill a 16mm mounting hole in your panel or enclosure for the socket (female) connector.
- Step 2:
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
