7x9 CM Single Side Copper Dotted PCB Board
7x9 CM Single Side Copper Dotted PCB Board
Shipping calculated at checkout.
Looking to buy 7x9 CM Single Side Copper Dotted PCB Board at the best price in India? Tech Depot India offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.

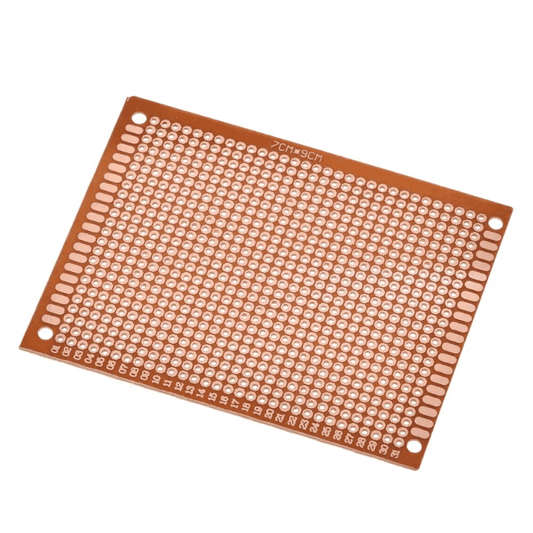

Build and prototype your electronic circuits with confidence using this 7x9 CM Single Side Copper Dotted PCB Board from Tech Depot India, Bengaluru. This universal prototyping board features a grid of pre-drilled, copper-plated through-holes on a single side, making it ideal for soldering components and creating custom circuit layouts. The 70mm x 90mm form factor provides ample space for small-to-medium complexity projects while remaining compact enough for portable and embedded applications. Constructed from FR-4 grade fiberglass laminate with a standard 1.6mm thickness, this board delivers excellent mechanical strength, heat resistance, and electrical insulation. Whether you're a student learning to solder, a hobbyist building a sensor module, or an engineer validating a design before committing to a custom PCB, this dotted board is an essential workbench staple.
Specifications
| Board Dimensions | 7 x 9 cm (70 x 90 mm) |
| Board Type | Single Side Copper Dotted / Perf Board |
| Material | FR-4 Fiberglass Laminate |
| Board Thickness | 1.6 mm (standard) |
| Copper Layer | Single-sided, individual copper pads |
| Hole Pitch | 2.54 mm (0.1 inch / standard DIP pitch) |
| Hole Diameter | ~1.0 mm (suitable for most through-hole components) |
| Approximate Hole Count | 26 x 34 (~884 holes) |
| Copper Weight | 1 oz (35 um) |
| Solder Pad Shape | Round, individually isolated (dot pattern) |
| Operating Temperature | -40 degreesC to +130 degreesC |
| Dielectric Strength | >= 50 kV/mm (FR-4 rated) |
| Color | Green substrate with copper-toned pads |
| Weight | ~18 g |
| RoHS Compliant | Yes |
| Category | Electronics Component / Prototyping |
| Origin | Original / Authentic |
Why Choose 7x9 CM Single Side Copper Dotted PCB Board?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of 7x9 CM Single Side Copper Dotted PCB Board
- Standard 2.54 mm Pitch: Perfectly spaced holes accept all standard DIP ICs, headers, resistors, capacitors, transistors, and other through-hole components without modification.
- Individually Isolated Copper Pads: Each hole has its own separate copper pad, giving you complete freedom to design custom trace routes using solder bridges or jumper wires.
- FR-4 Grade Fiberglass Construction: Industry-standard laminate provides superior mechanical rigidity, excellent thermal endurance during soldering, and reliable electrical insulation.
- Generous 7x9 cm Working Area: Approximately 884 usable holes offer enough real estate for moderately complex circuits including microcontroller breakouts, amplifier stages, and sensor interfaces.
- Single-Sided Design: Component placement on the non-copper side with soldering on the copper side simplifies assembly and makes visual inspection and debugging straightforward.
- Easy to Cut and Shape: The FR-4 board can be scored and snapped or cut with a hacksaw to create smaller custom-sized boards for tight enclosures.
- Lead-Free & RoHS Compliant: Manufactured to meet environmental safety standards, suitable for educational institutions and professional environments alike.
- Lightweight and Compact: At just ~18 grams, the board adds minimal weight to portable or wearable project builds.
Product Description
The 7x9 CM Single Side Copper Dotted PCB Board is a universal prototyping platform that bridges the gap between breadboard experimentation and professional custom PCB manufacturing. Unlike breadboards where connections can be loose and unreliable, soldered perfboard circuits offer permanent, vibration-resistant connections that are suitable for real-world deployment.
How It Works
The board consists of a rigid FR-4 fiberglass substrate with a matrix of holes drilled at a standard 2.54 mm (100 mil) pitch. On one side, each hole is surrounded by an individual circular copper pad. You insert component leads from the non-copper side, flip the board, and solder each lead to its corresponding copper pad. Circuit connections between pads are made by running solder bridges between adjacent pads or by using short lengths of wire on the copper side.
Build Quality & Material
FR-4 is the global standard for PCB substrate material. It is a composite of woven fiberglass cloth and epoxy resin that delivers a unique combination of properties: high mechanical strength (flexural strength ~415 MPa), excellent electrical
Frequently Asked Questions
Is technical support available?
Yes, responsive support via email and WhatsApp for setup, troubleshooting, and application guidance.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Customer Support
Email: techdepotindia@gmail.com
WhatsApp: Available for setup and troubleshooting help
Order your 7x9 CM Single Side Copper Dotted PCB Board today and start building your next project.
