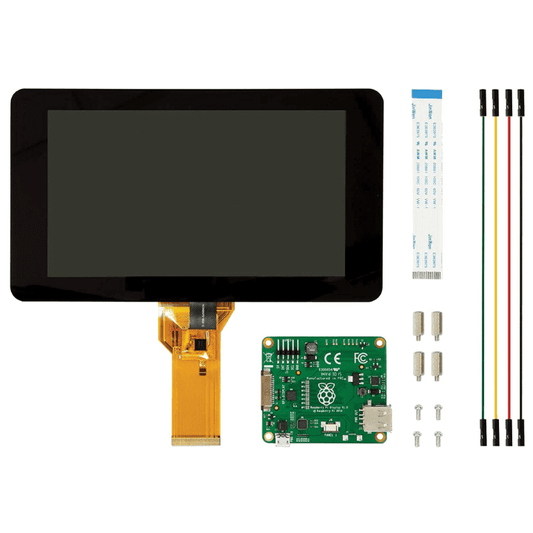

7inch Official Raspberry Pi display
7inch Official Raspberry Pi display
Shipping calculated at checkout.
Specifications
| Display Size | 7 inches (diagonal), 194mm x 110mm active area |
| Resolution | 800 x 480 pixels |
| Touch | 10-point capacitive multi-touch |
| Interface | DSI (Display Serial Interface) ribbon cable |
| Display Type | IPS LCD with LED backlight |
| Viewing Angle | Wide angle (~70 degrees) |
| Power Supply | Powered via Pi GPIO or separate micro-USB (5V) |
| Frame Rate | 60 fps |
| Compatibility | Raspberry Pi 5, 4B, 3B+, 3B, 3A+, 2B, B+, A+ (all 40-pin models) |
| Adapter Board | Included - converts DSI signal and manages touch I2C |
| Dimensions (Overall) | ~194mm x 110mm x 20mm (display + adapter board) |
| Mounting | 4x M2.5 standoffs for mounting Pi directly to rear of display |
| OS Support | Raspberry Pi OS (plug-and-play), Ubuntu, and other Linux distros |
| Origin | Official Raspberry Pi Foundation product - 100% authentic |
- Display Size: 7 inches (diagonal), 194mm x 110mm active area
- Resolution: 800 x 480 pixels
- Touch: 10-point capacitive multi-touch
- Interface: DSI (Display Serial Interface) ribbon cable
- Display Type: IPS LCD with LED backlight
- Viewing Angle: Wide angle (~70 degrees)
- Power Supply: Powered via Pi GPIO or separate micro-USB (5V)
- Frame Rate: 60 fps
Why Choose 7inch Official Raspberry Pi display?
100% Authentic
GST Invoice - A GST invoice is included with every order.
Expert Support - Dedicated technical help on WhatsApp and email.
Pan-India Delivery - Shipped across Bengaluru, Delhi NCR, Hyderabad and all of India.
Trusted by Makers - Used by students, hobbyists and professionals nationwide.
Key Features of 7inch Official Raspberry Pi display
- Truly official: Designed and sold by the Raspberry Pi Foundation - guaranteed driver support, firmware updates, and long-term compatibility
- Plug-and-play on Raspberry Pi OS: Connect the DSI ribbon cable and power jumper wires, boot up, and the display works immediately - no driver installation needed
- Capacitive multi-touch: Smooth, responsive 10-point touch with gesture support - no stylus required
- Clean DSI connection: Uses the dedicated display port on the Pi, leaving the HDMI port free for a second monitor
- Compact all-in-one form factor: Mount your Pi directly to the back of the display using included standoffs for a self-contained unit
- Flexible power options: Power the display from the Pi's GPIO header or independently via micro-USB
- Ideal for enclosures: Flat, slim profile fits perfectly into custom cases, kiosks, and panel-mount housings
- 800x480 IPS Panel: Crisp text and vivid colors with consistent brightness across wide viewing angles - ideal for dashboards, GUIs, and media playback
- DSI Interface: High-bandwidth serial connection delivers smooth 60fps video without consuming USB or HDMI resources
- On-board Adapter PCB: The included controller board handles DSI-to-display conversion and touch digitizer communication over I2C - no external controllers needed
- Software virtual keyboard: Raspberry Pi OS includes an on-screen keyboard (Florence/Squeekboard) so you can use the display as a complete input device
- Screen rotation support: Rotate display orientation 0 degrees, 90 degrees, 180 degrees, or 270 degrees via config.txt or display settings
- Backlight control: Adjust or turn off backlight brightness programmatically via sysfs for power management
Perfect For
- Raspberry Pi Tablet: Combine with a Pi 4/5, battery HAT, and 3D-printed case to build a fully functional portable Linux tablet
- Smart Home Control Panel: Wall-mount the display running Home Assistant, openHAB, or a custom dashboard to control lights, thermostats, cameras, and appliances
- Interactive Kiosk: Deploy as a self-service information terminal, digital menu board, visitor check-in station, or point-of-sale display
- Retro Gaming Console: Pair with RetroPie or Lakka for a touchscreen-enabled portable retro gaming station
- 3D Printer / CNC Controller: Use as a touch interface for OctoPrint or CNC control software, replacing clunky button-based LCDs
- Car Dashboard / Head
- Single-board computing projects
- Home automation
- Iot gateways
- Media centers and robotics
- Student and hobbyist projects
7" Official Raspberry Pi Touchscreen Display
The official 7-inch touchscreen display from the Raspberry Pi Foundation - the definitive display solution for your Raspberry Pi projects. Featuring 800x480 resolution, 10-point capacitive multi-touch, and a simple DSI ribbon cable connection, this display transforms your Pi into a fully interactive tablet, kiosk, or embedded control panel. Available at Tech Depot India, Bengaluru with fast shipping and full warranty.
